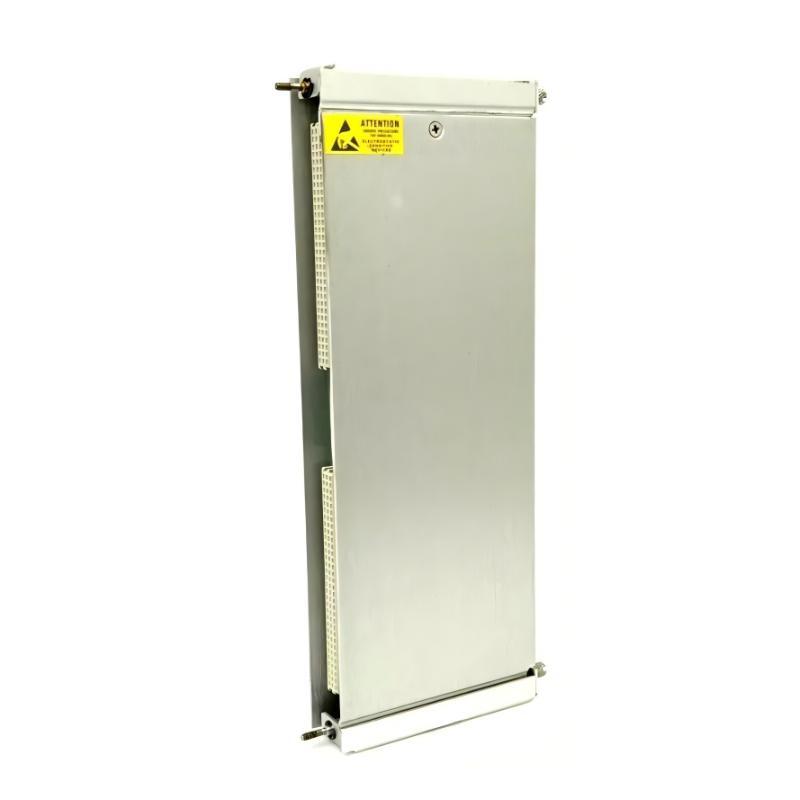

Bently Nevada 3500/94 147663-01 VGA Display I/O Module

Applications

The Bently Nevada 3500/94 147663-01 VGA Display I/O Module is designed to provide visual display and input/output functionality for critical machinery monitoring systems. Typical applications include:

• Displaying real-time machinery condition and alarm information

• Integrating with Bently Nevada 3500 series monitoring systems

• Enabling operator interaction and system configuration

• Supporting condition-based maintenance and fault diagnostics

• Facilitating modular installation for industrial machinery monitoring

Advantages

• Industrial-grade construction suitable for harsh environments

• Combines VGA display with input/output functionality

• Seamless integration with Bently Nevada 3500 monitoring systems

• Supports redundant and fail-safe system configurations

• Compact and modular design for easy installation

• Lightweight yet durable for continuous industrial operation

• Enhances operational awareness and diagnostics

Technical FAQs

1. What is the primary function of this module?
   It provides VGA display and input/output capability for machinery monitoring.

2. What are the physical dimensions?
   241.3 × 24.4 × 99.1 mm.

3. What is the weight?
   0.34 kg.

4. Is it suitable for industrial environments?
   Yes, built for rugged machinery monitoring conditions.

5. Can it be used in redundant systems?
   Yes, supports fail-safe and redundant configurations.

6. Is it compatible with Bently Nevada 3500 modules?
   Yes, fully compatible with the 3500 series.

7. Does it provide real-time display of machinery data?
   Yes, it shows condition and alarm information.

8. Does it simplify integration into system racks?
   Yes, modular design allows easy installation in 3500/05 racks.

9. Is it suitable for continuous operation?
   Yes, engineered for long-term industrial use.

10. Can it enhance operational awareness?
    Yes, by providing clear visual feedback and system interaction.
