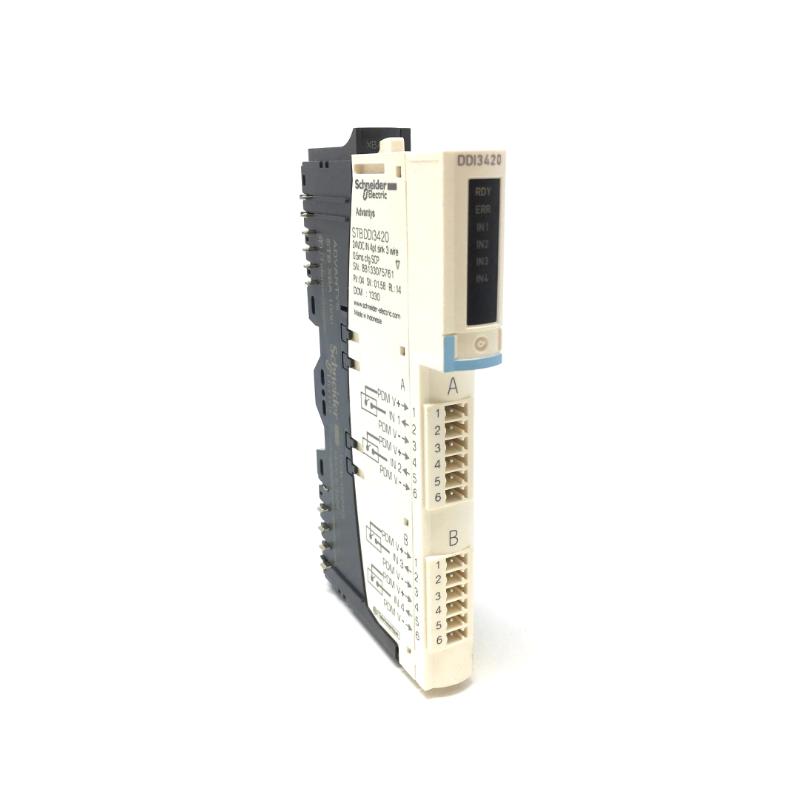

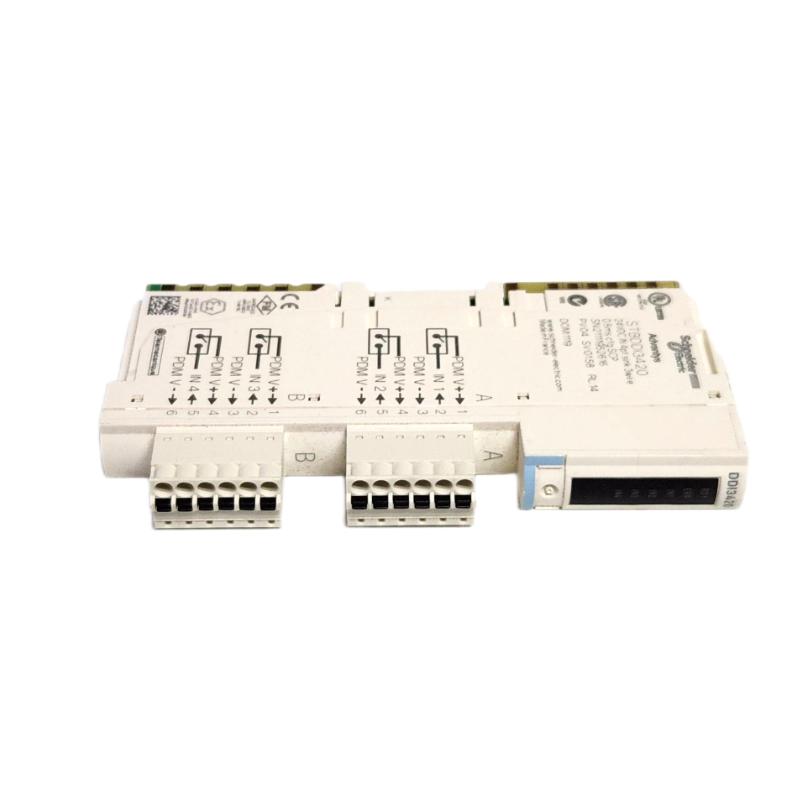

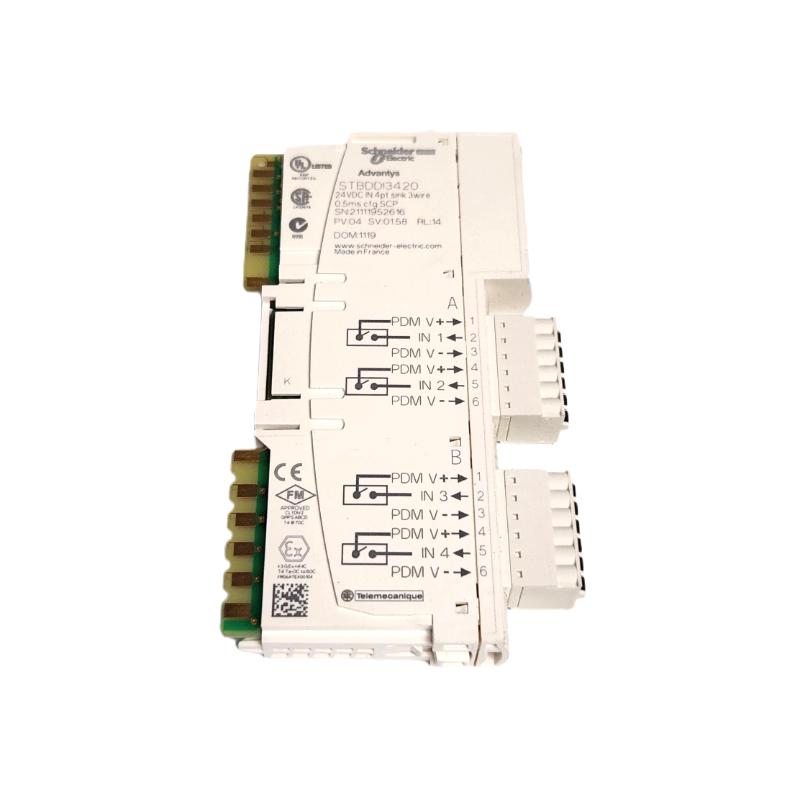

The Schneider STBDDI3420 is a Modicon digital input module designed for use in distributed automation systems within the Modicon STB range. This module provides a reliable solution for digital input control, enabling real-time monitoring and management of digital signals in various industrial applications. The STBDDI3420 is suitable for demanding environments, offering high accuracy, fast response times, and flexibility in handling discrete signals. Whether for on/off switches, sensors, or other digital devices, the STBDDI3420 ensures seamless integration with Schneider Electric’s PLCs, I/O modules, and control systems. It is ideal for industries such as automotive, chemical processing, food and beverage, manufacturing, and energy.

Technical Specifications

Specification	Details
Model	STBDDI3420
Module Type	Digital Input Module
Number of Inputs	16 Digital Inputs
Input Type	Discrete (ON/OFF)
Input Voltage Range	24V DC
Input Current	8mA (per input)
Input Logic	Sink/Source
Response Time	10 ms (typical)
Dimensions	5.9 in x 4.2 in x 2.8 in (150 mm x 107 mm x 71 mm)
Weight	0.45 kg (0.99 lbs)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Certifications	UL, CE, RoHS

Recommended Related Models

For a comprehensive and scalable automation solution, consider integrating the STBDDI3420 with the following Schneider Electric products:

Modicon STBPSY1200 Power Supply: This power supply module ensures stable and reliable power for all connected STB I/O modules, including the STBDDI3420.
Modicon STB I/O Modules: A wide range of I/O modules that can be added to expand your system, including analog and digital input/output modules for more complex control tasks.
Modicon X80 I/O Modules: These high-performance modular I/O solutions can be used for additional digital or analog input/output needs in larger or more complex applications.

Popular Schneider Models

Modicon M580 Ethernet PLC: A high-performance Ethernet-based PLC, perfect for integrating with the STBDDI3420 in large, distributed control systems.
Magelis GTU HMI: An intuitive graphical touch screen interface, which can be easily connected to the STBDDI3420 for control and monitoring of automation systems.
Modicon TM3 I/O Modules: These flexible modular I/O systems integrate seamlessly with the STBDDI3420 to expand I/O capabilities in industrial control systems.

Applications

The Schneider STBDDI3420 digital input module is perfect for a wide range of applications requiring high-performance digital input control, including:

Industrial Automation: Control conveyor systems, robotics, assembly lines, and packaging machinery in industries such as automotive, electronics, and consumer goods.
Process Control: Monitor and control on/off signals from sensors, limit switches, and other devices in chemical, pharmaceutical, and food & beverage processes.
Building Automation: Manage HVAC, lighting, security, and energy management systems in commercial and industrial buildings, contributing to efficiency and operational savings.
Energy Management: Use for monitoring and controlling on/off signals for devices in smart grids, renewable energy, and industrial power management systems.
Water Treatment: The STBDDI3420 is ideal for monitoring digital input signals from water pumps, flow switches, and pressure sensors in water treatment and wastewater management.

Applications

The Schneider STBDDI3420 digital input module is perfect for a wide range of applications requiring high-performance digital input control, including:

Industrial Automation: Control conveyor systems, robotics, assembly lines, and packaging machinery in industries such as automotive, electronics, and consumer goods.
Process Control: Monitor and control on/off signals from sensors, limit switches, and other devices in chemical, pharmaceutical, and food & beverage processes.
Building Automation: Manage HVAC, lighting, security, and energy management systems in commercial and industrial buildings, contributing to efficiency and operational savings.
Energy Management: Use for monitoring and controlling on/off signals for devices in smart grids, renewable energy, and industrial power management systems.
Water Treatment: The STBDDI3420 is ideal for monitoring digital input signals from water pumps, flow switches, and pressure sensors in water treatment and wastewater management.

Technical FAQs

How many digital inputs does the STBDDI3420 have?
- The STBDDI3420 offers 16 digital input channels, making it ideal for applications requiring multiple discrete signal monitoring.
What is the input voltage range for the STBDDI3420?
- The STBDDI3420 operates with a 24V DC input voltage for all connected sensors and devices.
What is the response time of the STBDDI3420?
- The module has a typical response time of 10 ms, ensuring fast reaction to digital input changes.
Can the STBDDI3420 be used in high-temperature environments?
- Yes, the STBDDI3420 is suitable for use in environments with temperatures ranging from -20°C to 60°C (-4°F to 140°F).
What input logic does the STBDDI3420 support?
- The module supports both sink and source input logic, offering flexibility for integration with a variety of devices and sensors.
How does the STBDDI3420 reduce power consumption?
- The module consumes only 8mA per input, ensuring energy efficiency while maintaining high input performance.
Can I use the STBDDI3420 for monitoring sensors in a building automation system?
- Yes, the STBDDI3420 is ideal for monitoring digital signals from devices such as motion detectors, limit switches, and flow meters in HVAC and energy management systems.
What certifications does the STBDDI3420 have?
- The STBDDI3420 is certified with UL, CE, and RoHS, ensuring the highest standards of safety and quality.
Is the STBDDI3420 compatible with other Modicon STB modules?
- Yes, the STBDDI3420 integrates seamlessly with other Modicon STB I/O modules, providing a scalable and flexible automation solution.
What types of applications benefit from using the STBDDI3420?
- The STBDDI3420 is ideal for applications in industrial automation, process control, building automation, energy management, and water treatment that require fast and reliable digital input monitoring.
