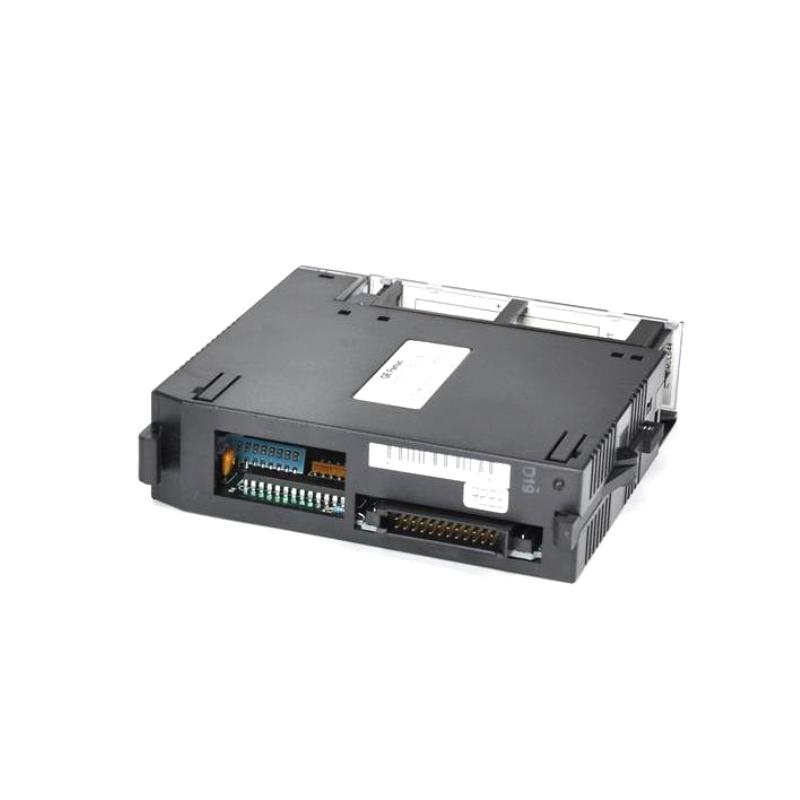

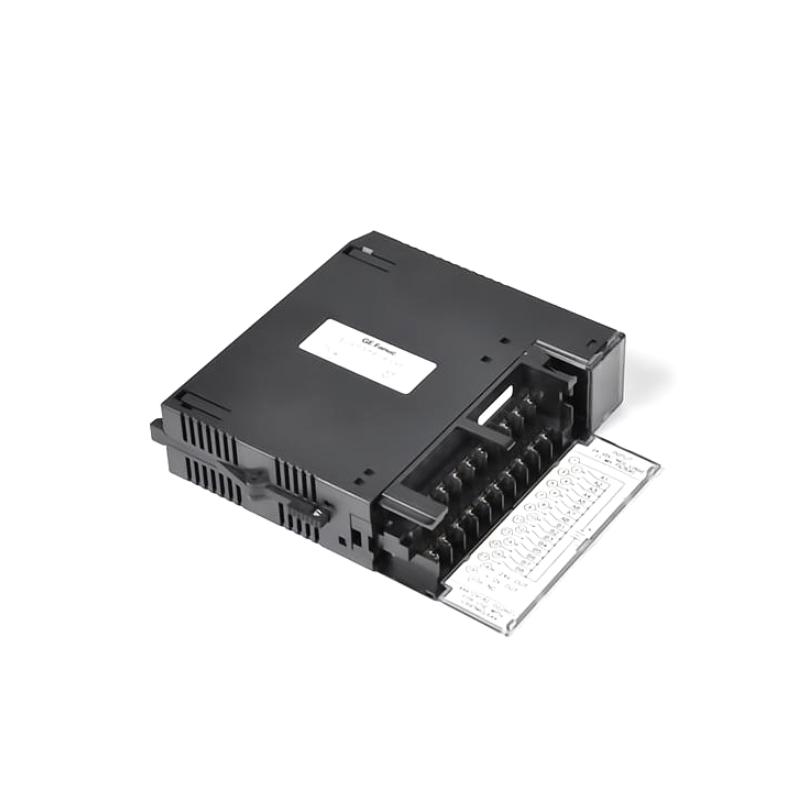

The GE IC693MDL644 is a digital input module developed for GE Fanuc Series 90-30 PLC systems, delivering dependable signal acquisition for industrial automation tasks. It is designed to capture and communicate discrete input states from field devices such as switches, limit sensors, and push buttons. With its industrial-grade input conditioning and robust build quality, this module helps maintain accurate logic execution and system responsiveness in demanding operational environments.

Technical Specifications

Specification	Description
Module Type	Digital Input Module
Input Points	16 discrete inputs
Nominal Input Voltage	24 V DC
Input Configuration	Sinking
Electrical Isolation	Group-isolated inputs
Platform	GE Fanuc Series 90-30 PLC
Mounting	Rack-mounted I/O module
Operating Environment	Industrial control cabinets

Dimensions (L×W×H): 140 × 38 × 102 mm
Weight: 0.34 kg

Recommended Related Models

GE IC693MDL643 – Standard digital input module
GE IC693MDL640 – Alternate input configuration module
GE IC693MDL330 – Fast response digital input module
GE IC693DSM314 – High-density discrete output module

Popular GE Series 90-30 Models

GE IC693CPU364 – Mid-range PLC CPU
GE IC693CPU366 – High-performance CPU
GE IC693CMM302 – Communication module for protocol integration
GE IC693DNS201 – DeviceNet slave interface module

Applications

The IC693MDL644 is suitable for a range of industrial automation scenarios, including:

Discrete input monitoring on production lines
Sensor status acquisition in assembly systems
Machine interlock and safety feedback
Process control systems requiring numerous input points
PLC system expansions and retrofits

By consistently transferring field status data to the processor, it supports accurate decision-making and reduces unexpected downtime.

Advantages

Stable and noise-resistant digital input detection
Designed for continuous operation in industrial settings
Compact footprint improves panel layout efficiency
Seamless integration with Series 90-30 PLC racks
Effective choice for both new installations and system upgrades

Technical FAQs

What type of signals does the IC693MDL644 handle?
It handles 24 V DC discrete input signals from sensors and switches.
How many input points does it support?
This module supports 16 discrete digital input points.
Is it compatible with other Series 90-30 CPU modules?
Yes, it integrates with all standard Series 90-30 CPU models.
Can it operate continuously in industrial environments?
Yes, it is built for stable, 24/7 operation.
Does the module require external protection devices?
External fusing is recommended per control panel wiring practices.
Can it be installed in existing PLC systems?
Yes, it fits standard Series 90-30 racks and is commonly used in retrofits.
Does it support hot-swapping?
No, the system should be powered down before module installation or removal.
Is special configuration software needed?
No, standard GE Series 90-30 programming tools are used.
How does it perform in electrically noisy installations?
The industrial-grade input conditioning helps maintain stable signal acquisition.
Can it replace other MDL-series input modules?
In many applications, yes — compatibility checks should be done to confirm.
