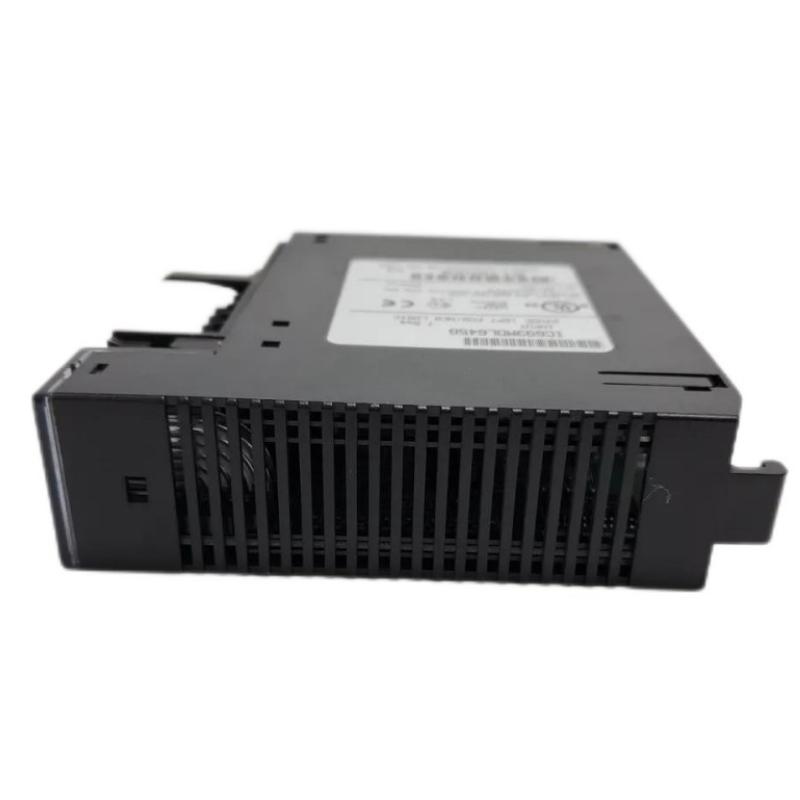

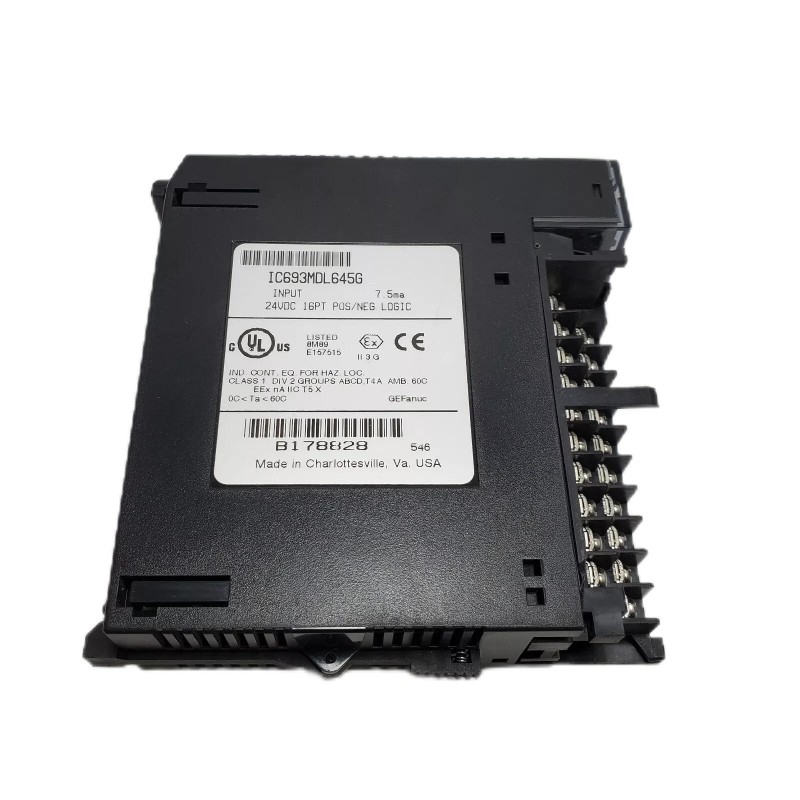

IC693MDL645 (2) IC693MDL645 (4) IC693MDL645 (1) IC693MDL645 (3)

The GE IC693MDL645 is a robust digital input module engineered for GE Fanuc Series 90-30 PLC systems. It captures discrete field signals with consistent accuracy, ensuring that the PLC control logic reflects real-time device statuses from sensors, switches, and safety devices. Built for industrial use, this module delivers dependable performance across demanding automation applications where signal integrity and long-term reliability matter.

Technical Specifications

Specification	Description
Module Type	Digital Input Module
Input Points	16 discrete inputs
Nominal Input Voltage	24 V DC
Input Configuration	Sinking
Isolation	Group-isolated inputs
PLC Platform	GE Fanuc Series 90-30
Mounting	Rack/baseplate-mounted I/O module
Operating Environment	Industrial control cabinets

Dimensions (L×W×H): 140 × 38 × 102 mm
Weight: 0.35 kg

Recommended Related Models

GE IC693MDL640 – Standard discrete input module
GE IC693MDL643 – Digital input module with stable signal handling
GE IC693MDL644 – Industrial-grade digital input module
GE IC693DSM314 – High-density discrete output module

Popular GE Series 90-30 Models

GE IC693CPU364 – Mid-range PLC CPU module
GE IC693CPU366 – High-performance CPU module
GE IC693CMM311 – Communication interface module
GE IC693DNS201 – DeviceNet slave communication module

Applications

The IC693MDL645 is well suited for a broad range of industrial automation scenarios, including:

Discrete signal monitoring on manufacturing lines
Machine interlock and safety circuit monitoring
Sensor status acquisition in packaging and assembly systems
Retrofit and expansion of existing Series 90-30 installations
Process control systems requiring precise discrete input handling

Its reliable input acquisition contributes to accurate control decisions and improved system uptime.

Advantages

Consistent detection of discrete digital input signals
Industrial-grade design suitable for harsh environments
Compact form factor for efficient rack layout
Seamless compatibility with Series 90-30 PLC infrastructure
Proven reliability for long-term industrial operation

Technical FAQs

What type of inputs does the IC693MDL645 handle?
It processes 24 V DC discrete input signals from field devices.
How many input channels are provided?
The module offers 16 discrete digital input points.
Is it compatible with other Series 90-30 CPU modules?
Yes, it integrates with standard Series 90-30 CPUs.
Does the module support hot swapping?
No, the system should be powered down prior to installation or removal.
Can it work with typical industrial sensors?
Yes, it supports proximity sensors, limit switches, and similar devices.
Is special configuration software needed?
No, standard GE Fanuc PLC programming tools are sufficient.
Is the module suitable for continuous operation?
Yes, it is designed for reliable, long-term use.
Does it require additional cooling?
No special cooling is required; natural convection is adequate.
Can it replace other MDL-series input modules?
In many applications, yes—compatibility should be confirmed with electrical requirements.
Where is this module typically installed?
Inside industrial control cabinets on Series 90-30 I/O racks.
