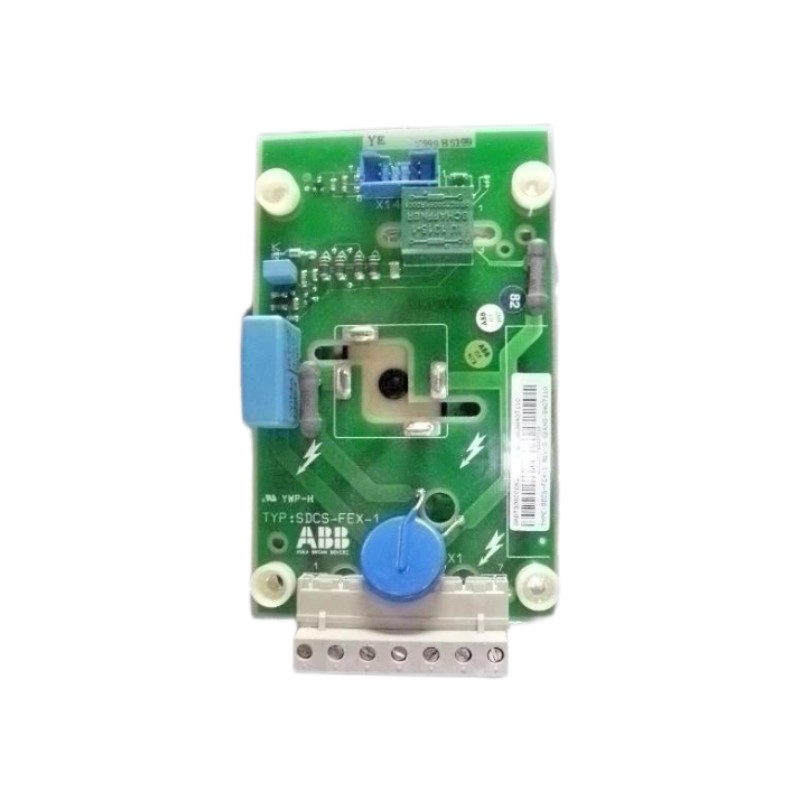

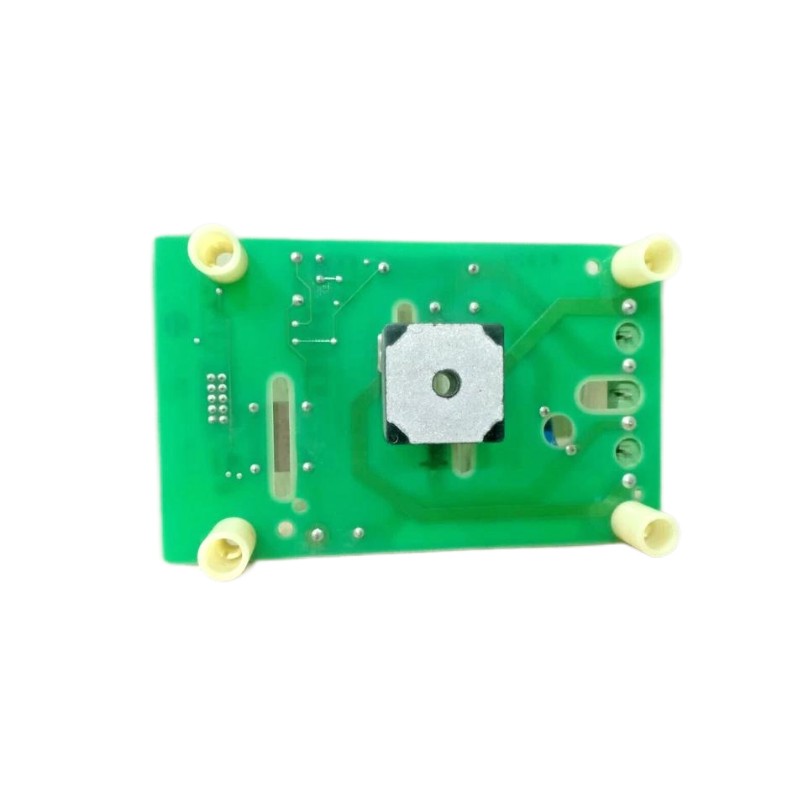

The ABB SDCS-FEX-1 Field Excitation Board Module is a precision excitation control board designed for ABB DC drive and distributed control platforms. It plays a critical role in regulating the field excitation current of synchronous machines, ensuring stable magnetic field generation and optimal operating performance of motors and generators.
Within industrial drive systems, proper field excitation control is essential for maintaining stable torque, voltage regulation, and efficient energy conversion. The SDCS-FEX-1 module provides accurate control of excitation current, helping maintain consistent machine performance while protecting equipment from abnormal operating conditions.
Designed for integration with ABB drive architectures such as the DCS550 control system, this compact board supports reliable industrial automation environments. Its lightweight design and modular structure allow easy installation inside control cabinets and drive systems, making it ideal for modern power control and automation applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-FEX-1 |
| Part Number | 3ADT306000R1 |
| Manufacturer | ABB |
| Module Type | Field Excitation Control Board |
| System Compatibility | ABB DCS550 Distributed Control System |
| Operating Voltage | 24 V DC |
| Function | Excitation current regulation for synchronous motors and generators |
| Control Capability | Stable rotor magnetic field control |
| Installation | Control cabinet / drive control module |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −25°C to +70°C |
| Dimensions (L × W × H) | 83 × 44 × 133 mm |
| Weight | 0.10 kg |
The module’s compact dimensions and lightweight design simplify installation while maintaining reliable performance in industrial automation environments.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-FEX-2 | Field Excitation Control Module |
| SDCS-FEP-1 | Field Excitation Protection Module |
| SDCS-CON-2A | Drive Control Board |
| SDCS-POW-1 | Power Supply Module |
| SDCS-DSL-4 | Drive Communication Module |
These modules are frequently integrated within ABB drive architectures to create a complete excitation control and protection system.
Popular ABB Industrial Automation Modules
| Model | Module Type |
|---|---|
| PM783F | Processor Controller Module |
| PM901F | CPU Controller Module |
| RMIO-01C | Motor Interface Board |
| RUSB-02 | Communication Adapter |
| CI854A | PROFIBUS Communication Interface |
These ABB modules are widely used in distributed control systems, industrial motor drives, and large-scale process automation.
