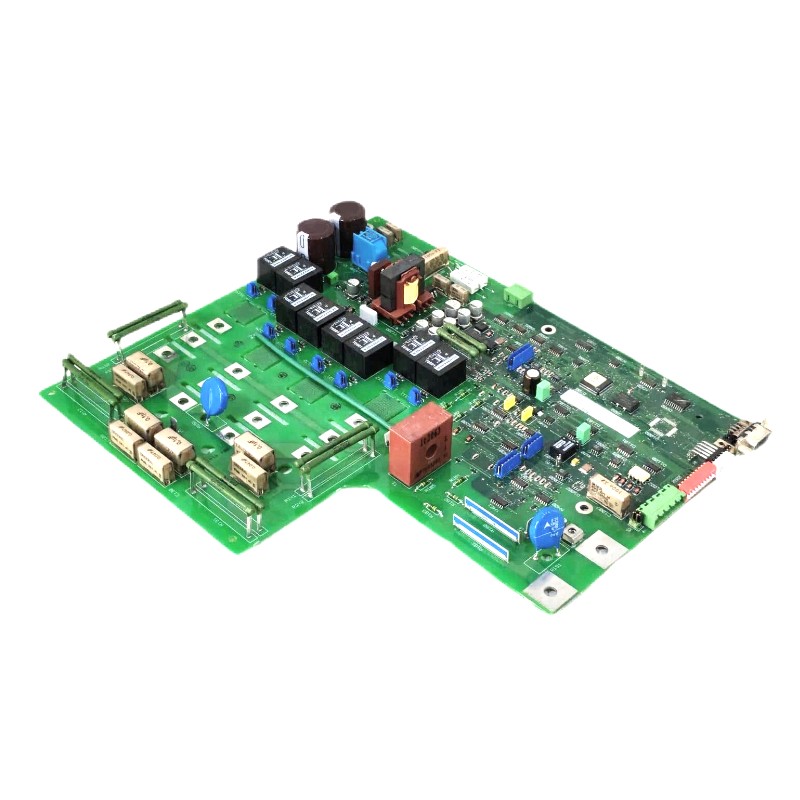

The ABB SDCS-FEX-31 Field Exciter Control Board Module is a critical component designed for industrial DC drive systems, particularly within the ABB DCS500 thyristor drive platform. This module is responsible for controlling and regulating the field excitation circuit of DC motors, ensuring stable magnetic field generation and accurate torque control during operation.
Field excitation control is essential for maintaining consistent motor performance in heavy-duty applications. The SDCS-FEX-31 module manages field voltage and current with high precision, enabling improved speed stability, enhanced efficiency, and reduced electrical stress on the motor system. It is commonly used in three-phase field converter configurations integrated with DCS500 systems.
With its modular PCB architecture, the board integrates seamlessly with other SDCS control modules such as SDCS-CON and SDCS-POW boards, forming a reliable drive control structure. Its rugged design ensures dependable operation in demanding industrial environments including steel production, mining systems, and large-scale manufacturing plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-FEX-31 |
| Manufacturer | ABB |
| Module Type | Field Exciter Control Board |
| Series | ABB SDCS Drive Control System |
| Primary Function | Field excitation control for DC motors |
| Compatible Systems | ABB DCS500 DC Drive Systems |
| Field Excitation Type | Controlled rectifier field converter |
| Communication Interface | SDCS internal bus communication |
| Control Technology | Analog and digital field current regulation |
| Power Supply | Typically supplied by drive control electronics |
| Installation Method | Plug-in PCB board inside drive cabinet |
| Cooling Method | Air-cooled through drive cabinet ventilation |
| Operating Temperature | –10°C to +60°C |
| Protection Features | Field loss detection, overcurrent monitoring |
| Dimensions (L × W × H) | 260 × 180 × 40 mm |
| Weight | 0.85 kg |
The board’s compact structure and modular installation simplify system maintenance and allow quick replacement during servicing.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-FEX-1 | Integrated Field Exciter Board |
| SDCS-FEX-2 | Field Excitation Control Module |
| SDCS-FEX-2A | Field Power Supply Board |
| SDCS-CON-2A | Drive Control Board |
| SDCS-COM-5 | Communication Interface Module |
These modules are often combined within ABB DC drive cabinets to form a complete motor control and excitation system.
