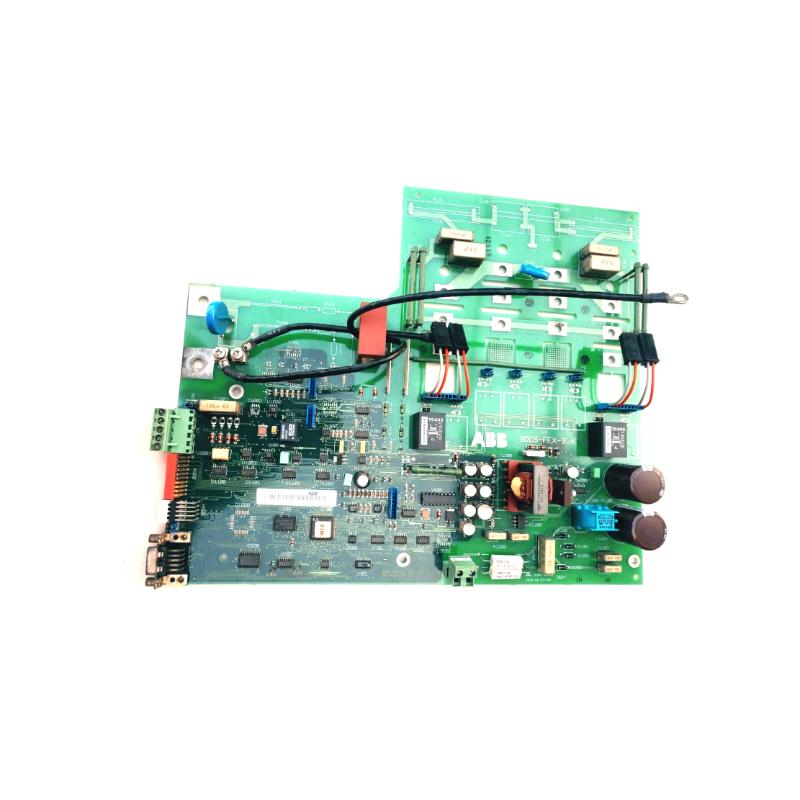

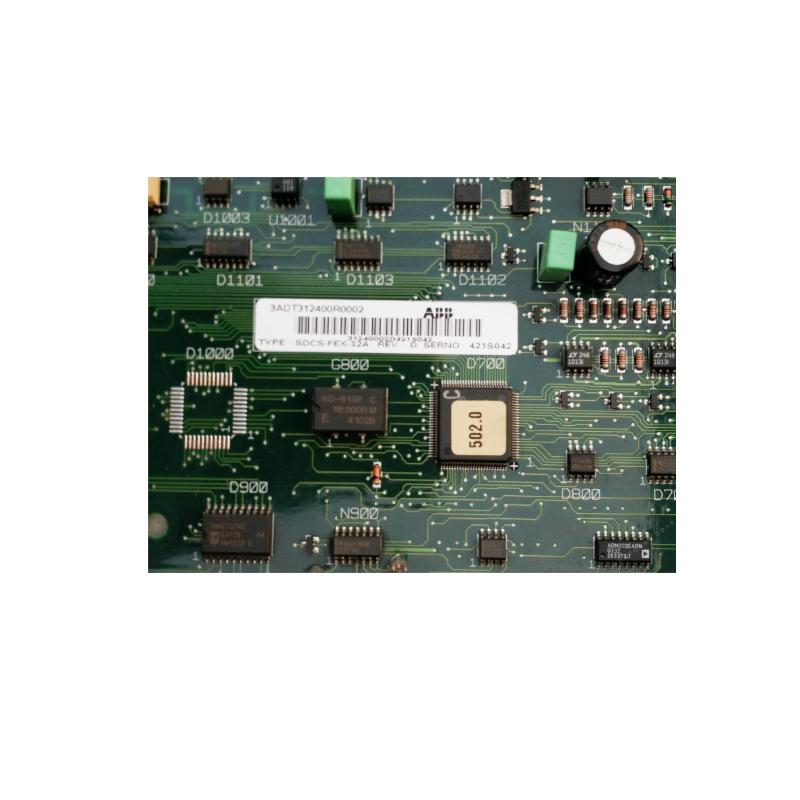

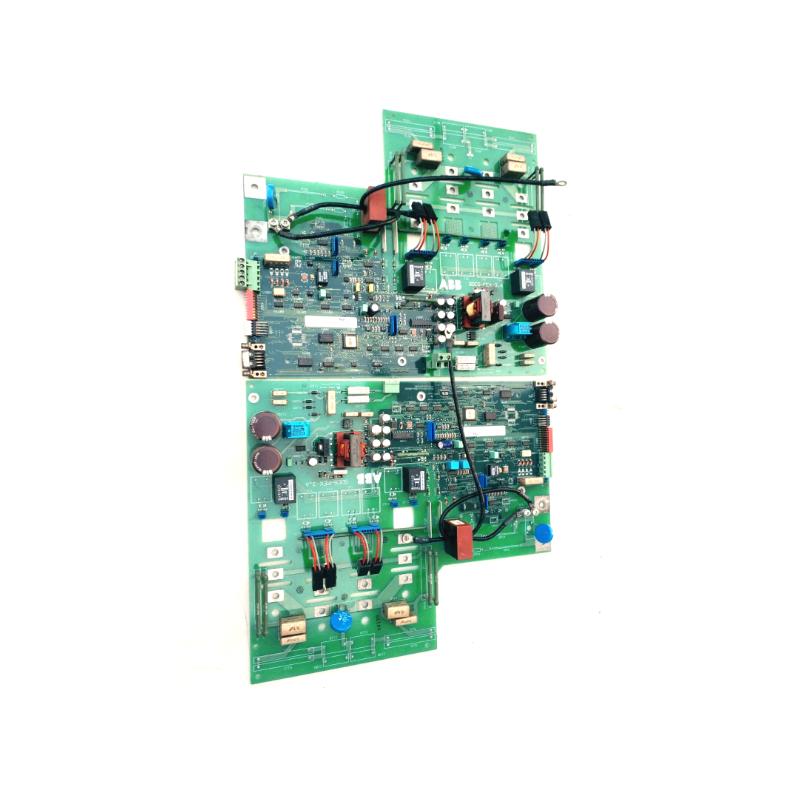

The ABB SDCS-FEX-32A Control Board Module is a specialized industrial control board used in ABB DCS500 DC drive systems to manage field excitation and DC motor speed control. As part of ABB’s SDCS (Drive Control System) architecture, the module ensures precise regulation of motor field current, enabling stable speed control and efficient drive performance in heavy industrial applications.
In large-scale automation environments, such as steel rolling lines or process manufacturing systems, consistent field excitation is essential for maintaining torque stability and accurate motor speed control. The SDCS-FEX-32A integrates advanced control circuitry and communication interfaces, allowing it to coordinate seamlessly with other drive modules inside the converter cabinet.
Designed for reliability and long-term industrial operation, the board supports closed-loop control strategies and industrial communication interfaces, making it suitable for demanding process automation systems where drive precision and system uptime are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-FEX-32A |
| ABB Part Number | 3ADT312400R0002 |
| Manufacturer | ABB |
| Module Type | Field Exciter / DC Speed Control Board |
| System Platform | ABB SDCS Drive Control System |
| Compatible Drives | ABB DCS500 DC Drive Systems |
| Input Voltage | 24–48 VDC |
| Maximum Input Voltage | Up to 400 V DC |
| Output Current Capacity | Up to 32 A |
| Communication Interfaces | RS-485 / Modbus |
| Control Function | DC motor speed and excitation control |
| Operating Temperature | –20°C to +60°C |
| Mounting | Drive cabinet PCB installation |
| Dimensions (L × W × H) | 175 × 120 × 55 mm |
| Weight | 0.60 kg |
This compact module is designed to deliver high reliability and precise control within ABB drive cabinets used in industrial automation systems.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-FEX-31 | Field Exciter Control Board |
| SDCS-FEX-32 | Field Exciter Module |
| SDCS-FEX-2A | Field Exciter Power Board |
| SDCS-CON-2A | Drive Control Board |
| SDCS-COM-5 | Drive Communication Module |
These modules are frequently used together in ABB DC drive architectures to form a complete motor control and excitation system.
