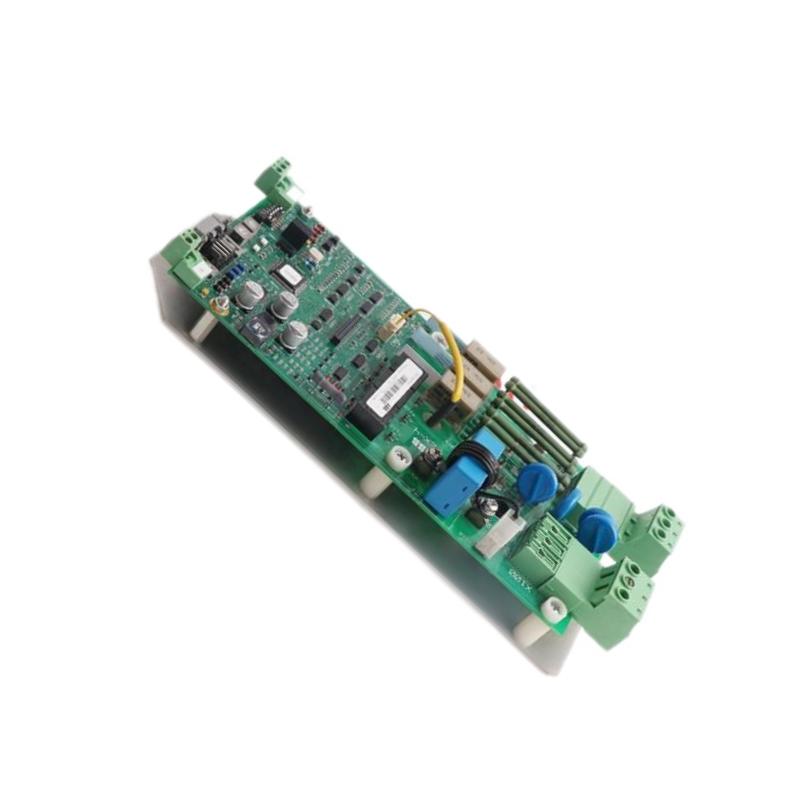

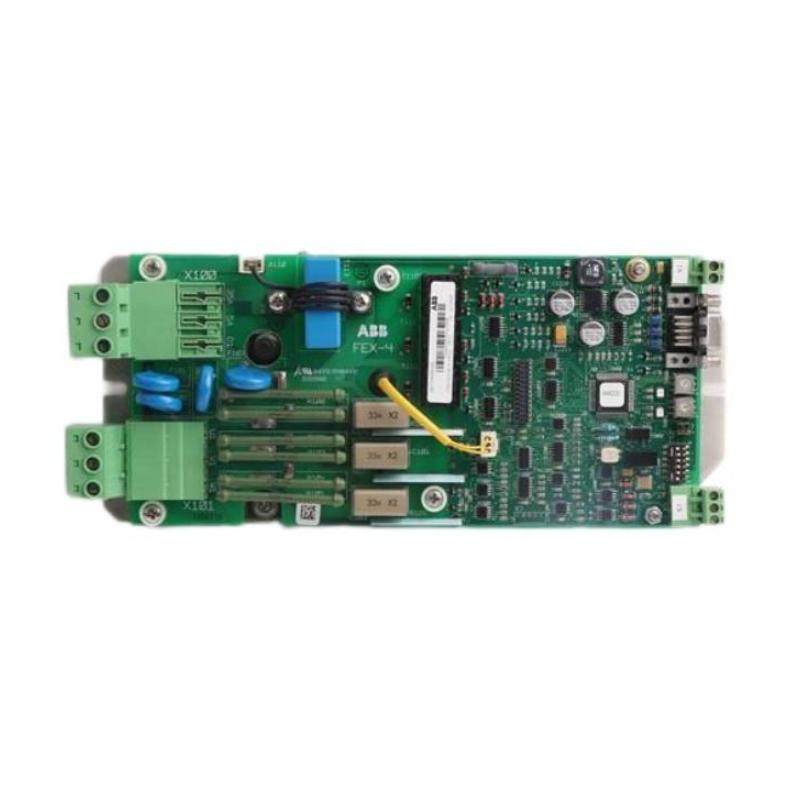

The ABB SDCS-FEX-425 Field Exciter Module is a high-capacity excitation control component designed for industrial ABB DC drive and power control systems. It is commonly identified as SDCS-FEX-425-INT (Product ID: 3ADT209022R0001) and is used to provide stable field excitation for large DC motors and generator systems.
In large industrial drives, maintaining precise magnetic field control is critical for achieving stable torque and speed performance. The SDCS-FEX-425 module delivers regulated excitation power, enabling reliable motor performance even in demanding environments such as heavy manufacturing and process industries.
The module integrates directly into ABB drive cabinets and works together with the SDCS drive control architecture, communicating with other drive boards and excitation circuits. Its integrated design includes a pre-installed DSL cable for fast installation and seamless integration into ABB field supply systems.
Thanks to its high reliability and compact structure, the SDCS-FEX-425 is widely used in large industrial applications requiring dependable excitation control and long-term operational stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-FEX-425 |
| ABB Type Designation | SDCS-FEX-425-INT |
| Product ID | 3ADT209022R0001 |
| Manufacturer | ABB |
| Module Type | Field Exciter Power Control Module |
| Application | DC motor and generator field excitation |
| Input Voltage | 3 × 500 V AC |
| Rated Current | 25 A |
| Excitation Type | Integrated field exciter |
| Communication | SDCS drive system integration |
| Integrated Cable | 0.54 m FEX-4-DSL cable |
| Installation | Drive cabinet mounting |
| Operating Temperature | –20°C to +60°C |
| Dimensions (L × W × H) | 126 × 124 × 22 mm |
| Weight | 2.0 kg |
The integrated cable and compact structure simplify installation while maintaining stable excitation output for high-power drive systems.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-FEX-4 | Field Exciter Control Module |
| SDCS-FEX-32A | Drive Speed Control Board |
| SDCS-CON-2A | Drive Control Board |
| SDCS-POW-4 | Power Supply Module |
| SDCS-PIN-51 | Interface Board |
These modules are frequently used together within ABB drive cabinets to build a complete DC drive control architecture.
