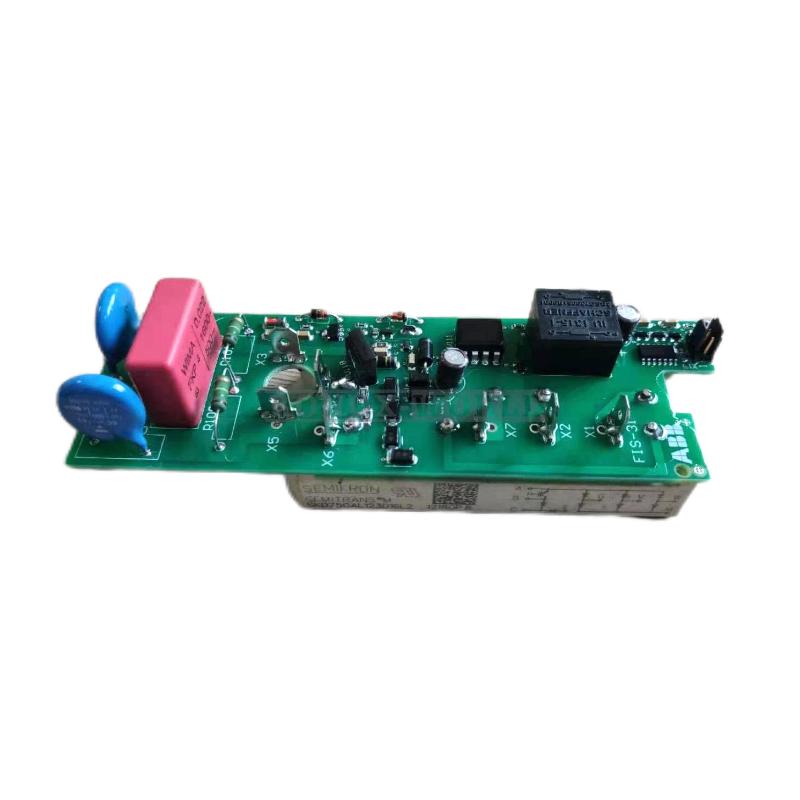

The ABB SDCS-FIS-3A is a field exciter module designed for use in ABB DCS400 and related DC drive systems, providing controlled excitation power for industrial motors. The module converts three-phase AC input into regulated DC output used to energize the motor field winding, ensuring stable torque production and improved drive performance.
In high-power DC motor applications, field excitation stability is critical for maintaining accurate speed regulation and efficient energy conversion. The SDCS-FIS-3A module delivers smoothed DC field voltage, which helps improve motor commutation, reduce heat generation, and extend brush life.
As part of the ABB SDCS control platform, this module works together with boards such as SDCS-CON-3A and SDCS-PIN-3A to form a complete drive control architecture. Its robust electrical design and wide input voltage range allow it to operate reliably in heavy industrial environments including steel processing, mining equipment, and large conveyor systems.
Because of its dependable excitation control and compatibility with ABB drive systems, the SDCS-FIS-3A remains a commonly used component in industrial DC drive maintenance and upgrade projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-FIS-3A |
| Manufacturer | ABB |
| Module Type | Field Exciter / Field Power Supply Module |
| System Compatibility | ABB DCS400 DC Drive System |
| Input Voltage | 230–500 V AC, three-phase |
| Output Voltage | 50–440 V DC (programmable) |
| Output Current | 0.1–20 A depending on drive rating |
| Isolation Voltage | 600 V |
| Frequency | Same as converter module |
| Operating Temperature | −20°C to +60°C |
| Mounting Type | Drive cabinet PCB installation |
| Dimensions (L × W × H) | 165 × 100 × 45 mm |
| Weight | 0.35 kg |
The module provides regulated DC field current for motors and helps maintain stable performance across varying load conditions.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-CON-3A | Drive Control Board |
| SDCS-PIN-3A | Power Interface Board |
| SDCS-FEX-2A | Excitation Control Board |
| SDCS-COM-5 | Communication Module |
| SDCS-DSL-4 | Drive Signal Link Module |
These components are often installed together in ABB DC drive control cabinets to build a complete drive regulation system.
