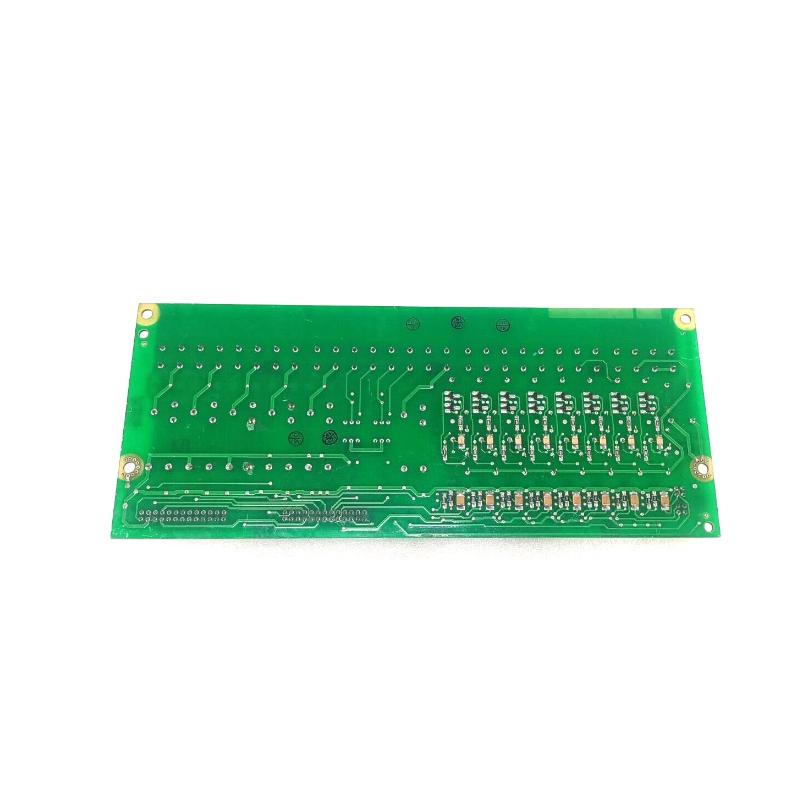

The ABB SDCS-IOB-23 is a digital input/output interface module designed to expand signal connectivity in ABB industrial drive control systems. As part of the SDCS control architecture used in platforms such as ABB DCS800 DC drives, this module enables reliable communication between the drive controller and external field devices including sensors, switches, and actuators.
In large industrial automation environments, drive systems often require additional digital I/O capacity for monitoring and control tasks. The SDCS-IOB-23 board provides isolated digital signal channels that help maintain accurate data transmission while protecting the control system from electrical interference.
The module is engineered for integration inside ABB drive cabinets, where it functions as an optional I/O expansion board. Its robust electronics, compact design, and environmental protection coating (optional) allow reliable operation even in harsh industrial conditions such as steel plants, mining equipment, and heavy manufacturing facilities.
With its flexible digital interface capabilities and compatibility with ABB SDCS drive architectures, the SDCS-IOB-23 helps improve automation system scalability and operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-IOB-23 |
| ABB Product ID | 3BSE005178R0001 |
| Manufacturer | ABB |
| Module Type | External Isolated Digital I/O Module |
| Power Supply | 230 V AC |
| Digital Inputs | 8 channels |
| Digital Outputs | 8 channels |
| Signal Type | TTL / digital ON-OFF signals |
| Communication | Internal drive control interface |
| Rated Insulation Voltage | 250 V |
| Operating Temperature | −20°C to +60°C |
| Mounting Method | Internal drive cabinet installation |
| Dimensions (L × W × H) | 125 × 90 × 25 mm |
| Weight | 0.20 kg |
The SDCS-IOB-23 module provides stable digital signal transmission and improves system flexibility for complex automation applications.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-IOB-21 | Digital I/O Interface Board |
| SDCS-IOB-22 | Digital I/O Expansion Board |
| SDCS-CON-3A | Drive Control Board |
| SDCS-COM-5 | Communication Interface Module |
| SDCS-DSL-4 | Drive Signal Link Module |
These modules are commonly used together within ABB SDCS drive systems to form a complete industrial drive control architecture.
