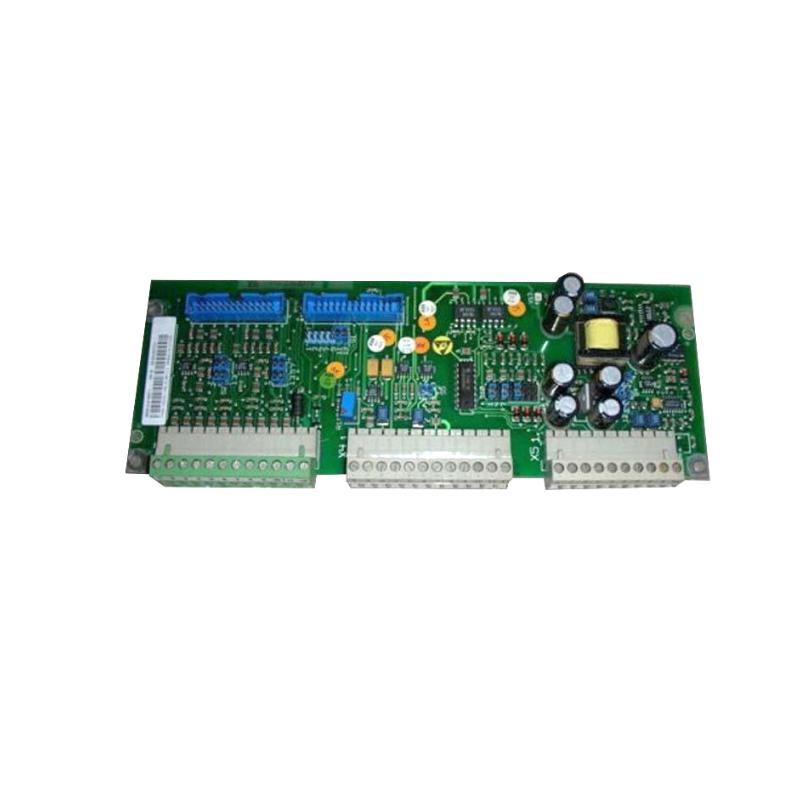

The ABB SDCS-IOB-3 is an analog input/output interface board developed for ABB DC drive control platforms such as the DCS800 series. This module expands the drive system’s signal processing capability by providing additional analog inputs, analog outputs, and encoder interface functions required for precise motor control and monitoring.
In advanced industrial drive applications, accurate acquisition and processing of analog signals is essential for maintaining stable motor speed, torque regulation, and process control. The SDCS-IOB-3 module connects directly to the drive control board—typically the SDCS-CON-4—through flat cable connectors, replacing the standard analog inputs and outputs on the controller and enabling extended measurement and feedback capabilities.
The module integrates several analog signal channels along with an isolated encoder interface, allowing industrial drives to capture sensor signals such as speed feedback, temperature measurements, and process variables. These capabilities make the SDCS-IOB-3 particularly useful in demanding industrial sectors including steel processing, mining equipment, power generation systems, and heavy manufacturing.
With its compact design and reliable signal processing performance, the SDCS-IOB-3 plays a key role in ensuring accurate drive control and efficient automation system operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-IOB-3 |
| ABB Part Number | 3BSE004086R1 |
| Manufacturer | ABB |
| Module Type | Analog I/O Interface Board |
| Power Supply | 24 V DC |
| Analog Inputs | 5 channels |
| Analog Outputs | 3 channels |
| Encoder Interface | Galvanically isolated pulse encoder |
| Signal Types | Voltage and current signals |
| Communication Interface | Internal drive bus |
| Operating Temperature | −25°C to +60°C |
| Mounting Method | External mounting connected to SDCS control board |
| Dimensions (L × W × H) | 148 × 100 × 130 mm |
| Weight | 0.30 kg |
The SDCS-IOB-3 board provides extended analog measurement and control capability for ABB drive systems operating in demanding industrial environments.
Recommended Related Models
| Model | Module Type |
|---|---|
| SDCS-CON-4 | Drive Control Board |
| SDCS-IOB-21 | Digital I/O Interface Board |
| SDCS-IOB-22 | External Digital I/O Board |
| SDCS-FEX-4A | Field Excitation Control Board |
| SDCS-COM-5 | Communication Interface Module |
These modules are typically used together within ABB DC drive control cabinets to provide complete signal processing and system communication functions.
