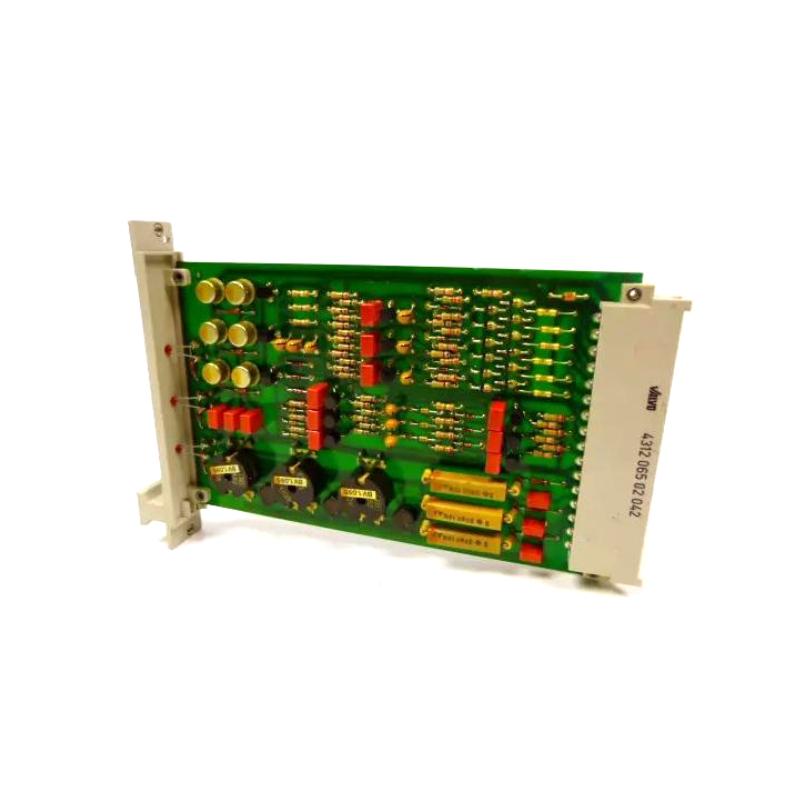

HIMA F4109 Safety I/O Expansion Module for High‑Integrity Distributed Functional Safety Systems
HIMA F4109 Safety I/O Expansion Module for High‑Integrity Distributed Functional Safety Systems
0.0
Points
Brand:Hima DCS Modules Item No.:HIMA F4109 Product Origin:Germany Product Dimensions:130 × 40 × 120 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The HIMA F4109 is a robust safety I/O expansion module engineered to extend high‑integrity signal processing capacity within HIMA Safety Instrumented Systems (SIS). Built for demanding industrial environments, this module enables additional safe input/output channels to be integrated seamlessly into an existing safety architecture. With deterministic performance and rugged hardware design, the F4109 strengthens system scalability and reliability where functional safety and uptime are critical.
Technical Specifications
Specification
Details
Model
F4109
Module Type
Safety I/O Expansion Module
System Compatibility
HIMA HIQuad / HIMatrix safety systems
Function
Expansion I/O for safety signal interfacing
Supported I/O
Configurable safety digital channels
Power Supply
Nominal 24 V DC
Mounting
Rack or DIN‑rail compatible
Operating Temperature
0 °C to +60 °C
Storage Temperature
‑40 °C to +85 °C
Protection Rating
IP20
Dimensions (H×W×D)
Approx. 130 × 40 × 120 mm
Weight
Approx. 0.4 kg
Recommended Related Models
HIMA F3238 Safety Input Module
HIMA F32102 Digital Output Module
HIMA F8650 Central Safety Controller
HIMA F2108 Safety Delay Module
HIMA F7553 Remote I/O Expansion Module
Popular HIMA Modules
HIMA F7541 Digital Input Module
HIMA F7130 Power Supply Module
HIMA F6217 Analog Signal Module
HIMA F8621A Communication Module
HIMA X‑BLK 01 Backplane Interface
Application Areas
The F4109 is widely deployed across industries that require scalable and reliable safety signal expansion:
Emergency Shutdown (ESD) networks in oil and gas facilities
Fire & Gas detection and control systems
Chemical and petrochemical processing plants
Power generation and distribution safety systems
Transportation infrastructure safety control
Manufacturing environments with extensive safety I/O requirements
Key Advantages
Scalable Safety Expansion – Allows safe growth of I/O channels without redesigning main safety controller.
Safety‑Certified Design – Engineered to meet functional safety standards with deterministic performance.
Flexible Integration – Compatible with modular HIMA safety architectures such as HIQuad and HIMatrix.
Industrial Durability – Built to operate reliably in harsh industrial environments.
Reliable Signal Processing – Delivers consistent safety I/O performance for mission‑critical decisions.
Technical FAQs
1. What is the core purpose of the HIMA F4109?
It expands safety I/O capacity within a HIMA safety system, providing additional configurable channels.
2. What systems is it compatible with?
It integrates with HIMA HIQuad and HIMatrix safety systems.
3. What kind of I/O does it support?
It supports configurable safety digital input/output channels.
4. What power supply does it require?
The module operates on a nominal 24 V DC supply.
5. Can it be used in large distributed safety architectures?
Yes, it is designed to extend safety I/O in distributed system topologies.
6. Is it suitable for harsh industrial environments?
Yes, it is engineered for standard industrial temperature and environmental conditions.
7. How is the F4109 mounted?
It can be rack‑mounted or DIN‑rail mounted as part of a safety control installation.
8. Does it support redundancy?
Redundancy support depends on the overall safety system architecture implemented.
9. What industries commonly use this module?
Common industries include oil & gas, chemical, power generation, transportation, and manufacturing.
10. What makes it different from standard I/O expansion modules?
Unlike general I/O expansions, it is built specifically for safety‑rated signal handling with certified deterministic behavior.
