Brand:Yokogawa Electric Item No.:EB402-10 Product Origin:Japan Product Dimensions:132 x 102 x 35 mm Product Weight:1.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

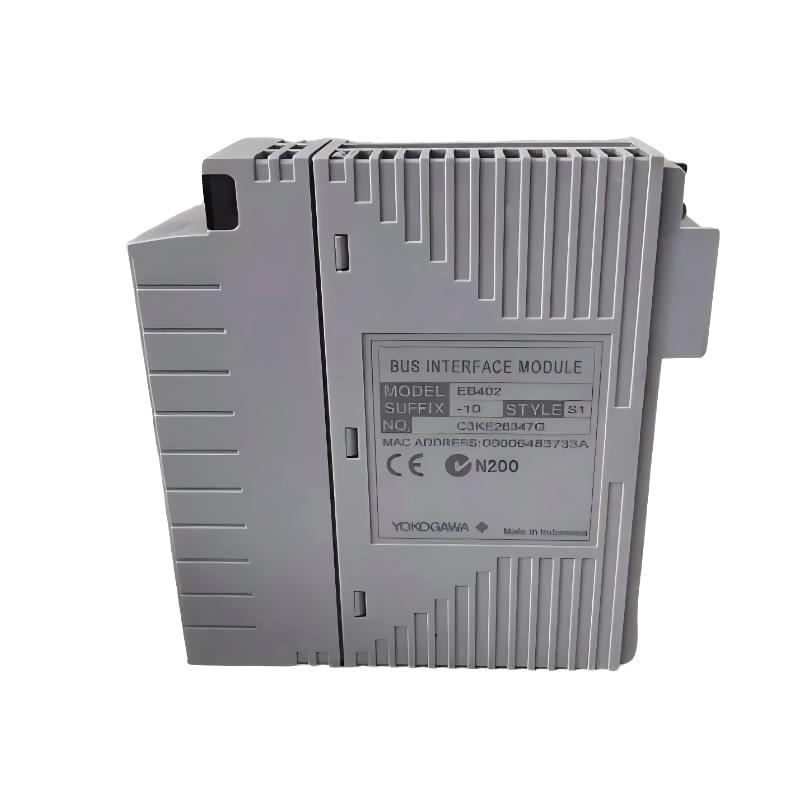

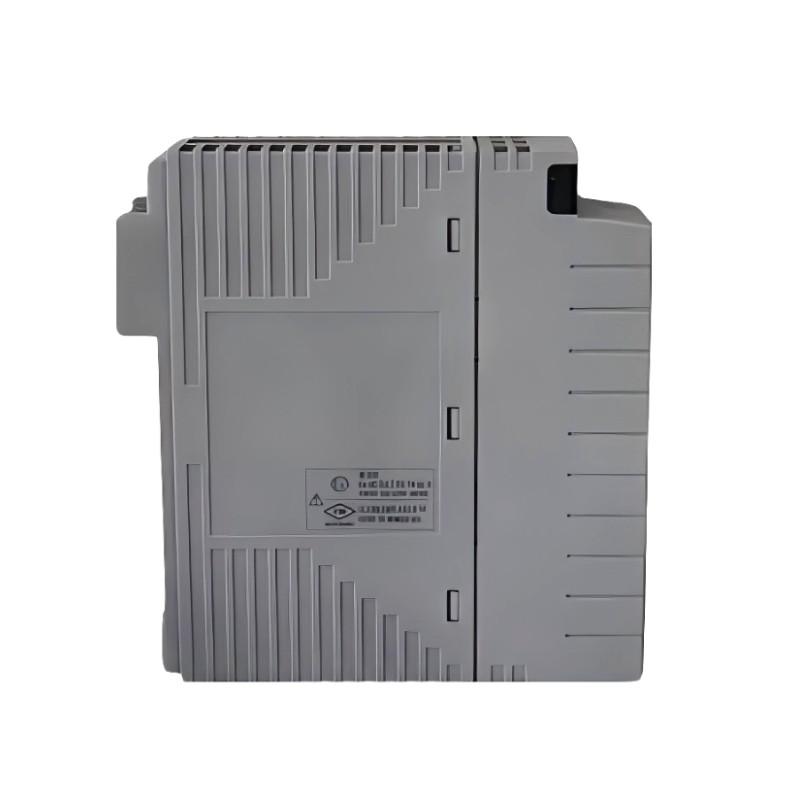

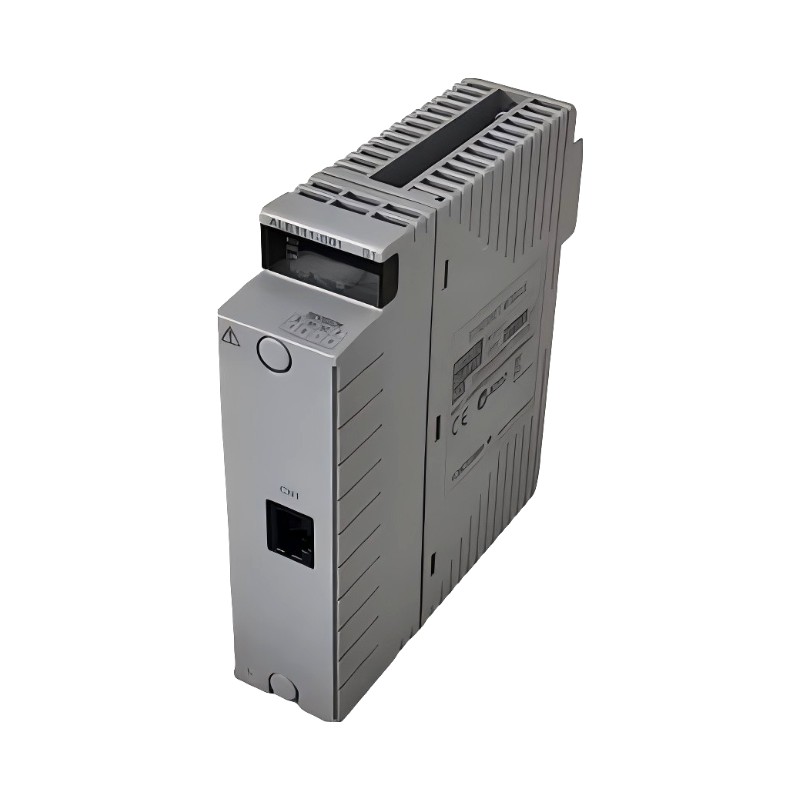

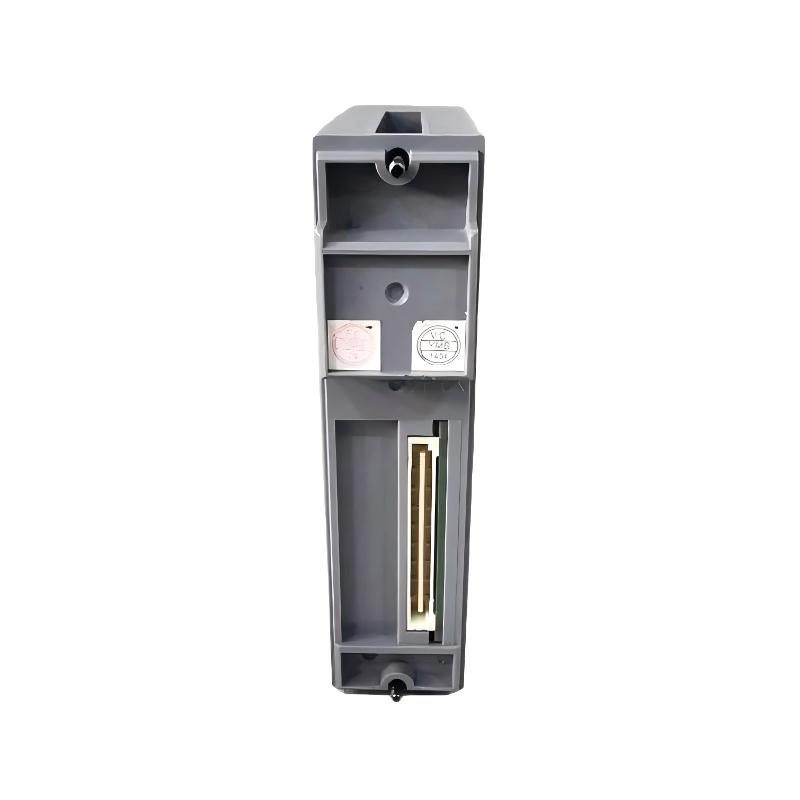

The Yokogawa EB402-10 ESB Bus Coupler Module provides reliable and high-speed communication between field devices and ESB networks. Its compact, robust design ensures stable operation in complex industrial automation systems.
Technical Specifications
Specification
Details
Module Type
ESB Bus Coupler
Function
Connects field devices and I/O modules to ESB networks
Communication
High-speed ESB network interface
Diagnostics
LED indicators for device and network status
Operating Temperature
-10°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
132 mm × 102 mm × 35 mm
Weight
1.0 kg
Recommended Related Models
Model
Description
EB400-10
Standard ESB Bus Coupler for small-scale networks.
EB401-10
Advanced coupler with extended device support.
EB403-10
High-speed bus coupler for medium-scale automation.
EB404-10
Redundant ESB coupler module for critical networks.
Popular Related Models
Model
Description
EB402-11
Upgraded EB402 series with extended diagnostics.
EB405-10
High-capacity ESB coupler for large automation networks.
EB406-10
Coupler supporting additional communication protocols.
EB407-10
Industrial-grade coupler optimized for harsh environments.
Applications
• Integration of field devices into Yokogawa ESB networks.
• Distributed control system signal coupling and routing.
• Process automation communication between controllers and I/O modules.
• Industrial monitoring and data acquisition systems.
• Oil, gas, and chemical plant automation networks requiring reliable bus coupling.
Key Advantages
• Ensures stable communication between ESB controllers and remote I/O.
• Compact design suitable for tight control cabinet installations.
• Easy installation and maintenance with plug-and-play connectivity.
• Supports high-speed data transmission across ESB networks.
• Robust operation in harsh industrial environments.
Technical FAQs
1. What is the main function of the EB402-10 module?
It acts as a bus coupler to connect field devices and I/O modules to the ESB network.
2. Is the module hot-swappable?
Yes, it supports hot-swapping without shutting down the entire network.
3. How many devices can it connect simultaneously?
The module can manage multiple I/O and field devices as defined by ESB system limits.
4. Does it provide diagnostics for connected devices?
Yes, LED indicators and network diagnostics help monitor device status and communication health.
5. What is the operating temperature range?
The module operates reliably between -10°C and 55°C.
6. Is it compatible with other Yokogawa ESB modules?
Yes, it is fully compatible with the entire Yokogawa ESB module series.
7. Can firmware be updated?
Yes, firmware updates are supported through the Yokogawa maintenance interface.
8. Does the EB402-10 support redundant network configurations?
Yes, it can be integrated into redundant ESB network setups for high reliability.
9. How is power supplied to the module?
It is powered directly from the ESB backplane, without the need for an external power supply.
10. Can it operate in safety-critical applications?
Yes, when combined with appropriate safety control schemes, it is suitable for industrial safety applications.
