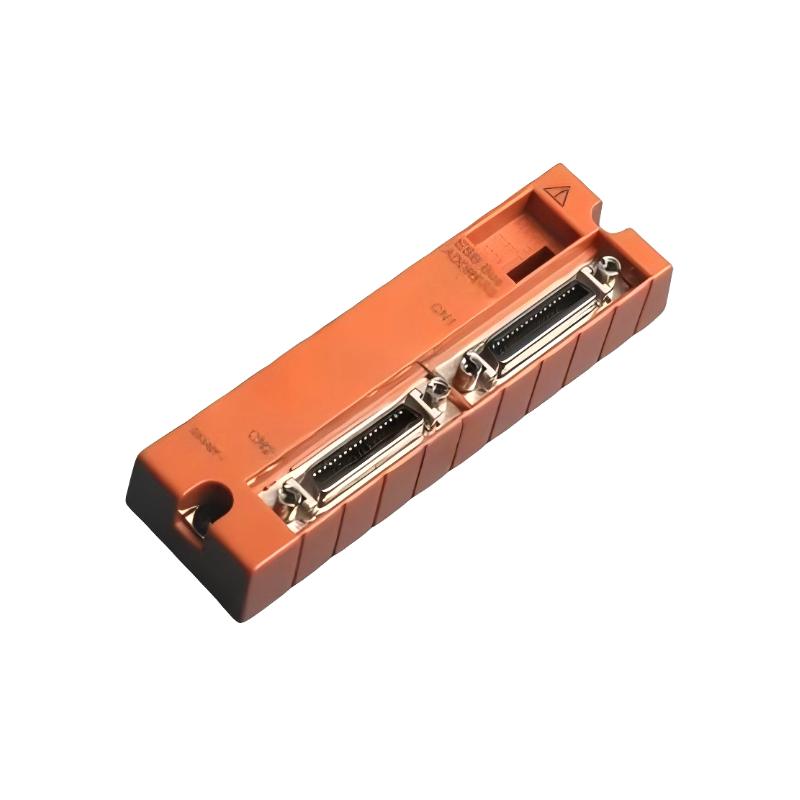

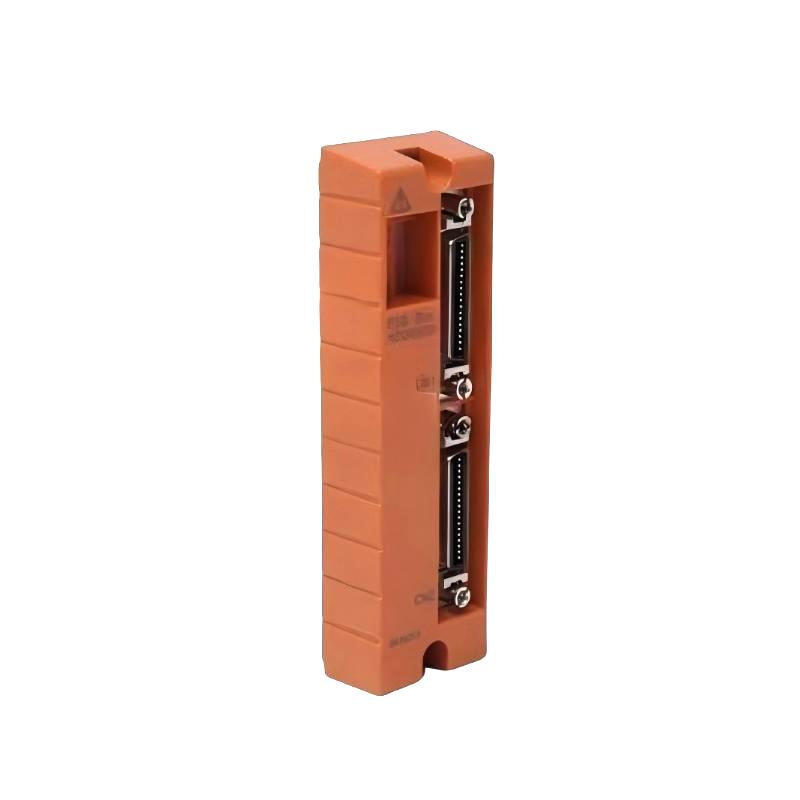

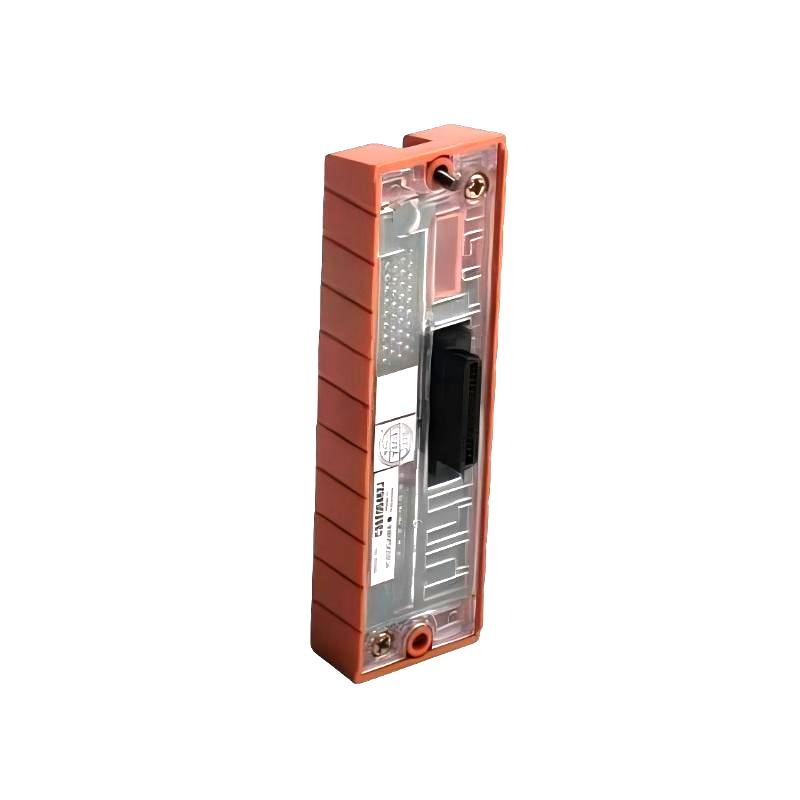

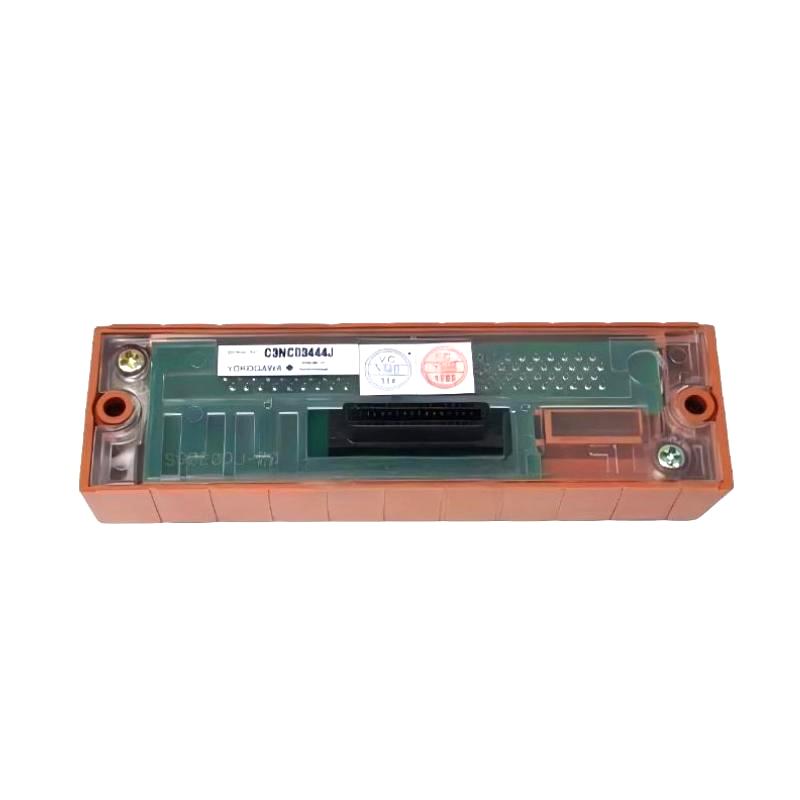

Yokogawa S9342FA Bus Connector Unit

Applications

• Connects Yokogawa control modules to the ESB or ADV bus system.

• Facilitates communication and signal transmission between multiple control and I/O modules.

• Integration into industrial automation and distributed control systems.

• Replacement or upgrade of existing bus connectors for system maintenance.

• Ensures organized and reliable connectivity within control cabinets.

Key Advantages

• Compact and lightweight design enables easy installation in tight spaces.

• Ensures stable and reliable bus communication between modules.

• Robust construction tolerates industrial vibration and temperature fluctuations.

• Fully compatible with Yokogawa ESB and ADV series modules.

• Simplifies system wiring and reduces installation errors.

• Supports long-term continuous operation in industrial environments.

Technical FAQs

1. What is the main function of the S9342FA unit?
It connects control modules to the bus system, enabling reliable data and signal transmission.

2. Can it be used with other Yokogawa modules?
Yes, it is compatible with ESB and ADV series control modules.

3. What are its physical dimensions?
The unit measures 50 × 32.8 × 107.5 mm.

4. What is the weight of the connector?
It weighs 0.2 kg.

5. How is it installed?
Mounted between bus modules within the control cabinet for proper alignment.

6. Can it operate under harsh industrial conditions?
Yes, it tolerates vibration, temperature variations, and electrical noise.

7. Does it require maintenance?
Periodic inspection of connections is recommended to ensure reliable operation.

8. Can it support high-speed communication?
Yes, it maintains stable bus communication at standard ESB/ADV speeds.

9. What are signs of connection issues?
Communication errors or intermittent module response indicate potential problems.

10. How does it enhance system reliability?
By providing secure and organized connectivity, it ensures stable bus communication and reduces system downtime.
