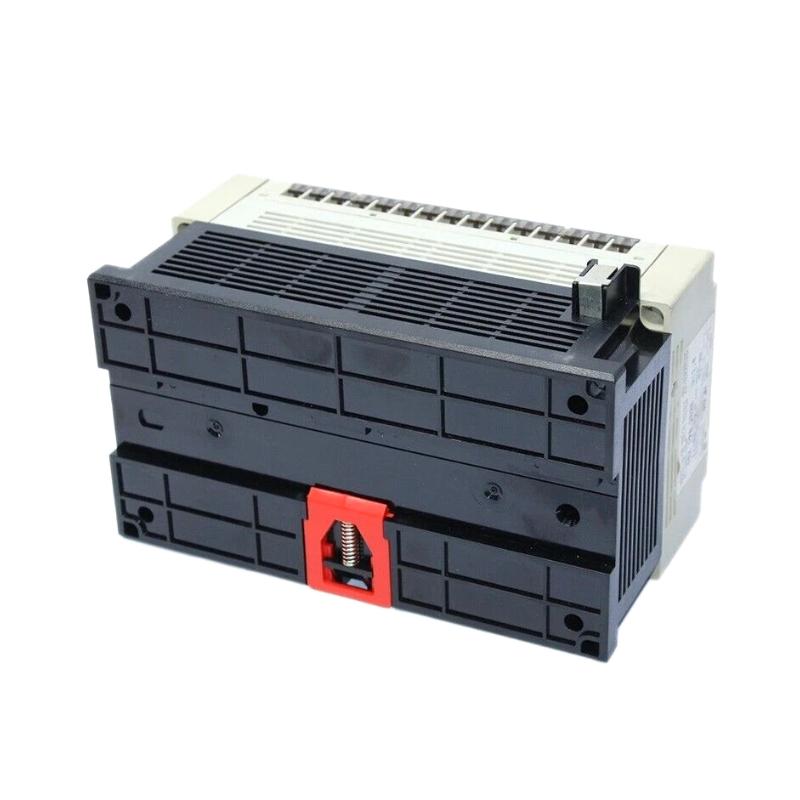

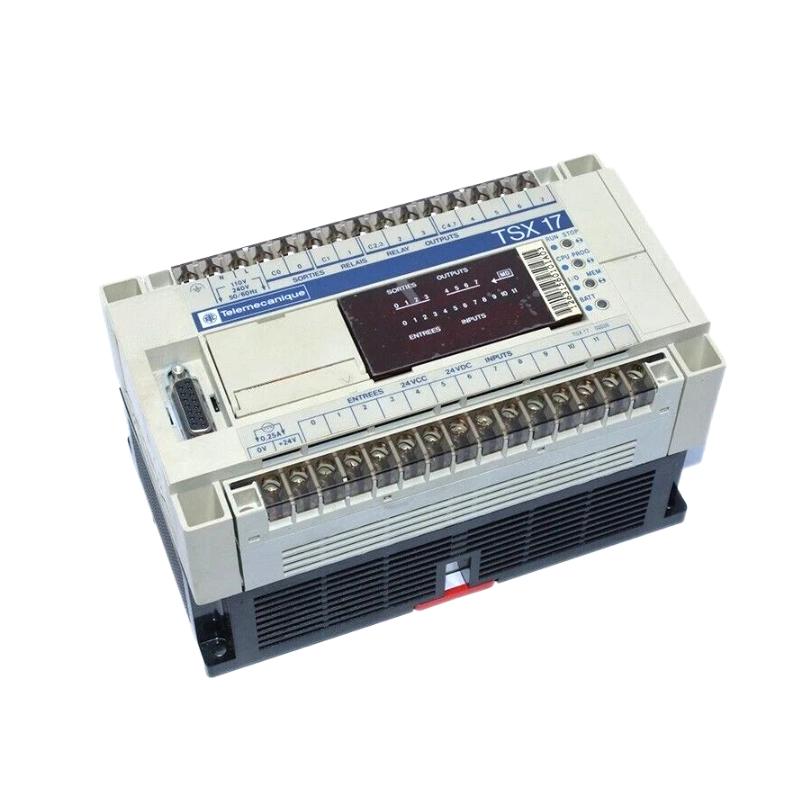

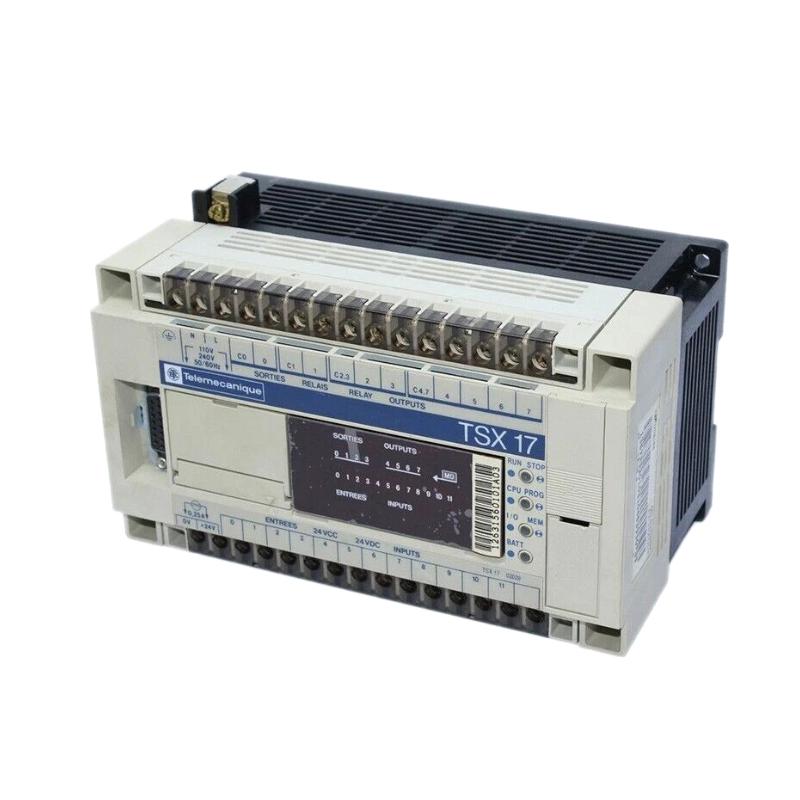

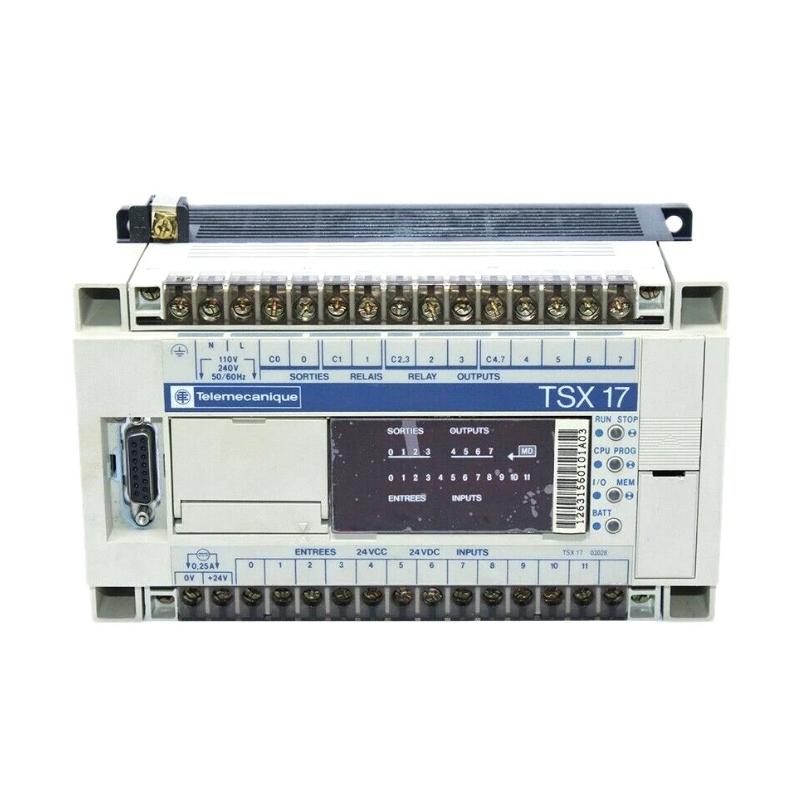

The Schneider Electric TSX1702028 is a MODICON Nano TSX‑17 series programmable logic controller (PLC) designed to deliver compact, reliable automation control for small and mid‑sized industrial systems. With integrated relay I/O and an efficient brick‑style layout, it provides a cost‑effective solution for real‑time machine control, process automation, and standalone control tasks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Programmable Logic Controller |
| Series | Modicon Nano TSX‑17 |
| Model Number | TSX‑170‑2028 |
| I/O Configuration | 20 integrated I/O relay points |
| I/O Type | Relay outputs and digital inputs |
| Programming | Schneider Electric PLC software (Modicon programming) |
| Mounting | DIN rail or panel mounting |
| Approx. Dimensions (H × W × D) | Approx. 127 × 127 × 203 mm (5.0″ × 5.0″ × 8.0″) |
| Approx. Weight | Approx. 1.4 kg |
| Operating Environment | Industrial environments |
| Application Areas | Machine control, conveyors, HVAC automation, processes |
Dimensions and weight are based on typical Modicon TSX‑17 series PLC listings.
