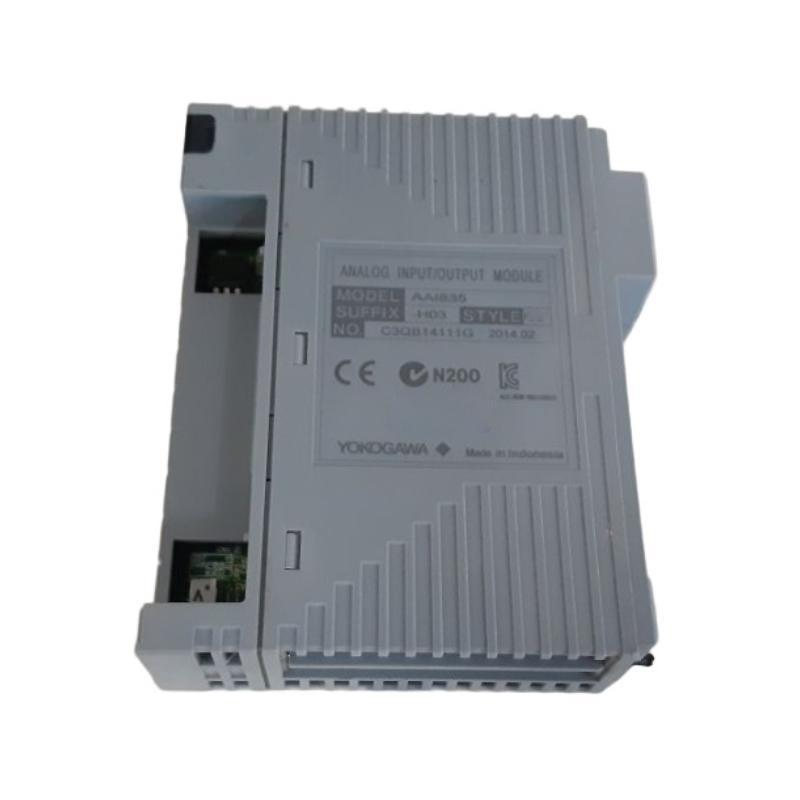

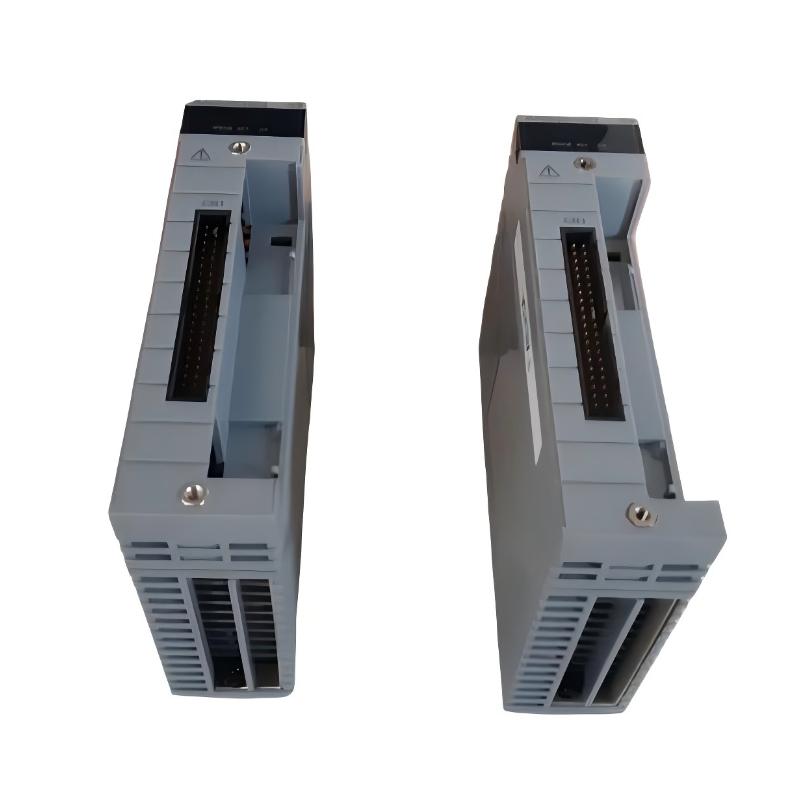

Yokogawa AAI835-H03/K4A00 Analog I/O Module

Industrial Process Control Applications
The Yokogawa AAI835-H03/K4A00 Analog I/O Module is engineered for versatile signal handling in distributed control systems (DCS). It is widely used in process industries such as petrochemical, oil & gas, power generation, water/wastewater, and advanced manufacturing environments. This module supports both analog inputs and analog outputs, enabling precise measurement and control of field devices like transmitters, control valves, and actuators. The H03/K4A00 designation indicates a specific functional configuration with enhanced field interface options.

Key Benefits

• Dual I/O capability: Combines analog input and output in a single module, optimizing cabinet space and reducing design complexity.

• Enhanced configuration: The H03/K4A00 variant supports extended interface options and improved compatibility with diverse signal types.

• Industrial-grade durability: Built to withstand vibration, electrical noise, and fluctuating temperature conditions found in plant environments.

• Seamless system integration: Designed to integrate smoothly with Yokogawa I/O racks and distributed control platforms.

• Service-oriented design: Modular structure simplifies installation, troubleshooting, and maintenance.

Technical FAQs

1. What is the primary function of the AAI835-H03/K4A00 module?
   It provides both analog input and output functions for process monitoring and control.

2. Which signal standards are supported?
   It typically supports standard industrial analog formats such as 4–20 mA current loops and compatible voltage ranges.

3. What does the H03/K4A00 designation mean?
   This combination denotes a specific functional and configuration variant tailored for certain signal handling and system integration requirements.

4. Can it operate continuously in industrial environments?
   Yes, it is designed for reliable 24/7 operation under demanding conditions.

5. Does the module have electrical isolation?
   Yes, it is designed with isolation features to help maintain signal integrity in electrically noisy environments.

6. What are the physical dimensions of the module?
   The module measures 107.5 × 32.8 × 130 mm.

7. What is the approximate weight?
   It weighs approximately 0.3 kg.

8. How is the module installed?
   It mounts into standard Yokogawa I/O rack assemblies.

9. Does it support system diagnostics?
   When integrated with compatible hosts, basic status reporting and fault indication can be available.

10. Is this module suitable for hazardous areas?
    The base H03/K4A00 variant is intended for general industrial environments; explosion-proof or intrinsically safe versions require separate specification.
