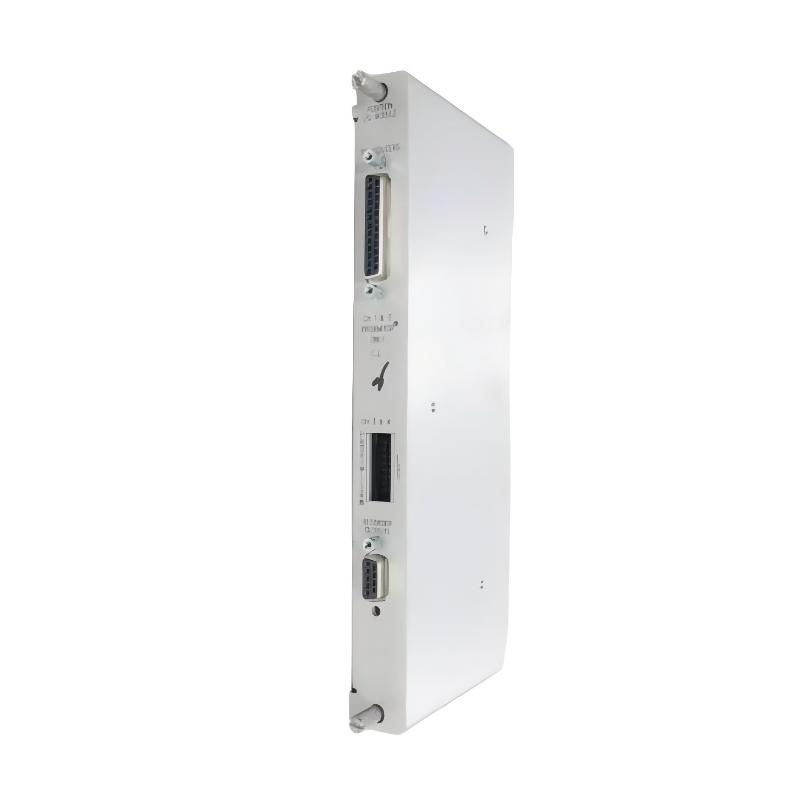

Bently Nevada 3500/45 135145-01 3500/45 Position Monitor I/O Module

Machinery Condition Monitoring & Protection Applications
The Bently Nevada 3500/45 Position Monitor I/O Module is a dedicated interface module designed to support position and proximity sensing within the 3500 series vibration and machinery protection platform. It is commonly deployed in power generation, oil & gas, petrochemical, and industrial manufacturing environments to monitor shaft motion, relative position changes, and key dynamic behaviors of rotating equipment. This module plays a vital role in safeguarding machinery by feeding accurate position data into protection logic and condition monitoring systems.

Key Advantages

• Accurate position sensing: Interfaces with proximity and position transducers to deliver reliable shaft/position feedback.

• Modular integration: Fits seamlessly into the 3500 system rack, enabling flexible instrumentation layouts.

• Industrial‑grade robustness: Built to withstand vibration, electrical noise, and temperature variations common in plant environments.

• Compact and lightweight: Slim footprint and low mass simplify installation and system expansion.

• Diagnostic support: Provides status indicators to help with system health checks and troubleshooting.

Technical FAQs

1. What is the primary function of the 3500/45 module?
   It captures position and proximity signals from sensors and provides processed outputs for condition monitoring and protection logic.

2. Is the module suitable for continuous 24/7 operation?
   Yes — it is engineered for reliable continuous industrial use.

3. What are the physical dimensions of the module?
   The 3500/45 measures 241.3 × 24.4 × 99.1 mm.

4. What is the weight of the module?
   It weighs approximately 0.20 kg.

5. How is it installed?
   It installs directly into the backplane of a standard 3500 series system rack.

6. Which signals does it support?
   It interfaces with position and proximity transducers, delivering processed digital I/O to the 3500 system.

7. Is it compatible with other 3500 modules?
   Yes — it integrates cleanly with the broader 3500/05 vibration monitoring system family.

8. Can it operate in noisy electrical environments?
   Yes — the design supports reliable performance in typical industrial electrical conditions.

9. Does it offer diagnostics?
   Yes — status indicators assist with module and signal path health monitoring.

10. Is this module suitable for hazardous areas?
    This standard industrial variant is intended for general plant environments; certified hazardous versions require appropriate ratings.
