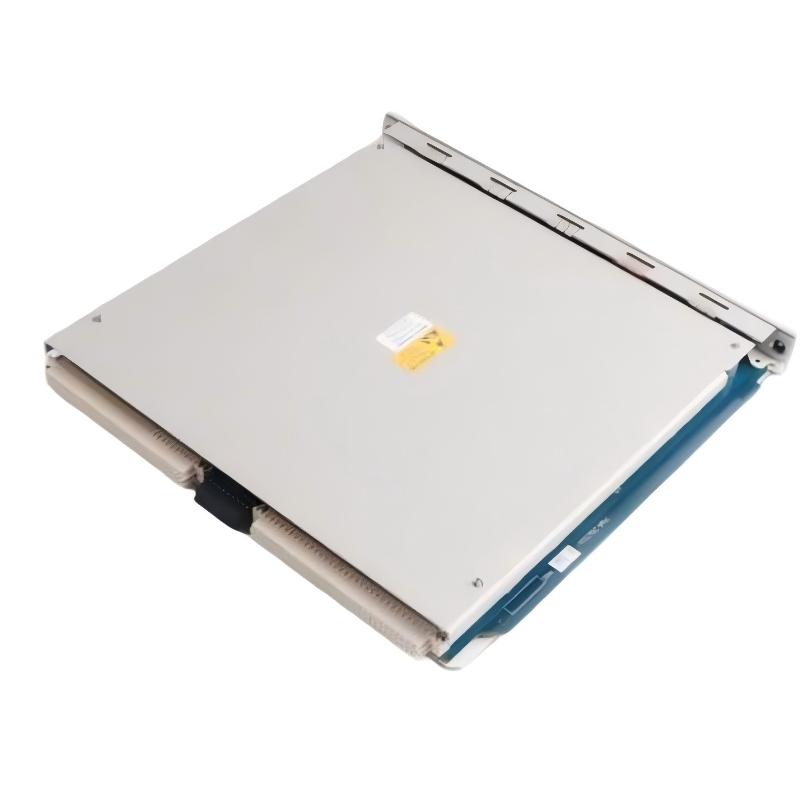

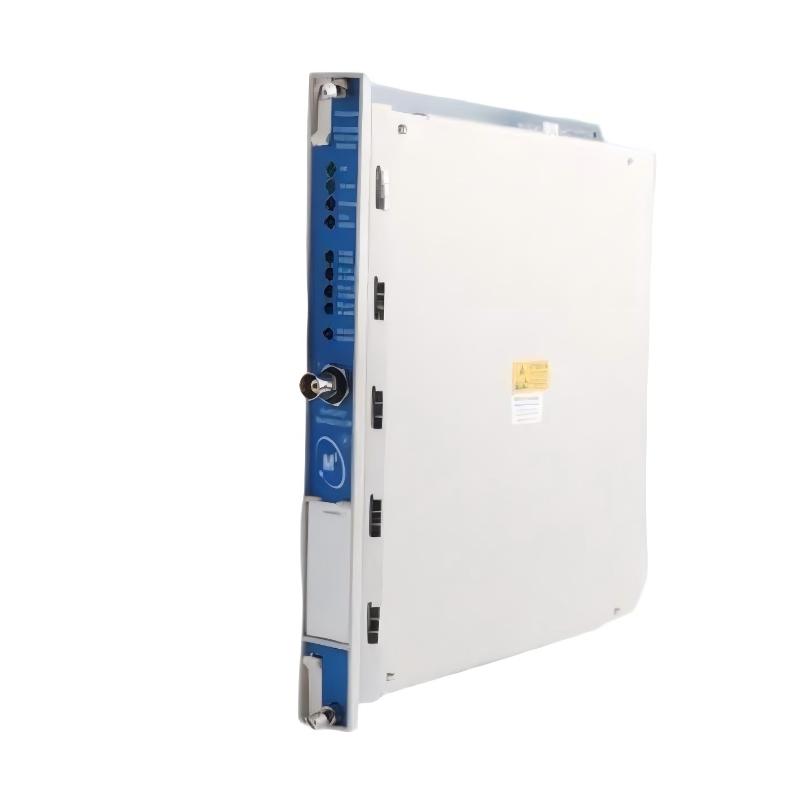

Bently Nevada 3500/53 286566-01 Overspeed Detection Module

High‑Speed Machinery Protection Applications
The Bently Nevada 3500/53 Overspeed Detection Module is engineered to provide fast, reliable overspeed protection for rotating machinery such as turbines, compressors, and high‑speed driven equipment. It is widely used in power generation, oil & gas, petrochemical, and industrial facilities where immediate detection of shaft overspeed conditions is critical to safety and asset integrity. This module delivers dependable supervision and trip logic inputs to protect personnel and equipment from catastrophic failure due to excessive rotational speed.

Key Advantages

• Rapid overspeed detection: Continuously monitors shaft speed and initiates protection actions when predefined thresholds are exceeded.

• High‑integrity performance: Designed to support safety‑critical applications with reliable detection and trip output.

• Industrial robustness: Built to withstand vibration, electrical noise, and temperature variations found in plant environments.

• Seamless integration: Plug‑in design fits into standard 3500 series system racks for coordinated system protection.

• Diagnostic support: Provides status indicators for module health and overspeed event detection.

Technical FAQs

1. What is the primary function of the 3500/53 module?
   It detects overspeed conditions and provides trip or alarm inputs to the condition monitoring system.

2. Which types of machinery benefit from this module?
   High‑speed turbines, compressors, turbo‑expanders, and other fast‑rotating equipment.

3. Is it suitable for continuous operation?
   Yes — it is designed for reliable 24/7 industrial use.

4. What sensors does it interface with?
   It typically works with tachometer, proximity, or speed pickup sensors.

5. What are the physical dimensions of the module?
   The module measures 241.3 × 24.4 × 241.8 mm.

6. What is the weight of the module?
   It weighs approximately 0.82 kg.

7. How is it installed?
   It installs into a compatible Bently Nevada 3500 series system rack using the backplane.

8. Does it support alarm and trip signaling?
   Yes — it provides reliable outputs for alarm and trip logic based on speed conditions.

9. Can it be used with other 3500 protection modules?
   Yes — it integrates seamlessly with the broader 3500 series vibration and protection system architecture.

10. Is it suitable for hazardous area environments?
    This module is designed for general industrial environments; certified versions are required for hazardous locations.
