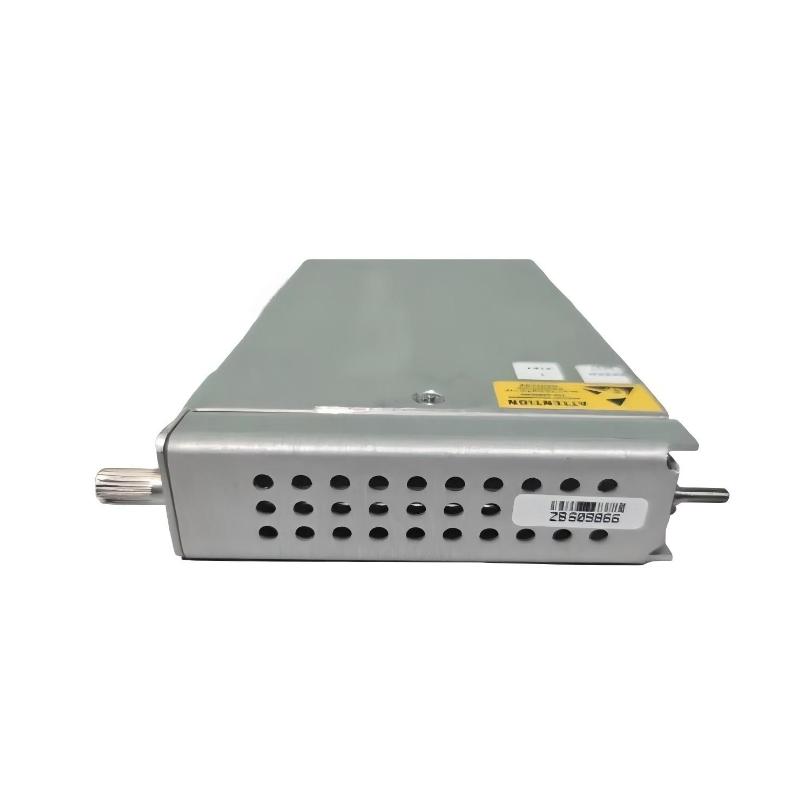

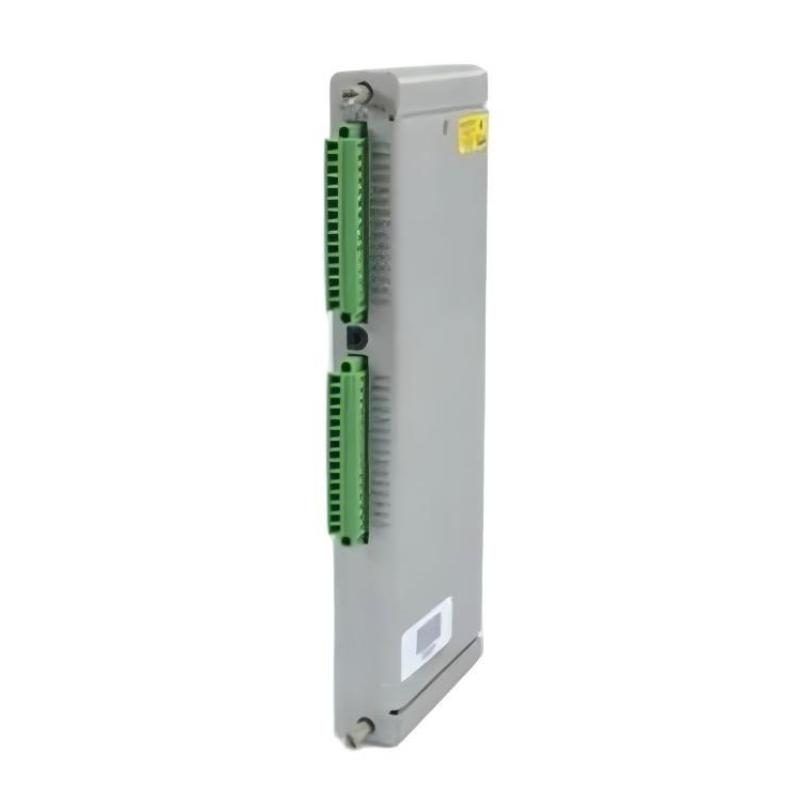

Bently Nevada 3500/60 133835-01 TC Isolated I/O Module

Industrial Temperature Monitoring & Protection Applications
The Bently Nevada 3500/60 133835‑01 TC Isolated I/O Module is engineered for high‑integrity thermocouple (TC) signal acquisition in rotating machinery protection and condition monitoring systems. It is widely deployed in power generation, oil & gas, petrochemical plants, and heavy industrial facilities where accurate temperature measurement from thermocouples is essential for bearing health, lubrication monitoring, and thermal protection. The internal terminal design simplifies wiring while providing robust electrical isolation and signal integrity.

Key Advantages

• Isolated thermocouple inputs: Minimizes electrical noise and ground loop interference, ensuring accurate temperature readings.

• Internal termination design: Simplifies wiring and improves signal reliability without external terminal blocks.

• Industrial‑grade durability: Built to withstand vibration, electrical noise, and temperature variations typical in plant environments.

• Compact and rack‑ready: Slim module fits standard 3500 series system racks for efficient deployment.

• Support for diagnostics: Provides operational status indicators to assist with fault detection and maintenance.

Technical FAQs

1. What is the primary purpose of this module?
   It acquires and conditions thermocouple temperature signals with electrical isolation for reliable data in machinery protection systems.

2. Does it support multiple thermocouple types?
   Yes — the module is compatible with standard thermocouple types used in industrial applications.

3. Is the signal isolated from other system paths?
   Yes — electrical isolation helps reduce noise and ground loop effects for accurate measurements.

4. What are the physical dimensions?
   241.3 × 24.4 × 99.1 mm.

5. How much does it weigh?
   Approximately 0.45 kg.

6. How is it installed?
   It mounts into a compatible 3500 series system rack via the backplane.

7. Does it provide status or fault indicators?
   Yes — the module supports operational status reporting for diagnostics.

8. Is it suitable for continuous industrial operation?
   Yes — engineered for 24/7 performance in demanding environments.

9. Can it operate in electrically noisy settings?
   Yes — the isolated design helps assure stable performance despite industrial electrical noise.

10. Is it appropriate for hazardous locations?
    This standard industrial module is intended for general plant environments; consult local standards for certified hazardous area variants.
