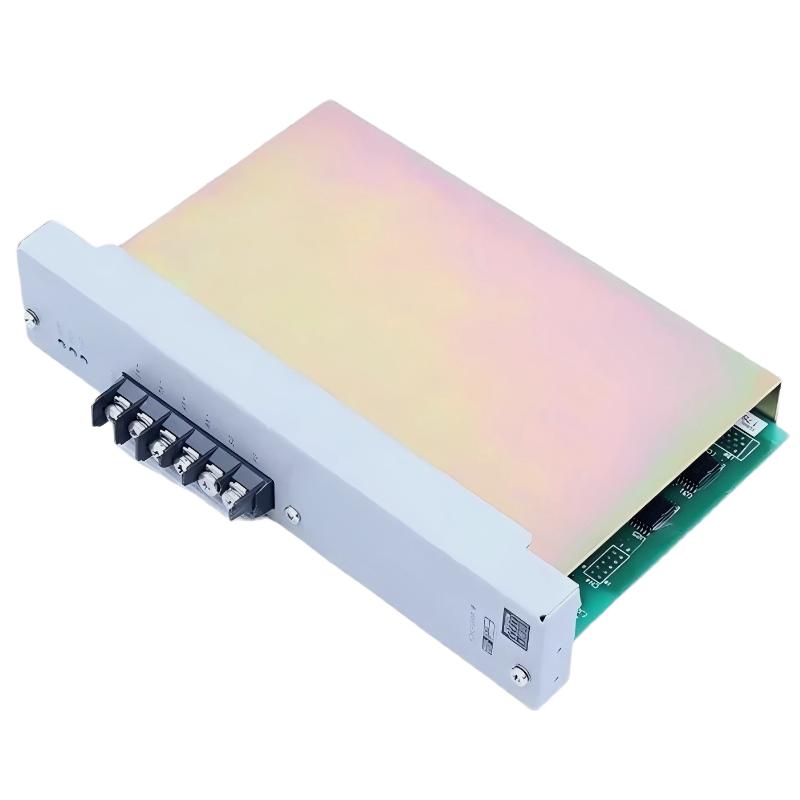

Yokogawa ACM22 RS-422/485 Communication Module

Applications

The Yokogawa ACM22 RS-422/485 Communication Module is designed for high-speed, reliable serial communication in industrial automation and process control systems. It provides robust data transfer between Yokogawa DCS units, remote I/O devices, HMIs, and computers. Typical applications include distributed control, process monitoring, batch control, and multi-device integration in chemical, power, and manufacturing industries.

Advantages

• Compact & Lightweight: 125 × 130 × 248 mm, 0.14 kg, ideal for panel installation.
• Dual Protocol Support: RS-422 and RS-485 compatibility allows flexible network topology.
• High-Speed Data Transmission: Enables real-time monitoring and control of multiple devices.
• Seamless Integration: Fully compatible with Yokogawa DCS and modular I/O systems.
• Plug-and-Play Installation: Quick setup reduces engineering time and system downtime.
• Industrial Reliability: Resistant to vibration, EMI/RFI, and standard environmental stresses.
• Scalable Network Expansion: Supports multiple modules for extended system architecture.
• Improved Data Accuracy: Reduces communication errors in critical processes.
• Flexible Device Connectivity: Interfaces with HMIs, computers, and remote I/O units.
• Optimized for Automation: Ensures efficient and reliable process control.

Technical FAQs

1. What is the main function of the ACM22?
   To provide RS-422/RS-485 serial communication between Yokogawa DCS and external devices.
2. Which devices can it connect to?
   HMIs, computers, remote I/O modules, and other RS-422/RS-485 compatible equipment.
3. Is it compatible with Yokogawa DCS systems?
   Yes, it integrates seamlessly with Yokogawa distributed control platforms.
4. Can it support long-distance communication?
   Yes, RS-422/RS-485 protocols allow extended cable runs for distributed systems.
5. Is it suitable for multi-device networks?
   Yes, multiple modules can be connected in series or parallel for larger networks.
6. Does it require software for operation?
   Basic plug-and-play operation is supported; configuration is managed via standard Yokogawa interfaces.
7. Is it durable in industrial conditions?
   Yes, it withstands vibration, electrical noise, and temperature variations typical in industrial environments.
8. Does it support real-time data transfer?
   Yes, high-speed communication ensures minimal latency for process control.
9. Can it be mounted on panels?
   Yes, compact design allows easy panel mounting in control cabinets.
10. What applications is it best suited for?
    Distributed control, batch control, process monitoring, and multi-device integration in industrial automation.
