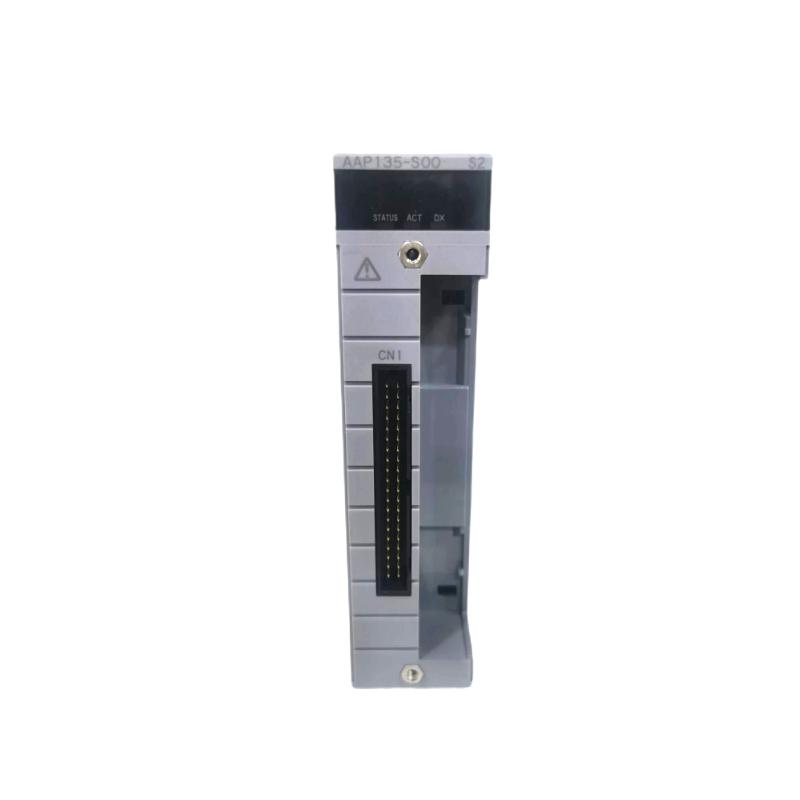

Yokogawa AAP135-S50 Analog Input/Output Module Brand New Original

Applications

• Process Automation – Provides precise analog data for pressure, temperature, flow, and level control loops.

• Manufacturing Execution Systems – Interfaces with sensors and actuators to support synchronized machine operation.

• Energy & Utility Systems – Monitors and controls analog field devices for power distribution and grid management.

• Environmental Monitoring – Collects and transmits analog signals from environmental sensors for analysis and control.

Advantages

• Optimized Channel Configuration – 6 inputs and 6 outputs in one module balance acquisition and control capability without wasting rack space.

• High Precision & Resolution – 16-bit resolution offers finely detailed signal conversions for both measurement and actuation.

• Fast Operational Response – 1000 Hz input sampling and 2 ms output response help meet real-time control demands.

• Galvanic Isolation for Signal Integrity – Isolation between channels improves reliability in electrically noisy environments.

• Robust Industrial Design – Built to withstand wide temperature ranges and harsh operating conditions.

• Compact Modular Form – Space-efficient design simplifies installation and expansion within control enclosures.

Technical FAQs

1. How many analog input and output channels does the AAP135-S50 have?
   It supports 6 analog input channels and 6 analog output channels.

2. What signal types are supported by the module?
   It accepts both voltage (–10 V to +10 V) and current (4–20 mA) signals for input and output functions.

3. What is the resolution of the module?
   The AAP135-S50 features a 16-bit resolution for accurate analog processing.

4. What is the sampling rate for analog inputs?
   Inputs are sampled at a rate of 1000 Hz for timely data acquisition.

5. What is the response time for analog outputs?
   Each output channel responds in approximately 2 ms, supporting real-time control loops.

6. Does the AAP135-S50 provide isolation between channels?
   Yes, the module includes galvanic isolation to reduce interference and improve signal quality.

7. What are the physical dimensions of the module?
   The module measures 55 mm (W) × 125 mm (H) × 150 mm (D).

8. How much does the AAP135-S50 weigh?
   The module weighs approximately 0.38 kg.

9. What is the operating temperature range?
   It is designed to operate between −20 °C and +60 °C, suitable for a wide range of industrial environments.

10. In what applications is the AAP135-S50 typically used?
    It is commonly used in process control, industrial automation, energy and utility systems, and environmental monitoring where reliable analog I/O is needed.
