Brand:Yokogawa Electric Item No.:F3WD32-3F Product Origin:Japan Product Dimensions:28.9 × 100 × 83.2 mm Product Weight:0.14 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

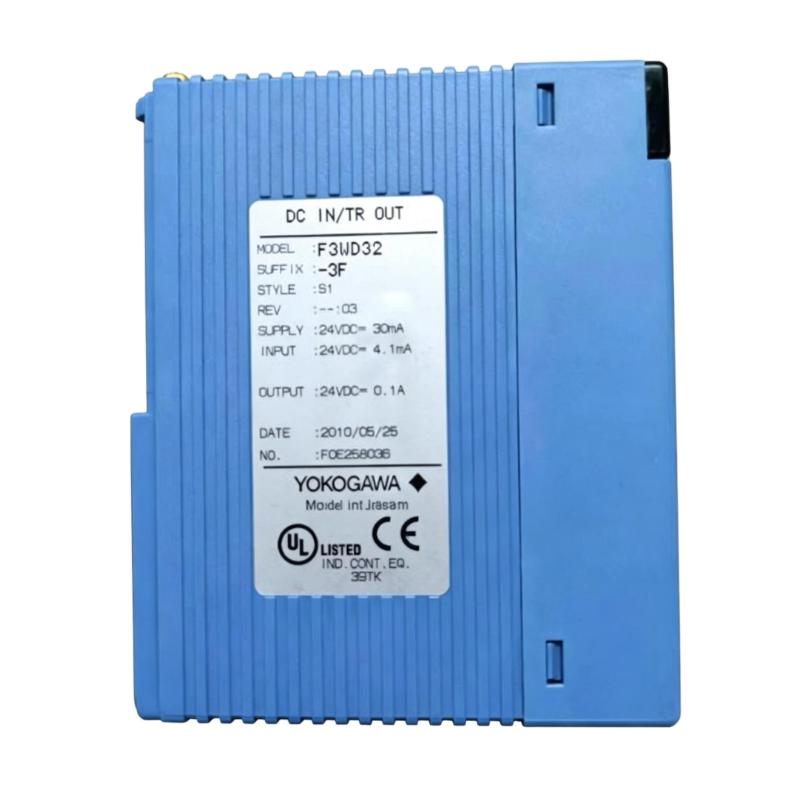

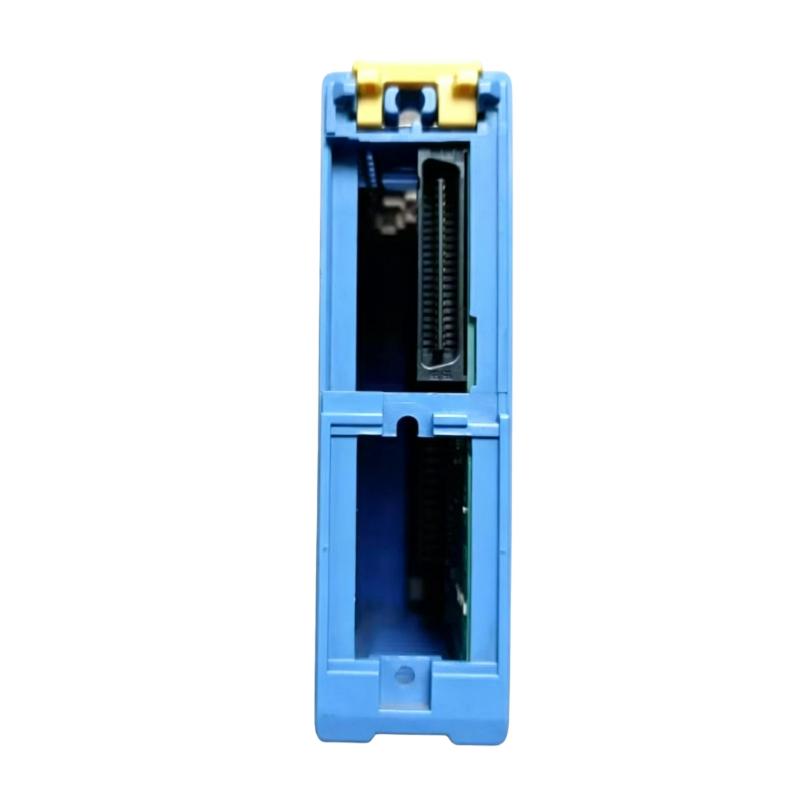

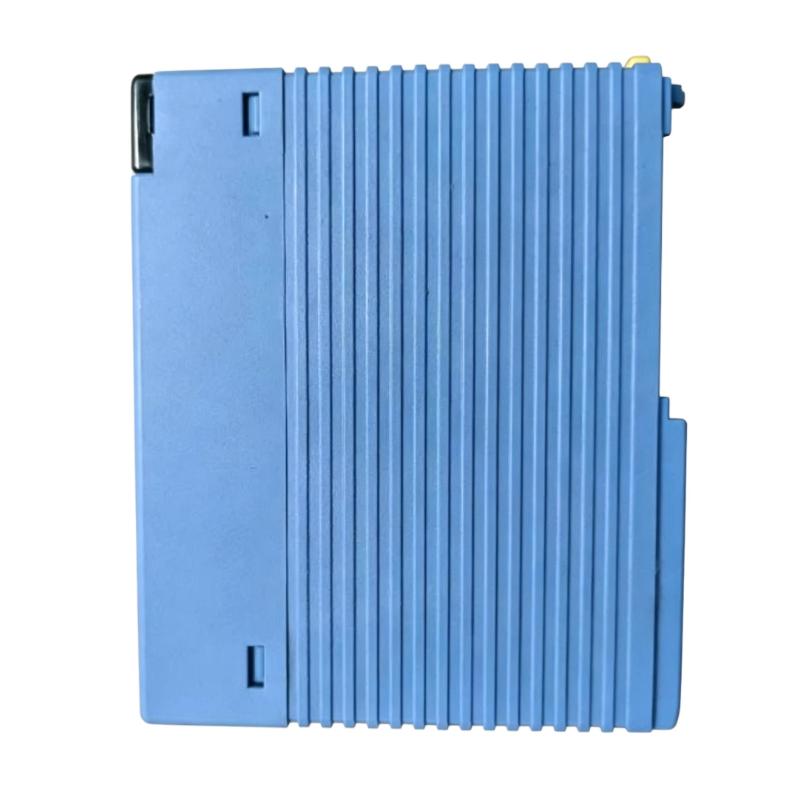

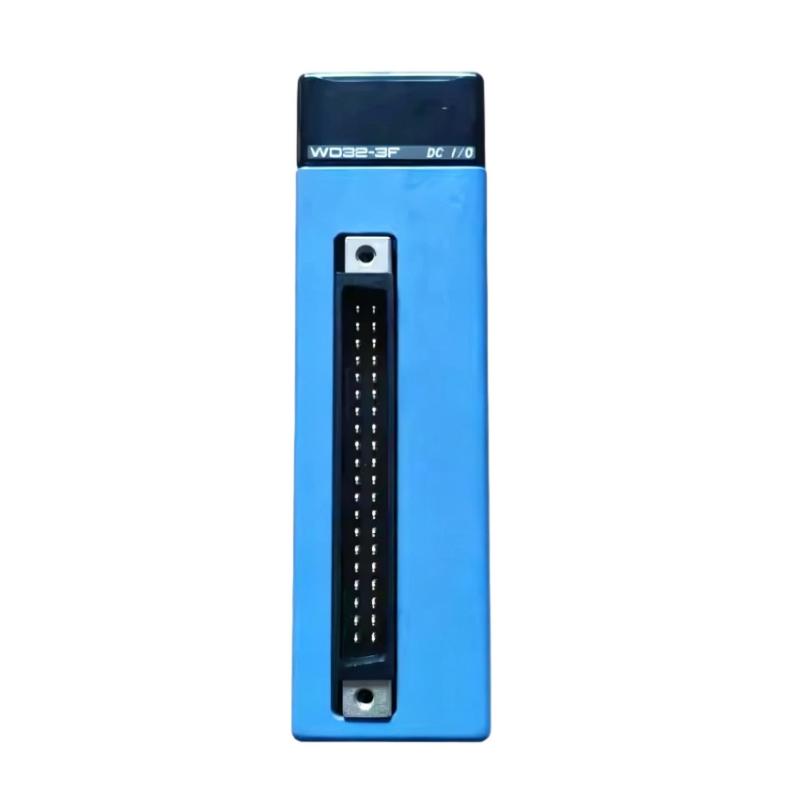

The Yokogawa F3WD32-3F DC Input/Output Module is a compact and efficient solution for handling discrete signal processing in industrial automation systems. Designed for Yokogawa control architectures, it integrates DC input and output functions into a single module, supporting reliable and flexible control of field devices in process environments.
Technical Specifications
Parameter
Specification
Product Type
DC Input/Output Module
Function
Digital signal processing (Input & Output)
Signal Type
DC discrete signals
Compatibility
Yokogawa control systems
Installation
Rack-mounted module
Operating Environment
Industrial automation systems
Dimensions
28.9 × 100 × 83.2 mm
Weight
0.14 kg
Recommended Related Models
Model
Product Name
F3XD64-3N
High-density DC Input Module
F3YD32-1F
DC Output Module
AAI141-S00
Analog Input Module
ADV551-P50
Digital Output Module
Popular Related Models
Model
Product Name
F3XD32-1N
DC Input Module
F3YD64-3F
DC Output Expansion Module
ALR121-S00
Communication Interface Unit
CP461-10
Processor Module
Applications
• Handling discrete DC input and output signals in Yokogawa industrial control systems.
• Interfacing field devices such as sensors, switches, relays, and actuators.
• Supporting real-time control logic execution in process automation environments.
• Enabling compact I/O expansion for distributed control architectures.
• Providing reliable signal exchange in manufacturing and plant automation systems.
Key Advantages
• Compact design enables high-density installation in control cabinets.
• Combines DC input and output functions in a single efficient module.
• Ensures stable and reliable signal processing for industrial applications.
• Designed for seamless integration within Yokogawa control systems.
• Reduces wiring complexity and improves system organization efficiency.
Technical FAQs
Q1: What is the primary function of the F3WD32-3F module?
It processes both DC digital input and output signals in industrial automation systems.
Q2: What types of devices can be connected to this module?
It supports field devices such as switches, sensors, relays, and actuators.
Q3: Is this module suitable for Yokogawa control systems?
Yes, it is designed for integration within Yokogawa distributed control environments.
Q4: Does it support both input and output simultaneously?
Yes, it provides combined DC input and output functionality.
Q5: Can it be used in compact control panels?
Yes, its small footprint makes it ideal for space-limited installations.
Q6: Does the module require software configuration?
Yes, configuration is performed through the associated Yokogawa system tools.
Q7: Is signal isolation included in the module design?
Isolation depends on system configuration and connected hardware architecture.
Q8: Can it operate in continuous industrial environments?
Yes, it is designed for continuous-duty operation in process automation systems.
Q9: What happens if a connected field device fails?
The system may detect abnormal input/output conditions depending on configuration.
Q10: Does the module require regular maintenance?
No routine maintenance is required beyond standard system inspection procedures.
