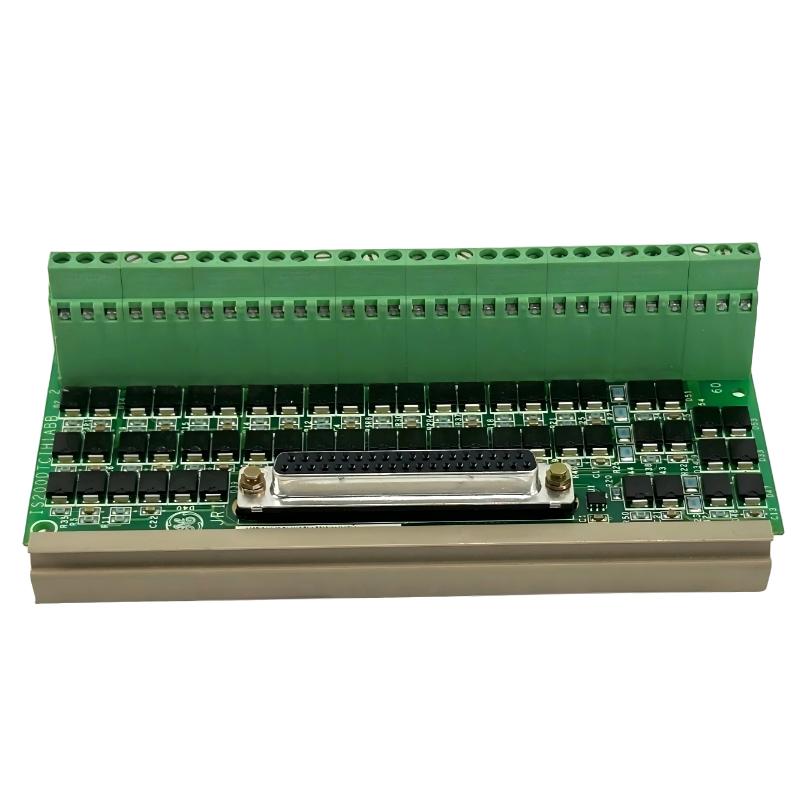

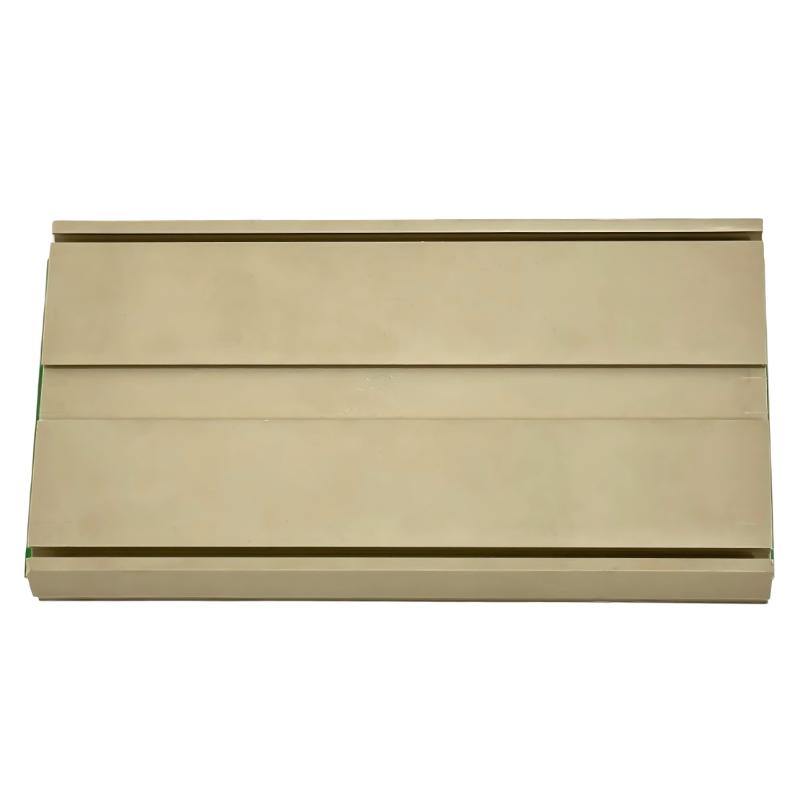

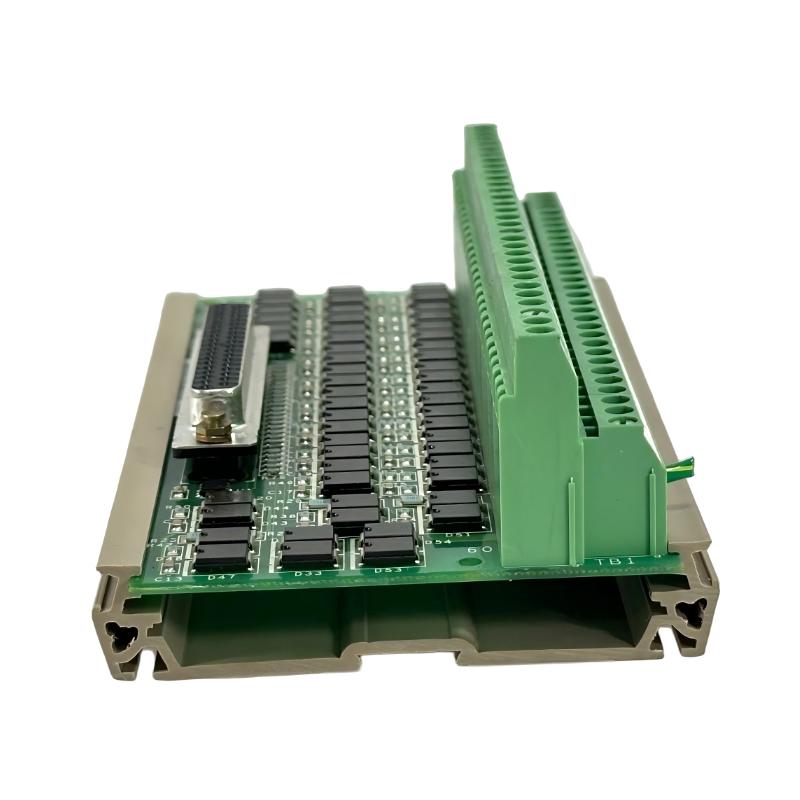

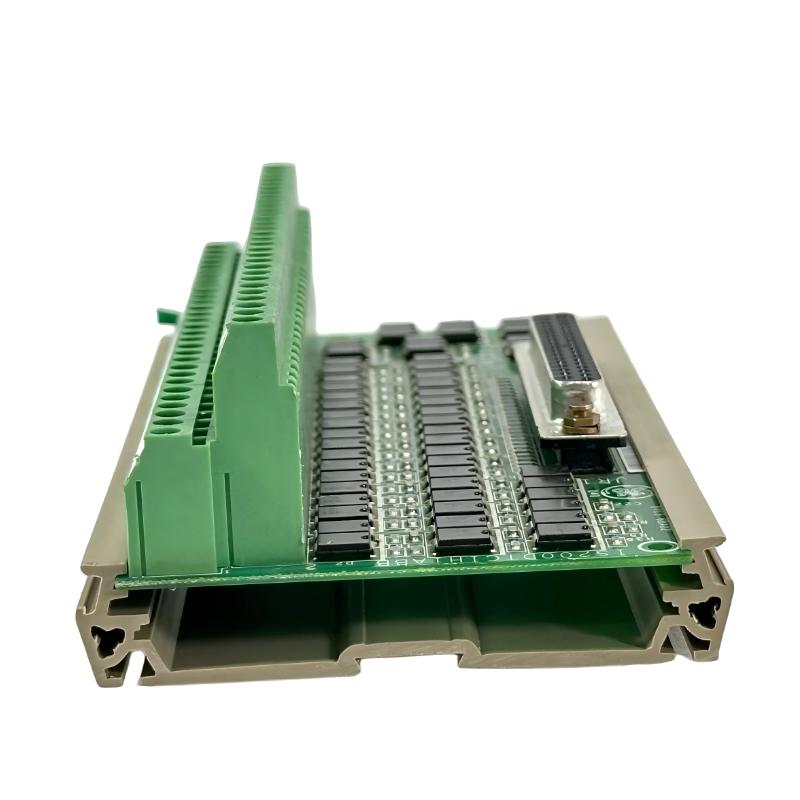

GE IS230STTCH2A Simplex Thermocouple Input Module Terminal Block
GE IS230STTCH2A Simplex Thermocouple Input Module Terminal Block
0.0
Points
Brand:GE Fanuc PLC Item No.:IS230STTCH2A Product Origin:USA Product Dimensions:210 × 165 × 35 mm Product Weight:0.48 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE IS230STTCH2A Simplex Thermocouple Input Module Terminal Block provides accurate and reliable temperature measurement for industrial automation. Its compact and rugged design ensures continuous operation in demanding environments, while advanced circuitry delivers cold junction compensation, noise immunity, and fault diagnostics. This module integrates seamlessly with GE control platforms to optimize processes, maintain system safety, and deliver precise thermocouple readings for critical applications.
Technical Specifications
Specification
Details
Module Type
Simplex Thermocouple Input Terminal Block
Thermocouple Support
J, K, T, E, R
Ambient Temperature
0°C to 70°C
Signal Isolation
Galvanic isolation included
Response Time
<200 ms
Mounting
DIN rail compatible
Dimensions
210 × 165 × 35 mm
Weight
0.48 kg
Recommended Related Models
Model
Product Name
GE IS230STTCH4A
Quad Thermocouple Input Module
GE IS230AI4
Analog Input Module (Temperature & Voltage)
GE IS230RTD4A
Quad RTD Input Module
GE IS230DCM
Digital Communication Module for GE I/O
Popular Related Models
Model
Product Name
GE IS230OTCH2A
Simplex Thermocouple Output Module
GE IS230DI8
Digital Input Module, 8 Channels
GE IS230DO8
Digital Output Module, 8 Channels
GE IS230AI8
Analog Input Module, 8 Channels
Applications
• Precise temperature monitoring in industrial automation.
• Integration with GE ArmorPoint I/O systems for seamless control.
• Power generation and chemical processing plants for accurate process data.
• Manufacturing process optimization and safety-critical monitoring.
• Data acquisition and interface with SCADA and DCS systems.
Key Advantages
• High measurement accuracy across multiple thermocouple types (J, K, T, E, R).
• Rugged and durable construction resistant to vibration and electromagnetic interference.
• Plug-and-play installation reduces wiring errors and simplifies setup.
• Compact design saves panel space without compromising performance.
• Built-in cold junction compensation and fault diagnostics for reliable operation.
Technical FAQs
1. What thermocouple types are supported?
Supports J, K, T, E, and R types for versatile industrial applications.
2. Can it operate in high-temperature environments?
It is rated for ambient temperatures up to 70°C without loss of accuracy.
3. How is signal integrity maintained?
The module features internal cold junction compensation and noise filtering for accurate readings.
4. Is it compatible with existing GE automation systems?
Yes, it is fully compatible with GE IS230 and ArmorPoint I/O platforms.
5. What is the response time for temperature changes?
Typical response time is under 200 ms for most thermocouples.
6. Does it support redundant systems?
Yes, it can be integrated into redundant I/O architectures for high reliability.
7. How are module diagnostics handled?
The module provides error flags for open thermocouple detection and signal faults.
8. Can it be hot-swapped during operation?
It is designed for safe module replacement without shutting down the system.
9. What isolation features does it have?
Galvanic isolation protects the control system from voltage spikes and ground loops.
10. Is calibration required after installation?
Minimal calibration is needed, as built-in compensation ensures accurate readings.
