Brand:Yokogawa Electric Item No.:AVR10D-Q21020 Product Origin:Japan Product Dimensions:482.6 x 132.5 x 169 mm Product Weight:5.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

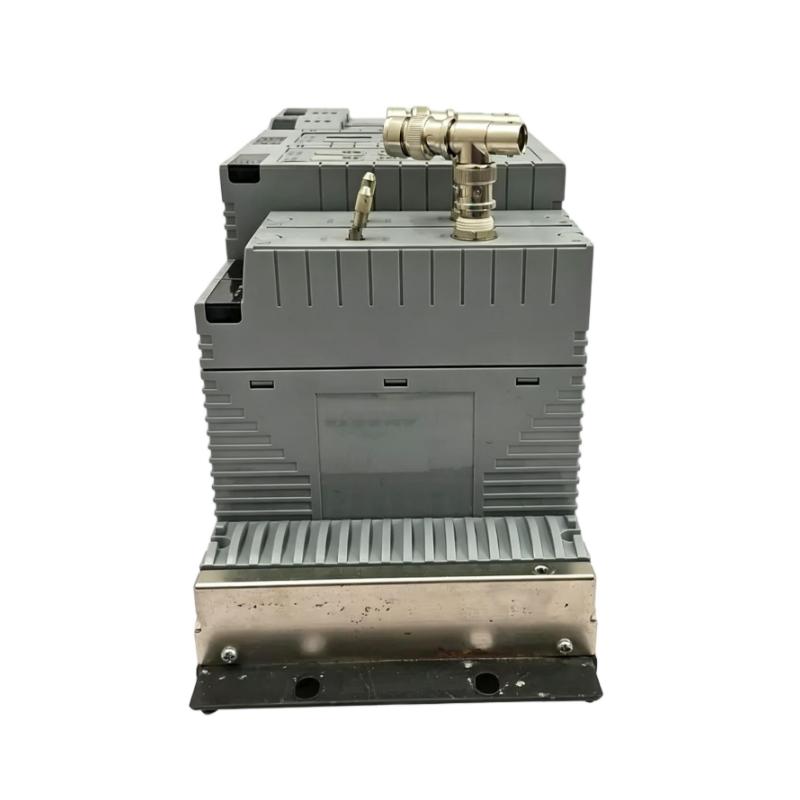

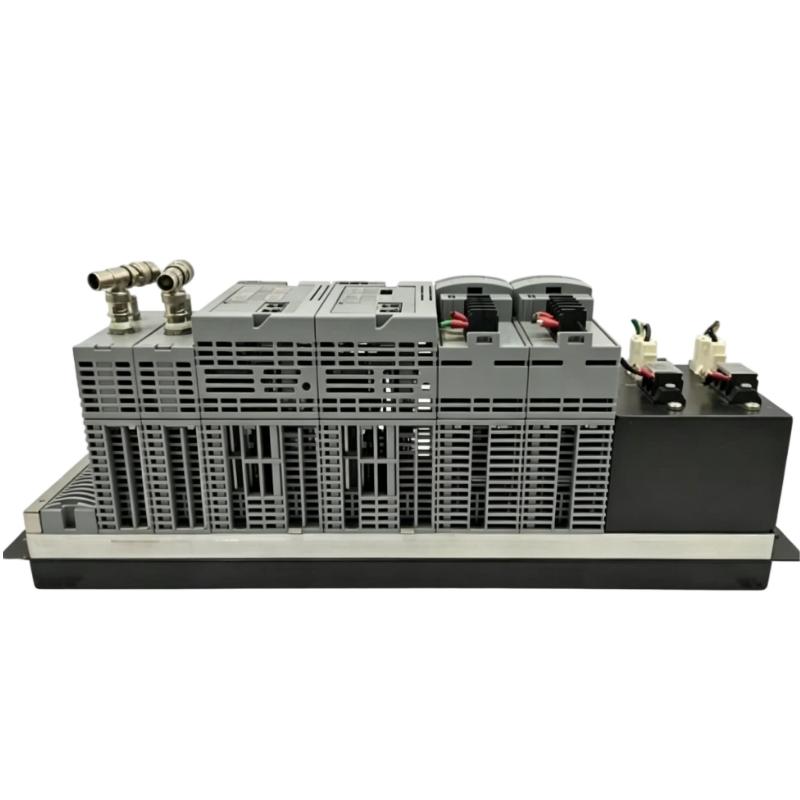

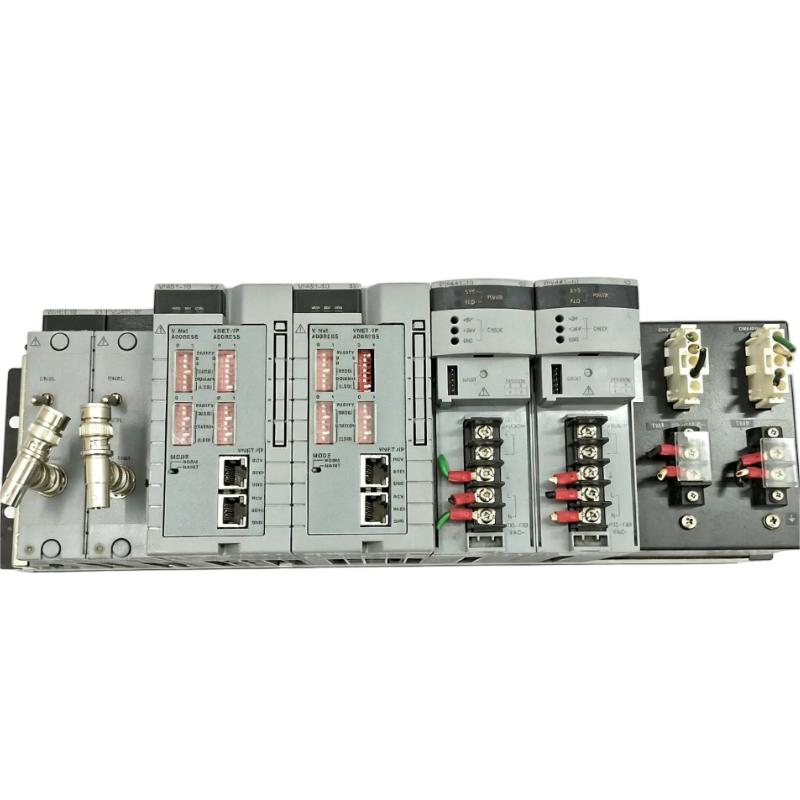

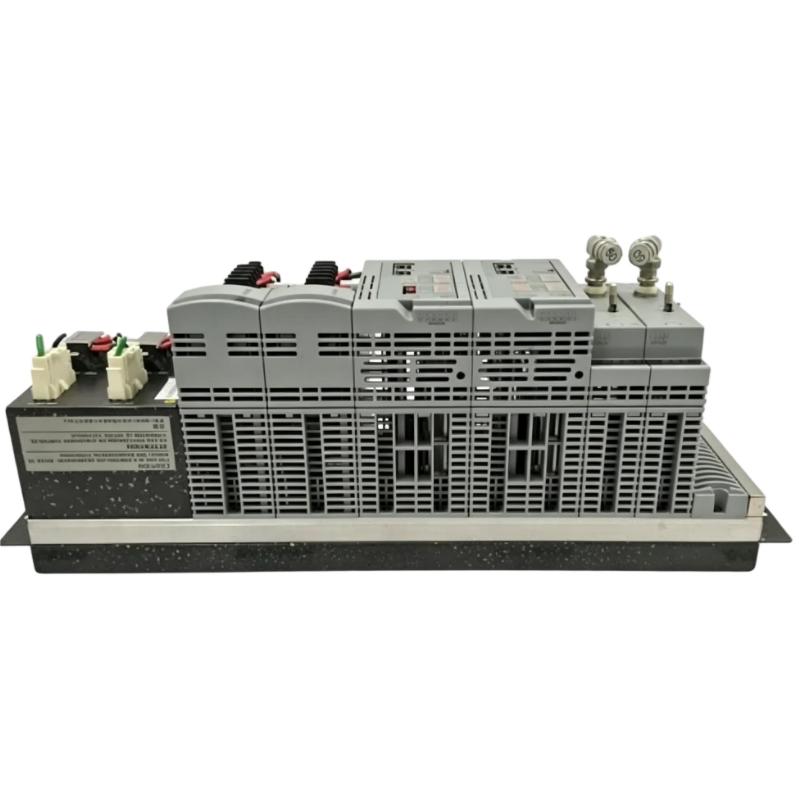

The Yokogawa AVR10D-Q21020 Full-duplex Vnet Router provides high-speed, reliable communication across Vnet networks in industrial automation systems. Designed for Yokogawa DCS environments, it ensures seamless routing of data between distributed controllers and field devices. Its rugged construction, built-in diagnostics, and flexible network integration make it ideal for large-scale industrial operations requiring reliable and continuous process control.
Technical Specifications
Specification
Details
Module Type
Full-duplex Vnet Router
Dimensions
482.6 × 132.5 × 169 mm
Weight
5.8 kg
Function
High-speed network routing for Vnet communication
Mounting
Control cabinet compatible
Operating Temperature
0°C to 60°C
Construction
Rugged industrial-grade design
Diagnostics
LED indicators for network status and traffic
Recommended Related Models
Model
Product Name
Yokogawa AVR10D-Q21010
Standard Vnet Router Module
Yokogawa AVR10D-Q21030
High-capacity Vnet Router
Yokogawa AVR10D-Q21040
Redundant Vnet Router Module
Yokogawa AVR10D-Q21050
Managed Vnet Router with Diagnostics
Popular Related Models
Model
Product Name
Yokogawa AVR10D-Q21100
Vnet Switch Module
Yokogawa AVR10D-Q21200
Vnet Repeater Module
Yokogawa AVR10D-Q21300
Vnet Interface Module
Yokogawa AVR10D-Q21400
Vnet Network Expansion Module
Applications
• Provides high-speed, full-duplex communication across Vnet networks in industrial systems.
• Facilitates reliable data routing between distributed controllers and field devices.
• Integration with Yokogawa DCS (Distributed Control Systems) for process automation.
• Supports real-time monitoring and control in large-scale industrial operations.
• Enhances network flexibility, enabling seamless expansion of control and automation systems.
Key Advantages
• Offers full-duplex Vnet communication for high-speed, reliable data transfer.
• Supports robust network routing to ensure consistent system performance.
• Compact design allows installation in standard control cabinets while handling heavy traffic.
• Simplifies network management and system integration across multiple devices.
• Rugged construction ensures long-term operation in demanding industrial environments.
Technical FAQs
1. What is the primary function of the AVR10D-Q21020 router?
It routes full-duplex Vnet communication between distributed controllers and field devices.
2. Is it compatible with all Yokogawa Vnet devices?
Yes, it integrates seamlessly with Yokogawa DCS and Vnet-compatible equipment.
3. Can it handle high network traffic?
Yes, it supports full-duplex communication for reliable high-speed data transfer.
4. How is the module mounted?
It is designed for installation in standard industrial control cabinets.
5. Can it operate in harsh industrial environments?
Yes, it is built to withstand vibration, dust, and electromagnetic interference.
6. Are diagnostics available?
Yes, LEDs indicate network status, traffic, and operational health.
7. Is configuration required before operation?
Yes, initial setup is required to define routing and network parameters.
8. Does it support real-time process control?
Yes, it is optimized for reliable, low-latency communication in automation systems.
9. Can it be used to expand existing networks?
Yes, it enables network extension and integration of additional controllers and devices.
10. What is the operating temperature range?
The module operates reliably between 0°C and 60°C.
