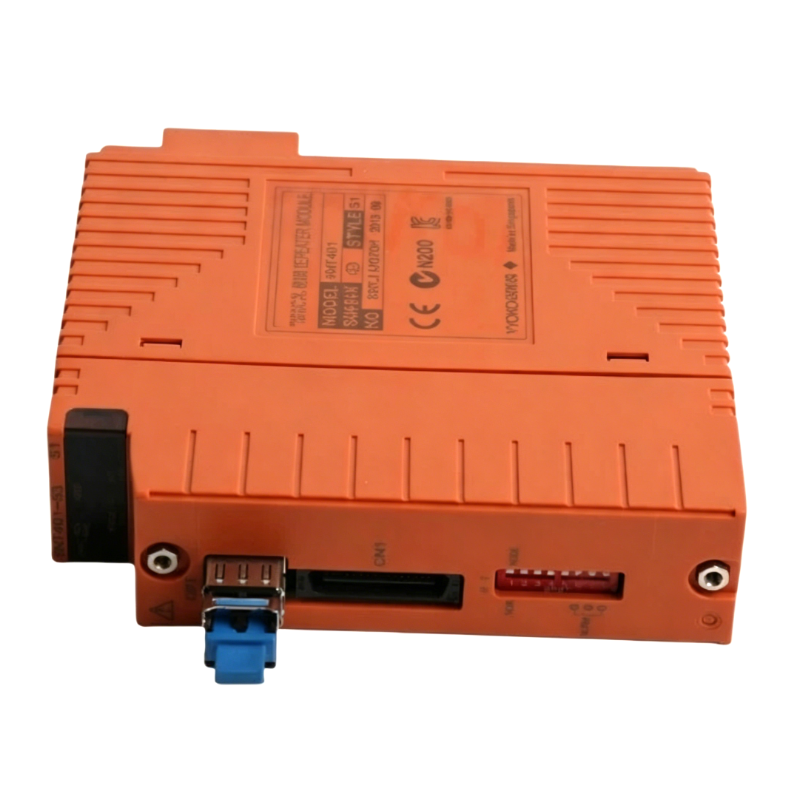

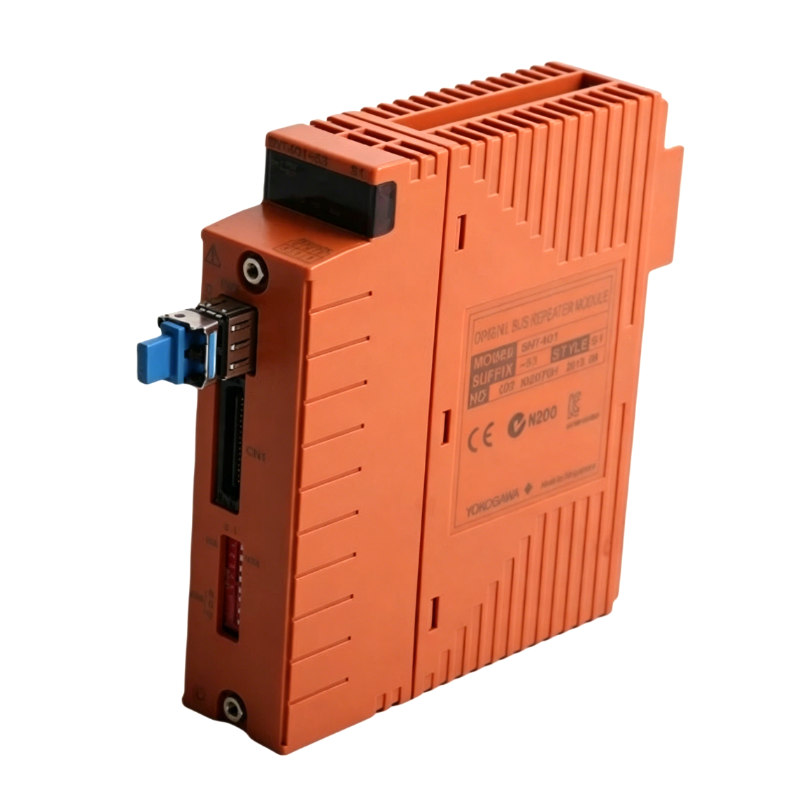

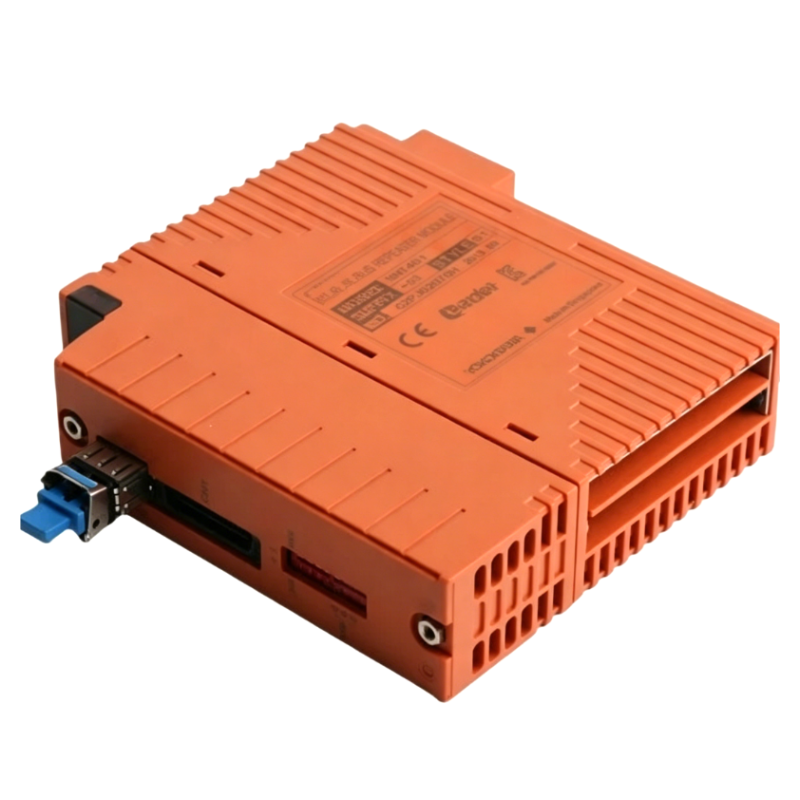

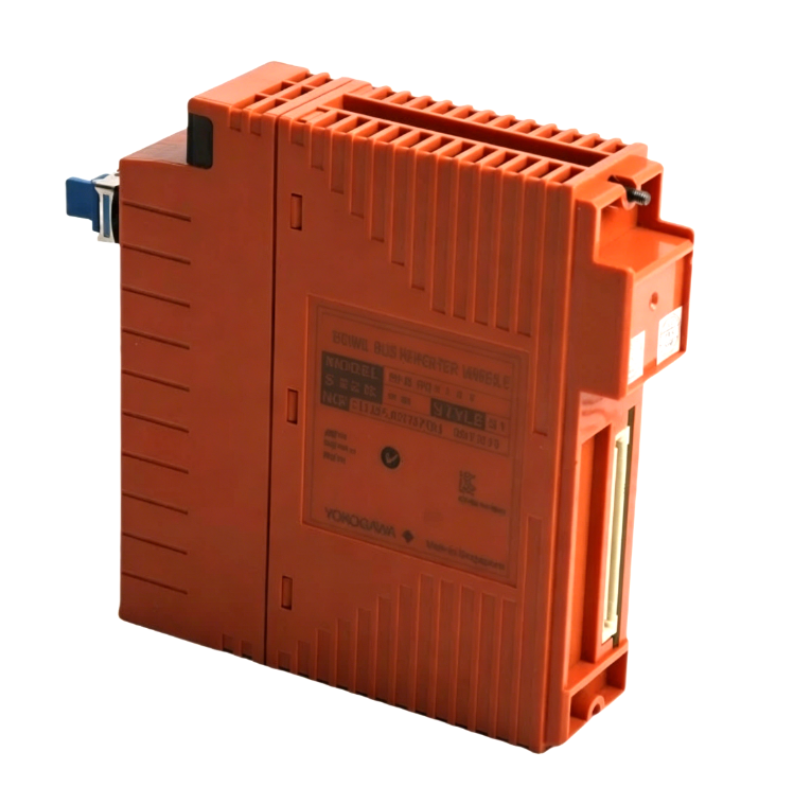

Yokogawa SNT401-13 Fiber Optic ESB Bus Repeater Module
Yokogawa SNT401-13 Fiber Optic ESB Bus Repeater Module
0.0
Points
Brand:Yokogawa Electric Item No.:SNT401-13 Product Origin:Japan Product Dimensions:142.5 x 130 x 32.8 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Yokogawa SNT401-13 Fiber Optic ESB Bus Repeater Module ensures reliable and extended communication across fiber optic ESB networks in industrial automation systems. Designed for integration with Yokogawa DCS, it regenerates signals for long-distance data transmission, enabling seamless connection of distributed I/O modules. Its compact, rugged construction and built-in diagnostics make it ideal for maintaining high-speed, real-time communication in demanding industrial environments.
Technical Specifications
Specification
Details
Module Type
Fiber Optic ESB Bus Repeater Module
Dimensions
142.5 × 130 × 32.8 mm
Weight
0.3 kg
Function
Extends and regenerates ESB network signals
Mounting
Control panel or rack compatible
Operating Temperature
0°C to 60°C
Construction
Rugged industrial-grade design
Diagnostics
LED indicators for network status and signal health
Recommended Related Models
Model
Product Name
Yokogawa SNT401-11
ESB Bus Repeater Module
Yokogawa SNT401-12
Fiber Optic Repeater Module (alternate version)
Yokogawa SDV541-S53/STB4D-00
Digital Output Module
Yokogawa SDV144-S53/STB4D-00
Numeric Input Module
Popular Related Models
Model
Product Name
Yokogawa SNT401-13A
Fiber Optic ESB Bus Repeater Module (alternate config)
Yokogawa SDV541-S53/STB4G-00
Digital Output Expansion Module
Yokogawa SDV541-S53/STB4H-00
Relay Output Module
Yokogawa SDV144-S53/STB4F-00
High-Speed Numeric Input Module
Applications
• Extends and strengthens communication signals across ESB (Enhanced Serial Bus) networks.
• Enables reliable data transmission over long distances in industrial fiber optic networks.
• Supports Yokogawa DCS (Distributed Control Systems) for high-speed, real-time process control.
• Facilitates integration of distributed I/O modules in large-scale automation systems.
• Provides signal regeneration to maintain integrity and reduce data errors in harsh industrial environments.
Key Advantages
• Enhances communication range and reliability across fiber optic ESB networks.
• Compact, lightweight design allows flexible installation in control panels or racks.
• Provides consistent, low-latency signal regeneration for real-time control applications.
• Rugged construction ensures dependable operation under vibration, dust, and electrical noise.
• Simplifies network expansion by supporting multiple fiber optic segments without performance loss.
Technical FAQs
1. What is the primary function of the SNT401-13 module?
It acts as a fiber optic repeater to strengthen and extend ESB network signals.
2. Is it compatible with Yokogawa DCS systems?
Yes, it integrates seamlessly with Yokogawa Distributed Control Systems.
3. Can it handle long-distance communication?
Yes, it regenerates signals to maintain reliability over extended fiber optic runs.
4. How is the module mounted?
It is designed for installation in standard control panels or racks.
5. Can it operate in harsh industrial environments?
Yes, it is built to withstand vibration, dust, and electrical interference.
6. Are diagnostics available?
Yes, LED indicators provide status monitoring and signal health.
7. Is configuration required before use?
Minimal setup is needed; it operates automatically upon integration into the ESB network.
8. Does it introduce latency in the network?
No, it is designed to provide low-latency signal regeneration suitable for real-time applications.
9. Can it support multiple fiber optic segments?
Yes, it allows seamless extension of multiple ESB fiber segments.
10. What is the operating temperature range?
The module operates reliably between 0°C and 60°C.
