Product Overview

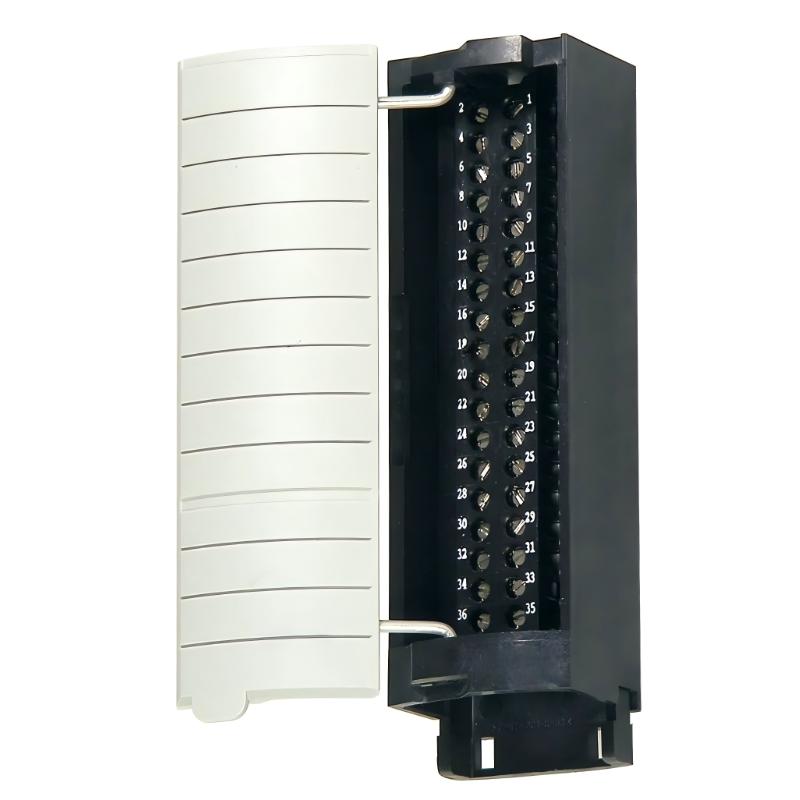

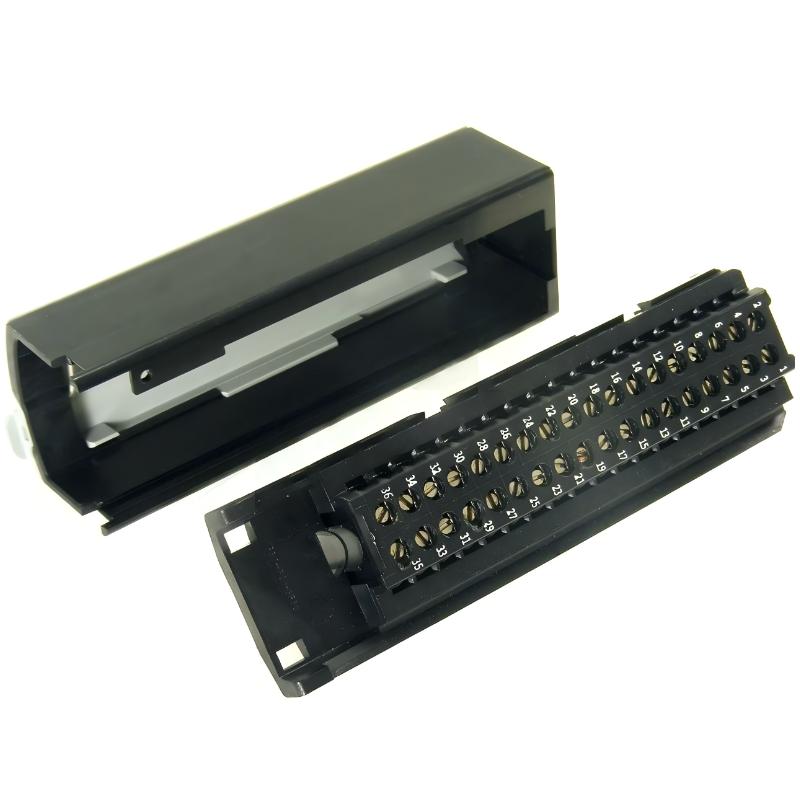

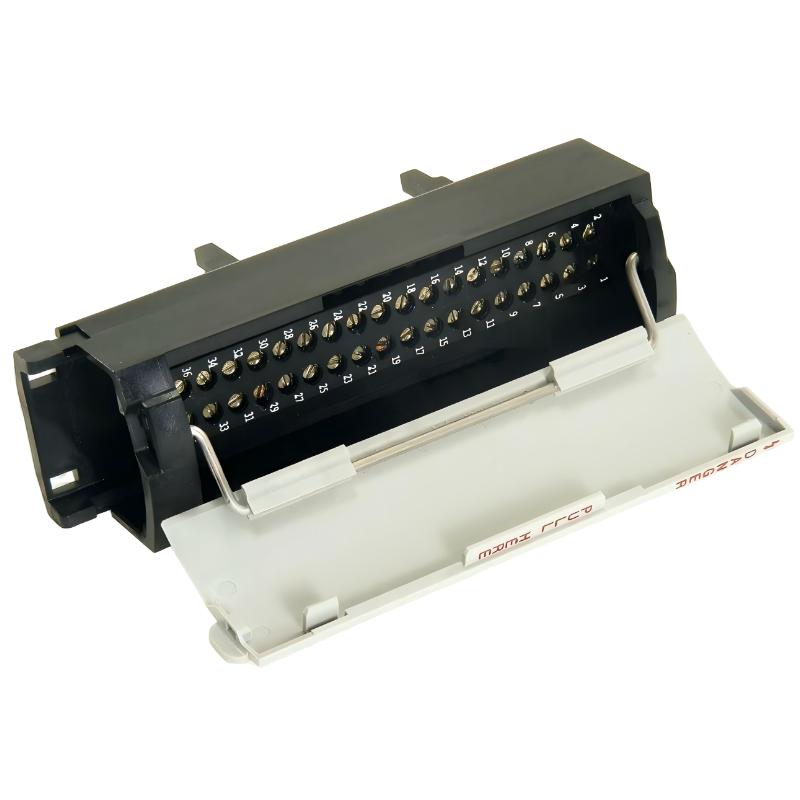

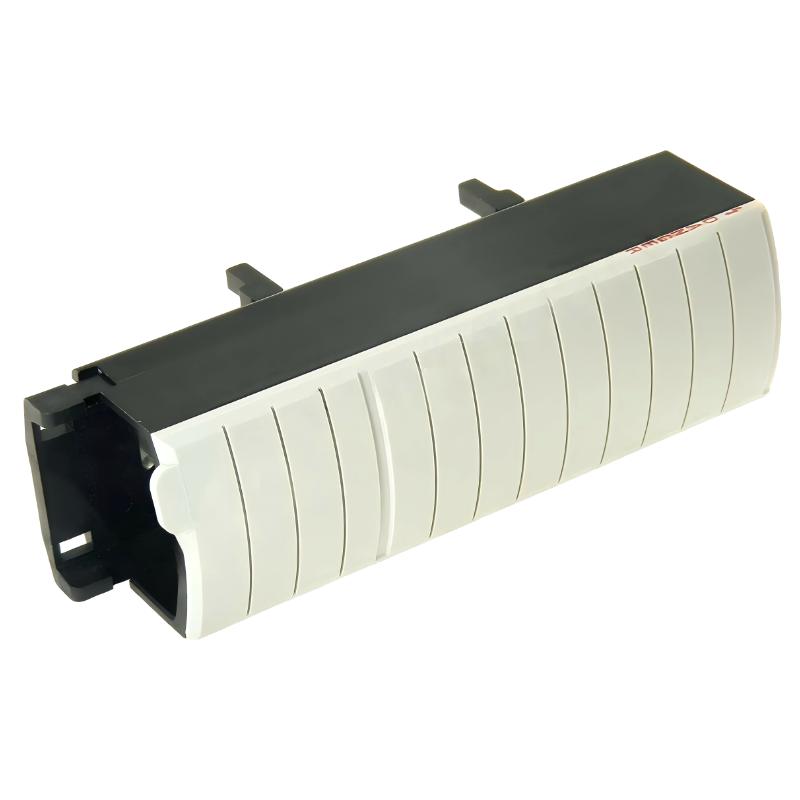

The Allen-Bradley 1756-TBCH ControlLogix 36-Pin Cage-Clamp Terminal Block is an industrial-grade signal termination component designed for ControlLogix PLC systems. It provides a secure and efficient interface between field wiring and I/O modules, ensuring stable signal transmission in demanding industrial environments. With its cage-clamp connection technology, it enhances installation efficiency, reduces wiring errors, and improves long-term system reliability in automation, process control, and heavy industrial applications.

Technical Specifications

Parameter	Specification
Product Model	1756-TBCH
Product Type	Cage-Clamp Terminal Block
Pin Count	36-Pin
Dimensions	132 × 54 × 110 mm
Weight	0.118 kg
Function	Signal Termination Interface
System Compatibility	ControlLogix I/O Modules
Wiring Type	Cage-Clamp Connection
Installation Type	Control Cabinet / PLC Rack
Operating Environment	Industrial Automation Systems

Recommended Related Models

Model Number	Product Name
1756-TBS6H	Spring-Style Terminal Block
1756-IF8	Analog Input Module
1756-OF8	Analog Output Module
1756-L71K	ControlLogix Processor

Popular Related Models

Model Number	Product Name
1756-EN2T	EtherNet/IP Communication Module
1756-PA75	Power Supply Module
1756-IRT8I	RTD Input Module
1756-CN2R	ControlNet Bridge Module

Applications

• Signal termination interface for ControlLogix I/O modules in PLC systems.

• Industrial automation control cabinets in manufacturing environments.

• Process control systems in oil and gas and petrochemical industries.

• Power generation auxiliary system signal wiring and distribution.

• Motor control centers (MCC) and machine automation panels.

• Distributed I/O wiring organization in large-scale automation systems.

• Sensor and actuator field wiring termination in industrial machinery.

• High-density signal management in ControlLogix rack assemblies.

Key Advantages

• Cage-clamp design enables fast, secure, and maintenance-friendly wiring.

• Improves wiring organization and reduces installation complexity.

• Ensures stable and reliable electrical contact for industrial signals.

• Designed for seamless integration with ControlLogix I/O modules.

• Compact structure optimized for control cabinet space efficiency.

• Strong resistance to vibration and industrial operating conditions.

• Supports efficient troubleshooting and field maintenance operations.

• Enhances overall system reliability through secure signal termination.

Technical FAQs

Q1: What is the main function of this terminal block?
A1: It provides a secure connection interface between field wiring and ControlLogix I/O modules.

Q2: What is cage-clamp technology?
A2: It is a spring-based wiring method that ensures stable and vibration-resistant electrical connections.

Q3: Where is this terminal block used?
A3: It is used in industrial automation systems, control cabinets, and PLC wiring applications.

Q4: Is it compatible with all ControlLogix modules?
A4: It is designed for use with compatible ControlLogix I/O module systems.

Q5: Does it improve wiring safety?
A5: Yes, it provides secure and stable connections that reduce wiring failure risks.

Q6: Can it be used in high-vibration environments?
A6: Yes, the cage-clamp design is resistant to vibration and loosening.

Q7: Does it simplify installation?
A7: Yes, it allows faster and more efficient wiring compared to screw terminals.

Q8: What industries commonly use it?
A8: Manufacturing, oil and gas, petrochemical, and power generation industries.

Q9: Does it require maintenance?
A9: Only periodic inspection of terminal connections is required.

Q10: What is the benefit of using a terminal block in PLC systems?
A10: It improves wiring organization, system reliability, and maintenance efficiency.
