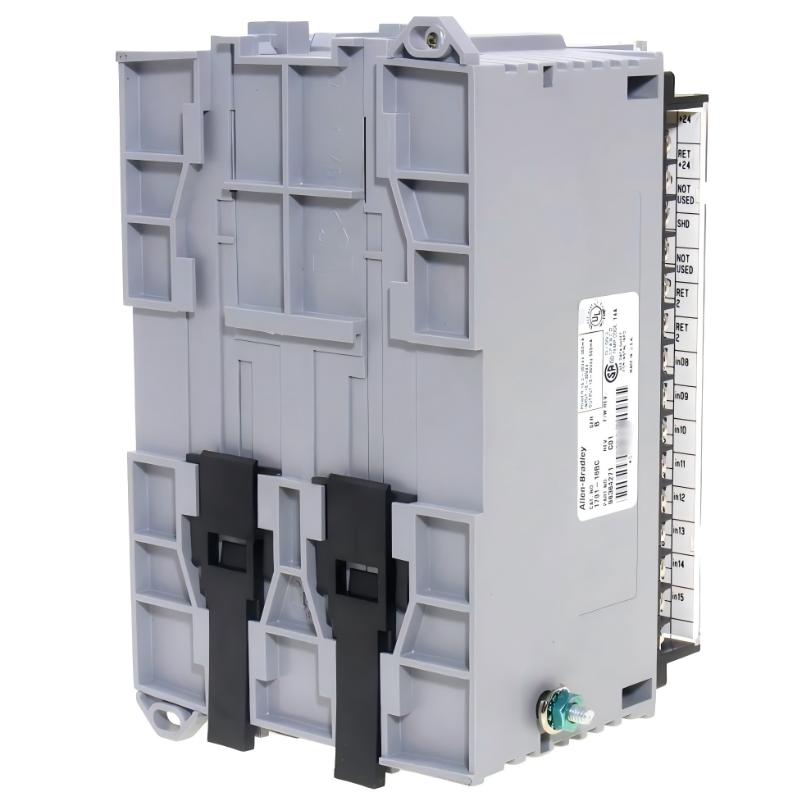

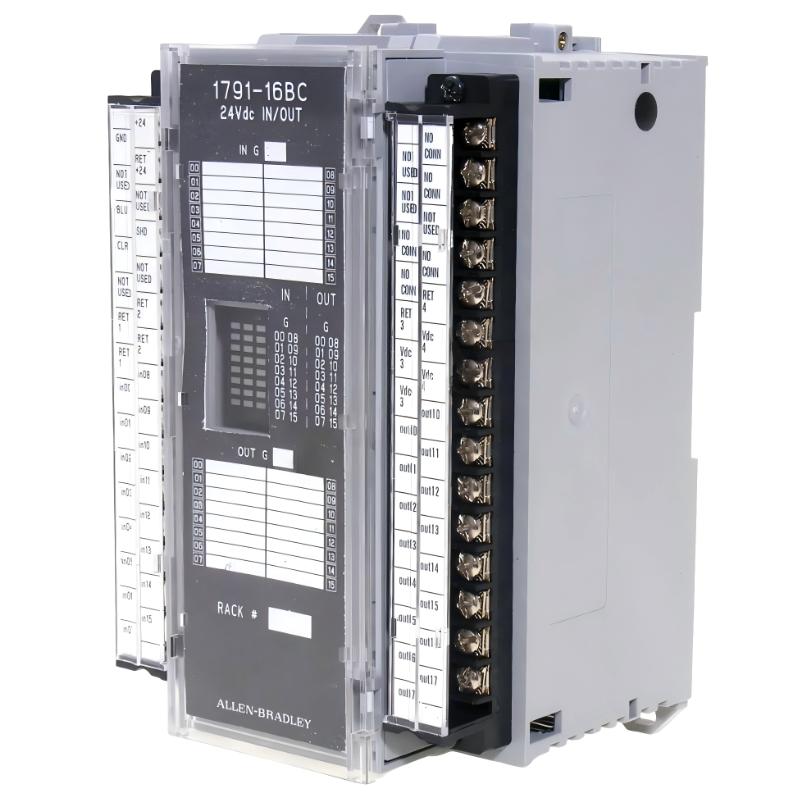

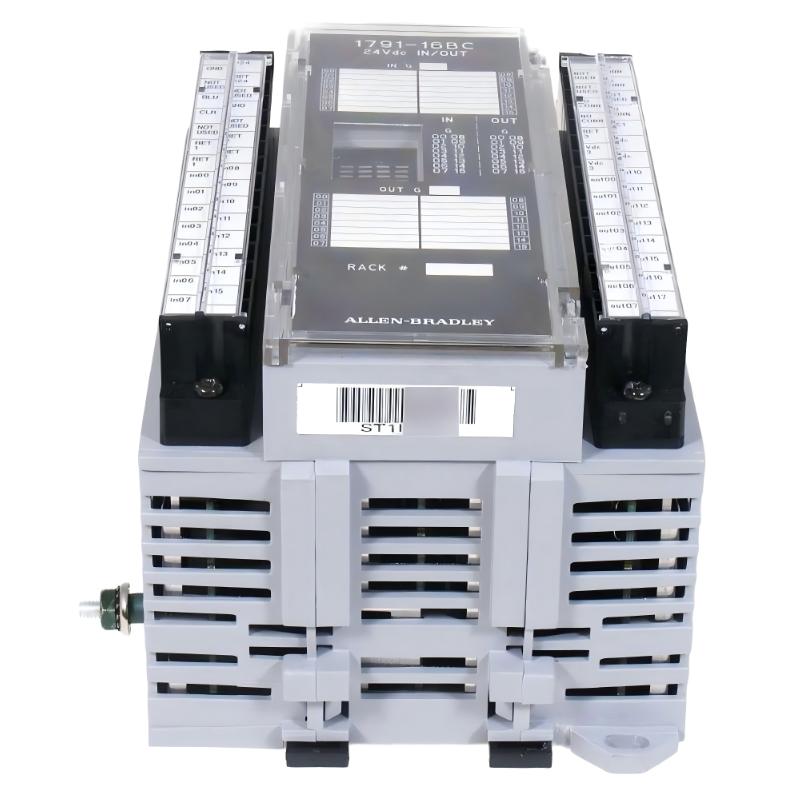

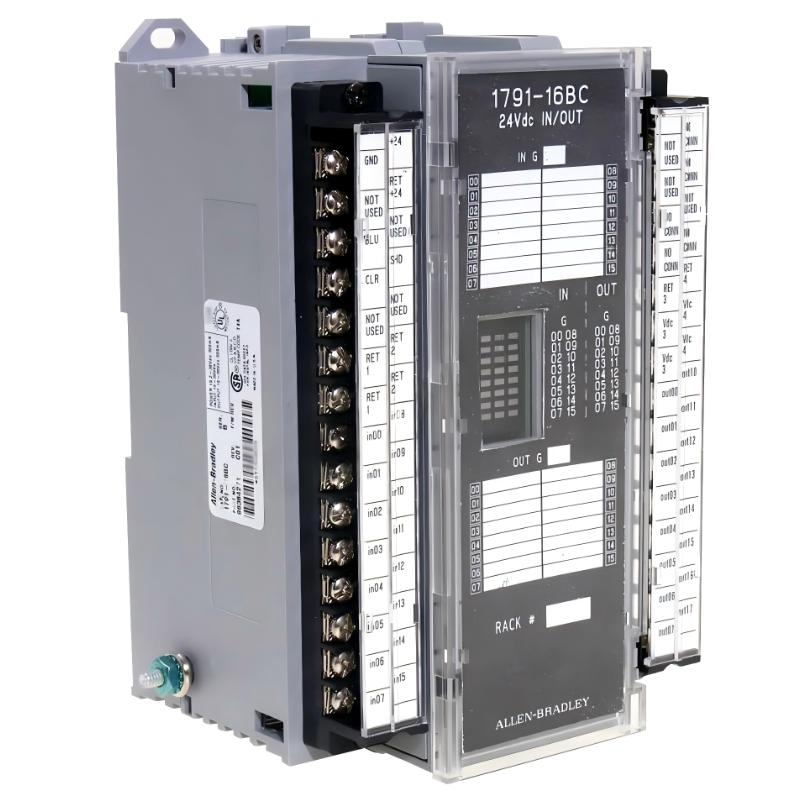

Allen Bradley 1791-16BC Block I/O Module

Applications

The Allen Bradley 1791-16BC Block I/O Module is designed for high-performance input/output management in industrial automation systems. Typical applications include:

• Controlling actuators, solenoids, and indicator devices in process control systems
• Integrating with Block I/O and CompactBlock systems for scalable industrial automation
• Capturing and transmitting field signals for monitoring and control
• Supporting distributed control systems in manufacturing plants and critical infrastructure
• Industrial environments requiring precise, reliable, and durable I/O performance

This module ensures dependable performance for both input and output operations, enabling efficient industrial automation.

Advantages

• Dual Functionality: Handles both input and output channels for versatile applications.
• Industrial Reliability: 176.5 × 98 × 110.5 mm and 1.02 kg (2.25 lb), designed for harsh industrial environments.
• High-Speed Operation: Provides fast signal response for real-time control systems.
• Modular Integration: Compatible with existing Block I/O and CompactBlock racks.
• Durable Construction: Resistant to vibration, temperature extremes, and electrical interference.
• Plug-and-Play Installation: Simplifies system expansion with minimal downtime.

Technical FAQs

1. Q: What is the primary function of the 1791-16BC?
   A: Provides combined input and output functionality for industrial automation systems.
2. Q: How many I/O channels does it support?
   A: Supports 16 channels, configurable for digital input and output.
3. Q: Is it compatible with other Block I/O modules?
   A: Yes, designed for seamless integration with Block I/O and CompactBlock systems.
4. Q: Can it operate in harsh industrial conditions?
   A: Yes, engineered to resist vibration, electrical noise, and temperature extremes.
5. Q: What is the operating voltage range?
   A: Typically operates at 24 VDC for digital I/O signals.
6. Q: How is it mounted?
   A: Installs in Block I/O racks or compatible mounting frames.
7. Q: Can it handle high-speed I/O signals?
   A: Yes, designed for fast response to digital input/output operations.
8. Q: Are configuration tools required?
   A: Yes, setup and channel configuration are done through standard Block I/O programming software.
9. Q: What is the operating temperature range?
   A: 0°C to 60°C, suitable for typical industrial environments.
10. Q: What maintenance is required?
    A: Minimal; periodic inspection ensures proper connections and signal integrity.
