Brand:GE Fanuc PLC Item No.:IS200EGPAG1B Product Origin:USA Product Dimensions:267 × 216 × 28 mm Product Weight:0.862 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

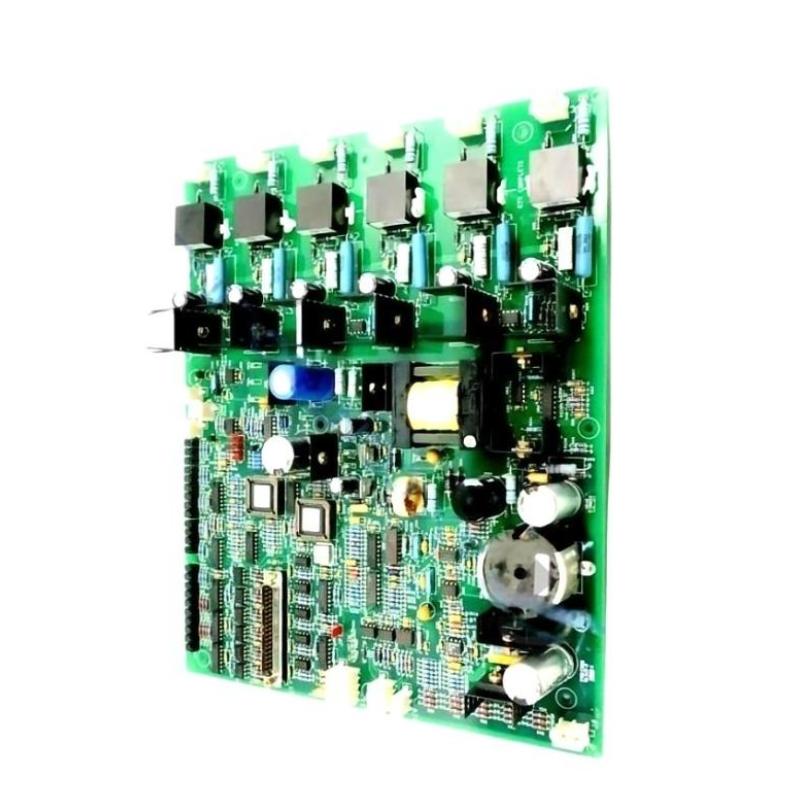

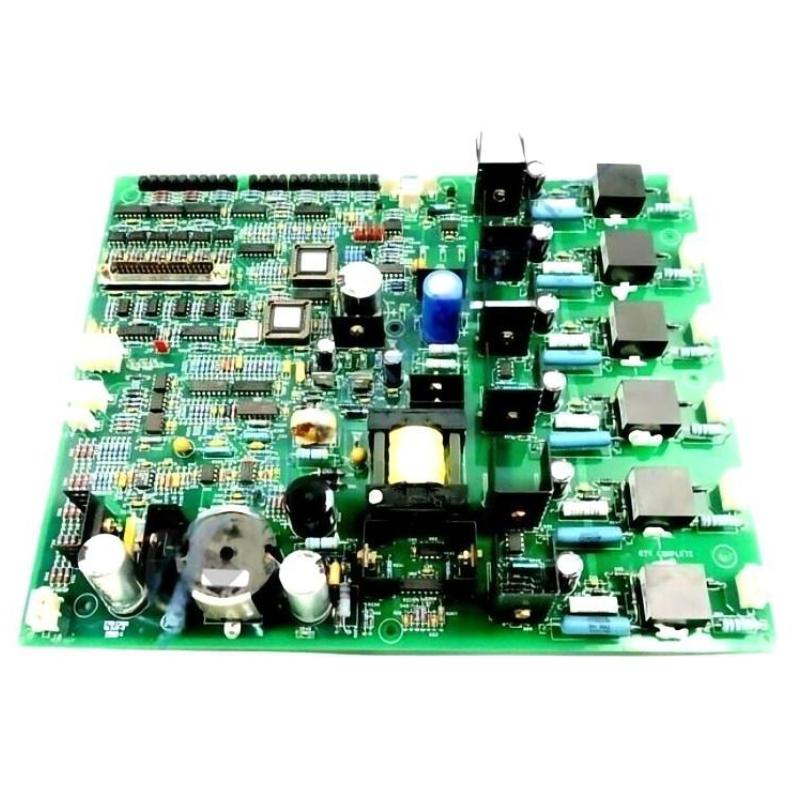

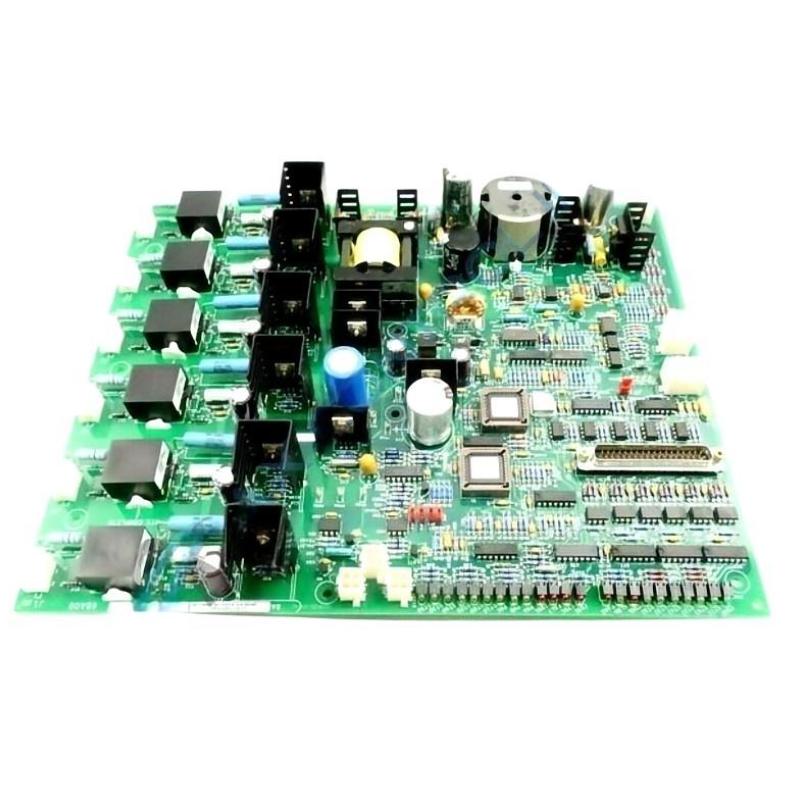

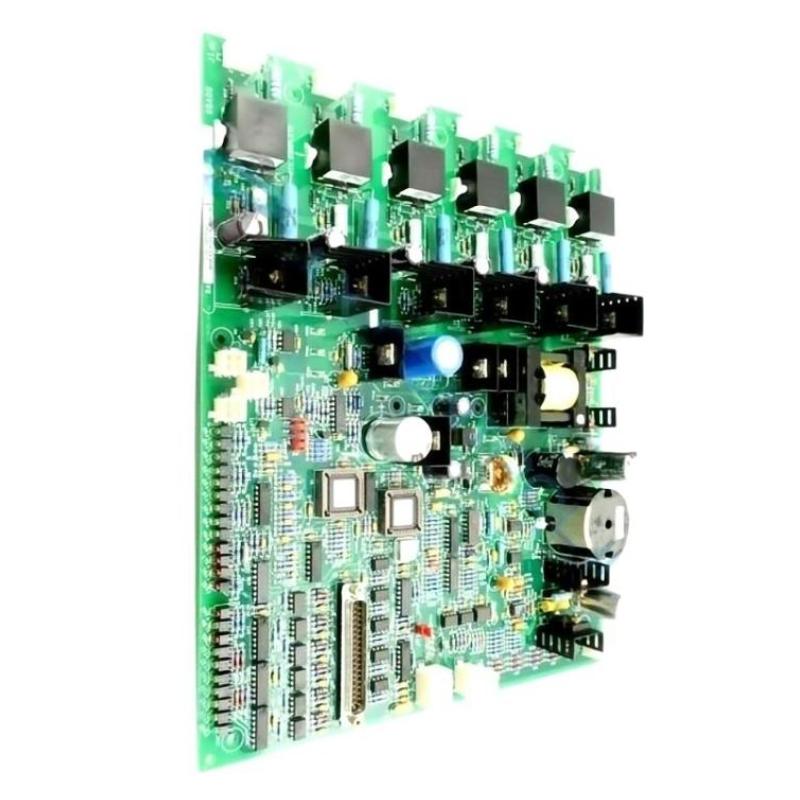

The GE IS200EGPAG1B Gate Pulse Amplifier Board is a high-performance solution for industrial power systems that demand precise gate signal amplification. Its robust design, fast response, and reliable operation make it an essential component for engineers managing high-speed switching devices and power conversion equipment. Compact and durable, this board ensures dependable performance under demanding industrial conditions.
Technical Specifications
Feature
Specification
Model Number
IS200EGPAG1B
Interface Type
Gate Pulse Amplifier
Dimensions (L x W x H)
267 × 216 × 28 mm
Weight
0.862 kg (1.90 lb)
Operating Temperature
0°C to 60°C
Signal Type
Gate pulses for semiconductor devices
Mounting
Standard panel or modular assembly
Protection Features
Overvoltage, short-circuit, and noise filtering
Applications
The GE IS200EGPAG1B Gate Pulse Amplifier Board is engineered to deliver high-speed, precise gate pulse amplification for power control applications. Key applications include:
Controlling and amplifying gate signals in power semiconductor systems
Industrial power conversion equipment and inverters
High-precision motor control and generator systems
Integration with GE excitation and firing systems for reliable performance
This board is ideal for engineers and technicians requiring fast, stable pulse amplification in critical power and automation systems.
Advantages
High-Fidelity Gate Pulse Amplification: Ensures accurate signal transmission to power devices.
Robust Industrial Construction: Designed for harsh environments with protection against electrical noise and temperature fluctuations.
Compact Form Factor: Ideal for control panels where space is limited.
Plug-and-Play Integration: Quick installation reduces system downtime.
Optimized for GE Systems: Ensures seamless communication with complementary GE boards and modules.
Technical FAQs
Which systems are compatible with this gate pulse amplifier?
It is compatible with GE excitation, firing, and power control systems requiring amplified gate signals.
Can this board handle high-speed switching operations?
Yes, it is specifically designed to amplify gate pulses for high-speed semiconductor switching.
Does the board offer protection against voltage spikes?
Yes, built-in protection safeguards both the board and connected devices.
Is firmware installation required?
No firmware or software is needed; the board operates directly with existing control systems.
Can it be used in parallel with multiple boards?
Yes, multiple IS200EGPAG1B boards can be used in tandem for complex applications.
What is the operating temperature range?
The board operates reliably between 0°C and 60°C (32°F to 140°F).
Does it provide diagnostic feedback?
Yes, it signals operational status to the connected control system for monitoring purposes.
Is it compatible with legacy GE gate pulse systems?
Yes, it is designed to interface with both current and older GE systems.
What mounting options are available?
It supports standard panel mounting or integration into modular control assemblies.
Can it be used in redundant setups?
Yes, it can be deployed in redundant configurations to increase system reliability.
