Introduction

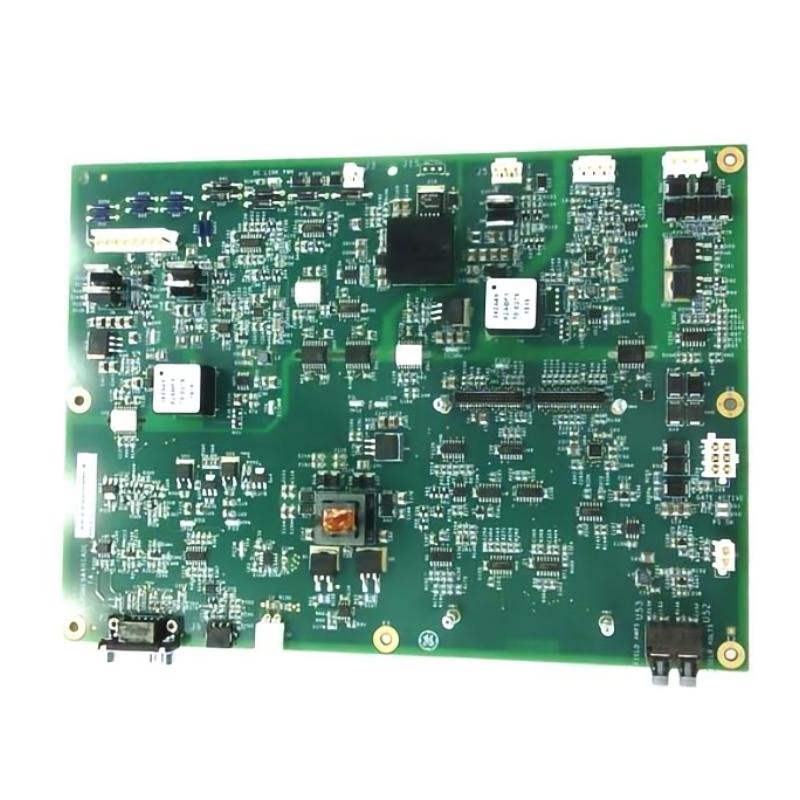

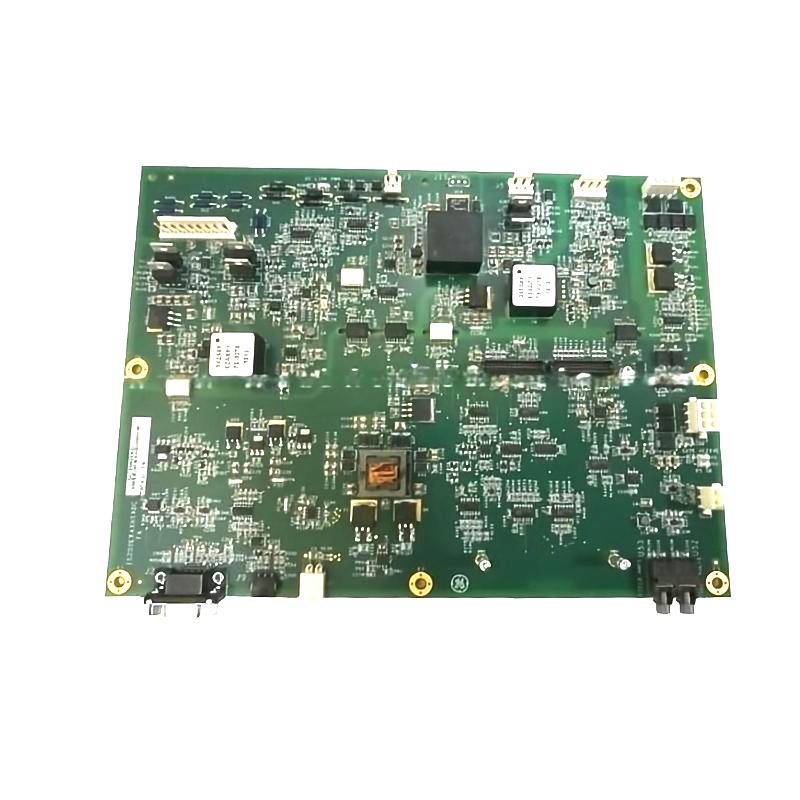

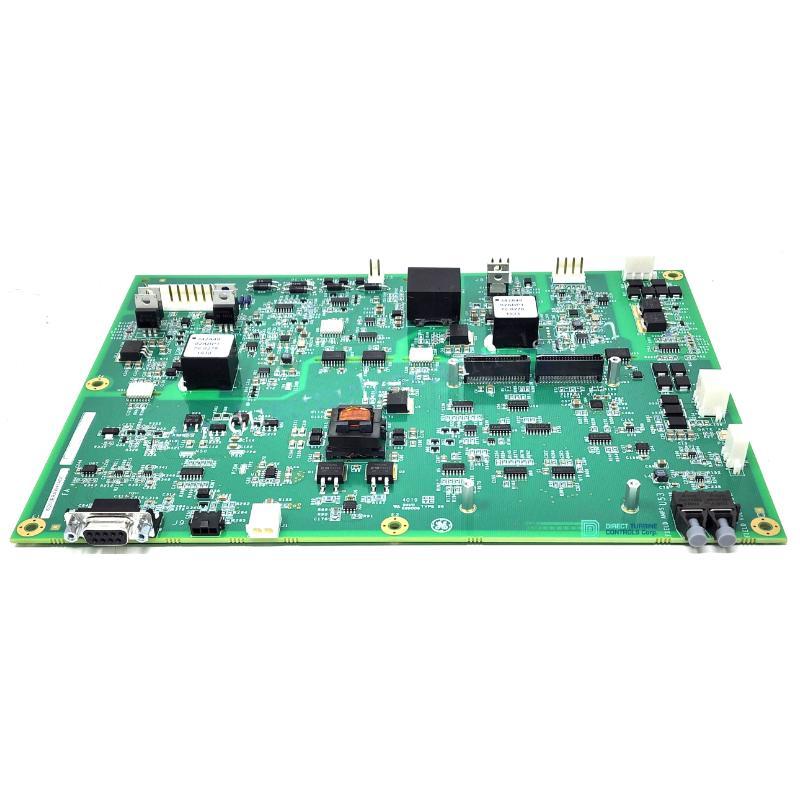

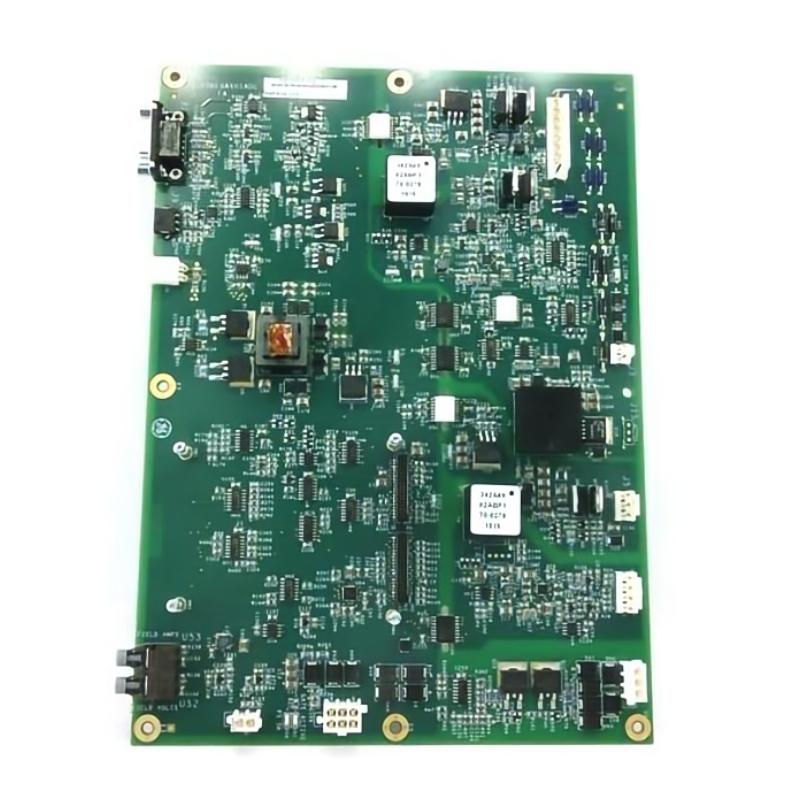

The GE IS200ERAXH1A Exciter Auxiliary I/O Interface Board provides a reliable solution for extending auxiliary input and output functionality in exciter systems. Its compact, rugged design ensures consistent signal integrity and seamless integration with GE exciter modules. Ideal for engineers seeking enhanced monitoring, control, and system flexibility, this board supports efficient operation in demanding industrial environments.

Technical Specifications

Feature	Specification
Model Number	IS200ERAXH1A
Module Type	Exciter Auxiliary I/O Interface Board
Dimensions (L x W x H)	150 × 100 × 50 mm
Weight	0.5 kg (1.10 lb)
Operating Temperature	0°C to 60°C
I/O Type	Discrete and analog auxiliary channels
Mounting	Standard panel mounting
Protection Features	Short-circuit, overvoltage, and electrical noise protection

Applications

The GE IS200ERAXH1A Exciter Auxiliary I/O Interface Board is designed to provide flexible input/output functionality for exciter and generator systems. Typical applications include:

Expanding auxiliary I/O capabilities in GE exciter systems
Integration with industrial control and monitoring systems
Supporting alarms, indicators, and auxiliary devices in power plants
Enhancing operational monitoring of generators and turbines

This board ensures reliable interfacing and signal management for auxiliary system components, making it essential for comprehensive exciter system control.

Advantages

Expanded I/O Flexibility: Adds multiple auxiliary input/output channels to GE exciter systems.
Robust Industrial Design: Resistant to vibration, electrical noise, and temperature variations.
Compact and Efficient: Ideal for panel integration with limited space.
Quick Installation: Reduces system downtime with easy plug-and-play setup.
Reliable Signal Integrity: Maintains consistent communication between auxiliary devices and the main exciter system.

Technical FAQs

Which exciter systems are compatible with this board?
It is designed for GE exciter systems requiring auxiliary I/O expansion.
How many input/output channels are available?
The exact number depends on system configuration, typically supporting multiple discrete and analog channels.
Is this board suitable for high-noise environments?
Yes, it includes filtering and protective circuitry to ensure signal reliability.
Does it require additional software or firmware?
No additional firmware is required; it integrates directly with the existing exciter control system.
Can multiple boards be used in one system?
Yes, multiple boards can be deployed to expand auxiliary I/O capacity as needed.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it provide status feedback to the main control system?
Yes, all I/O operations are reported to the connected control unit.
Is it compatible with legacy GE exciter systems?
Yes, it interfaces with both current and older exciter modules.
Does it offer protection against short circuits?
Yes, integrated protection prevents damage to both the board and connected devices.
Can it be used in redundant system setups?
Yes, multiple boards can support redundant auxiliary functions for enhanced reliability.
