Introduction

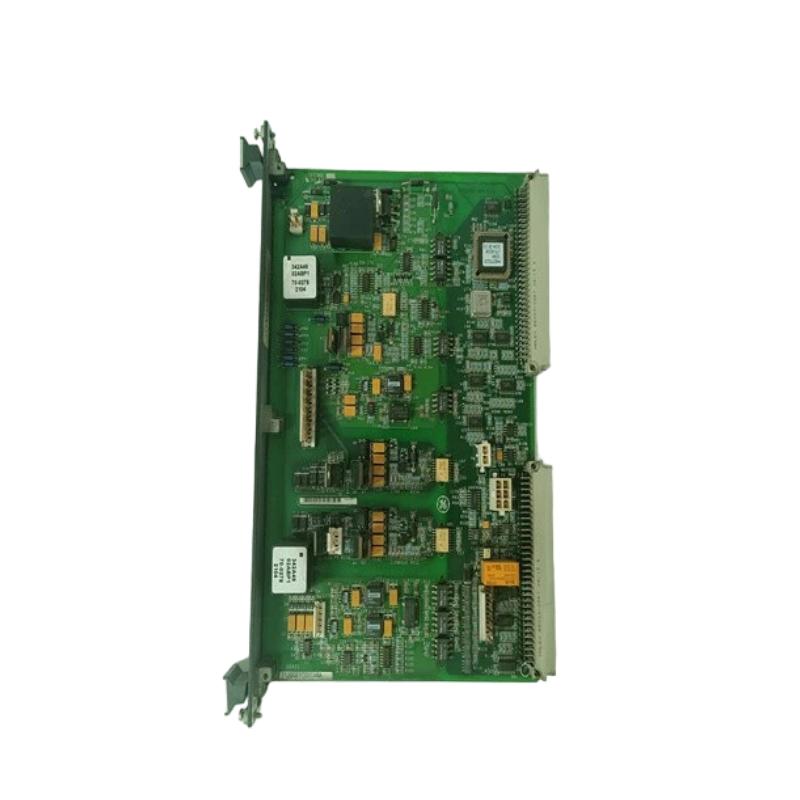

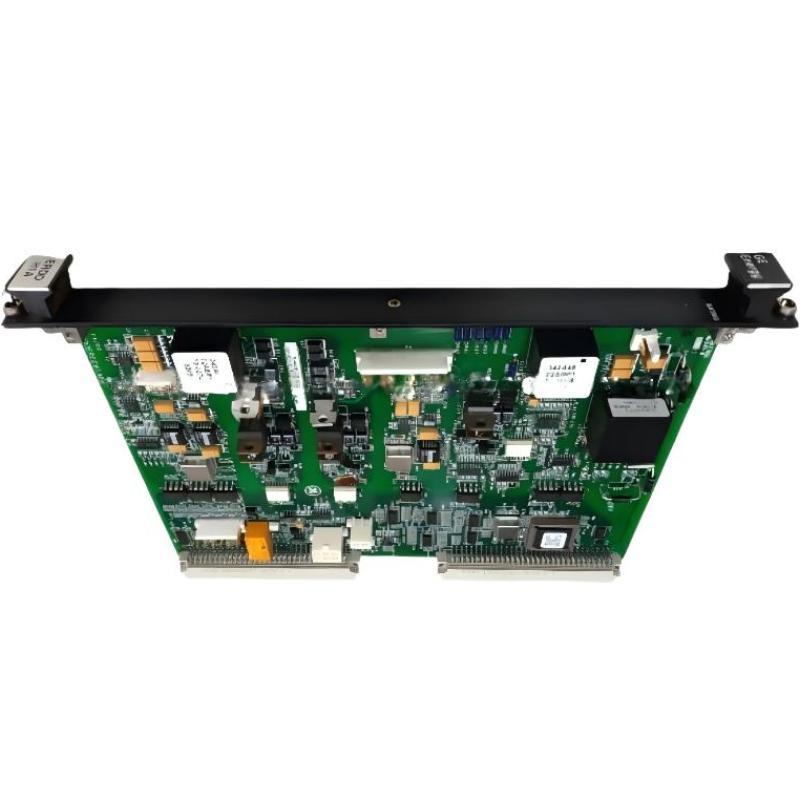

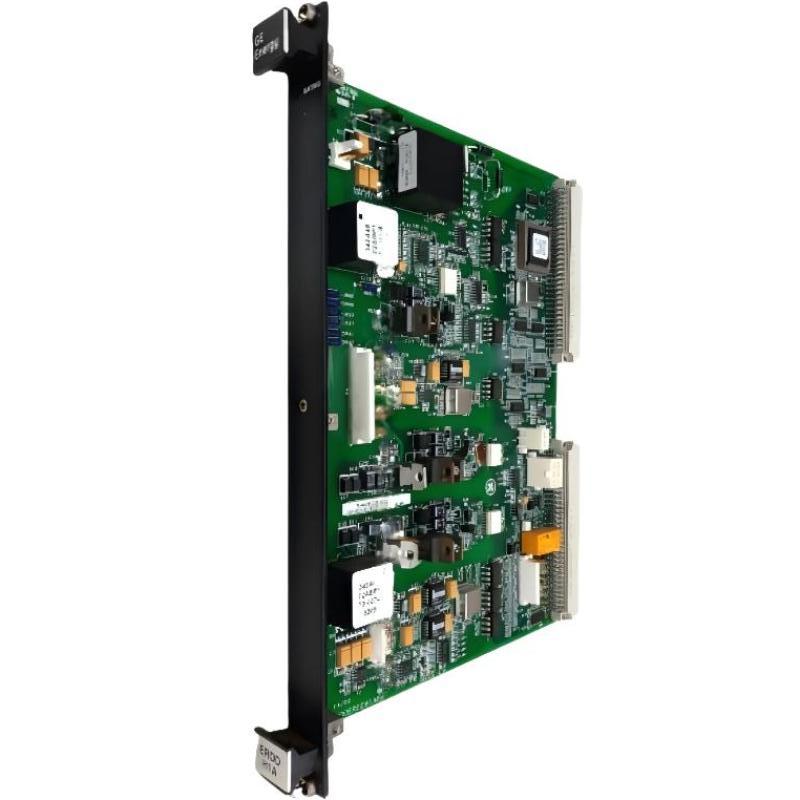

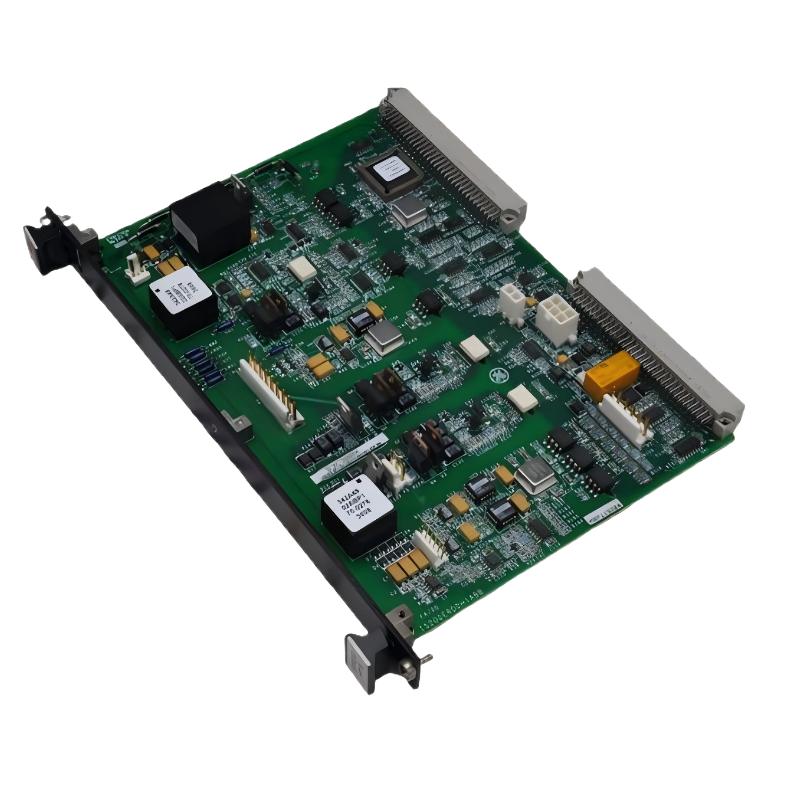

The GE IS200ERDDH1A Dynamic Discharge Plate is a compact, high-performance solution for managing transient energy in industrial exciter systems. By safely dissipating excess currents, it protects sensitive power components and ensures stable operation of generators and turbines. Durable, lightweight, and easy to integrate, this component is essential for maintaining safe and reliable exciter system performance.

Technical Specifications

Feature	Specification
Model Number	IS200ERDDH1A
Module Type	Dynamic Discharge Plate
Dimensions (L x W x H)	231.7 × 63.5 × 50.8 mm
Weight	0.36 kg (0.79 lb)
Operating Temperature	0°C to 60°C
Function	Energy dissipation / transient current management
Mounting	Panel or module-based mounting
Protection Features	Transient current and surge protection

Applications

The GE IS200ERDDH1A Dynamic Discharge Plate is designed for precise energy dissipation and safe current management in industrial excitation systems. Typical applications include:

Dynamic discharge in GE exciter and generator systems
Protecting sensitive power components from transient currents
Power plant and industrial turbine systems requiring controlled energy release
Integration with exciter bridge and power distribution modules

This component ensures reliable discharge performance, safeguarding critical system components and improving operational stability.

Advantages

Efficient Energy Dissipation: Safely manages transient and excess currents in exciter systems.
Industrial-Grade Durability: Engineered to withstand electrical stress, vibration, and elevated temperatures.
Compact and Lightweight: Simplifies installation in space-limited panels.
Seamless Integration: Designed to work with GE excitation modules for consistent performance.
Enhanced Safety: Reduces the risk of component damage caused by sudden power surges.

Technical FAQs

What is the primary function of this discharge plate?
It safely dissipates excess or transient energy within exciter and generator systems.
Which systems is it compatible with?
Compatible with GE exciter systems and other industrial excitation modules.
Can it operate in high-current scenarios?
Yes, it is designed to safely handle the transient currents typically encountered in exciter systems.
Is additional cooling required?
No, the plate is designed to operate within standard industrial temperature ranges.
Does it require firmware or software?
No firmware or software is needed; it functions passively as a discharge component.
Can multiple discharge plates be installed in one system?
Yes, for larger or redundant configurations, multiple plates may be deployed.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it provide protection for connected modules?
Yes, it safeguards excitation and control modules against transient current damage.
Is installation straightforward?
Yes, its compact form factor and mounting options allow for quick integration.
Can it be used in redundant exciter systems?
Yes, it can be included in redundant setups for added safety and reliability.
