Introduction

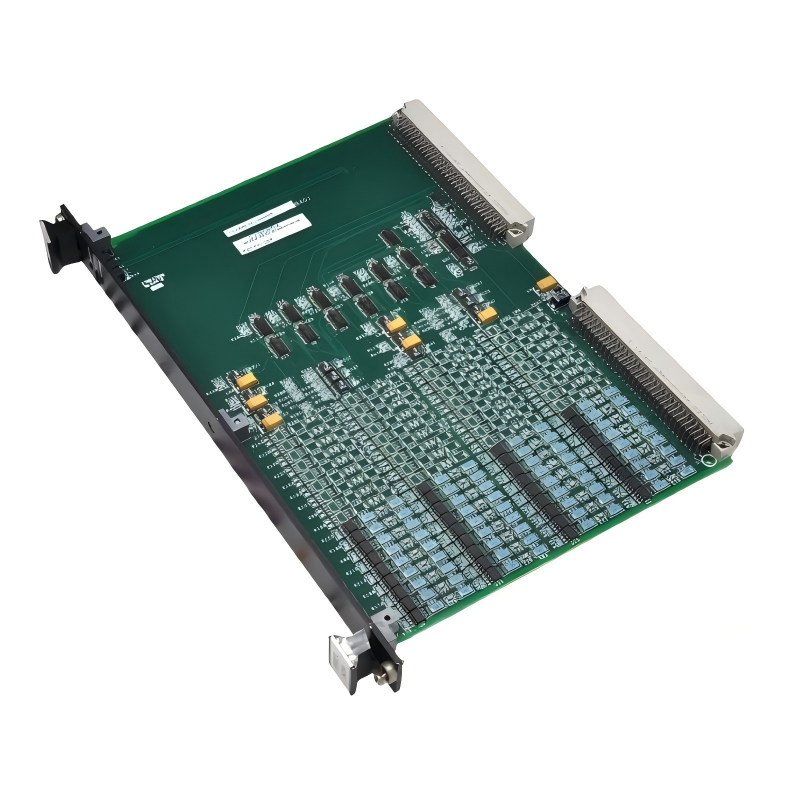

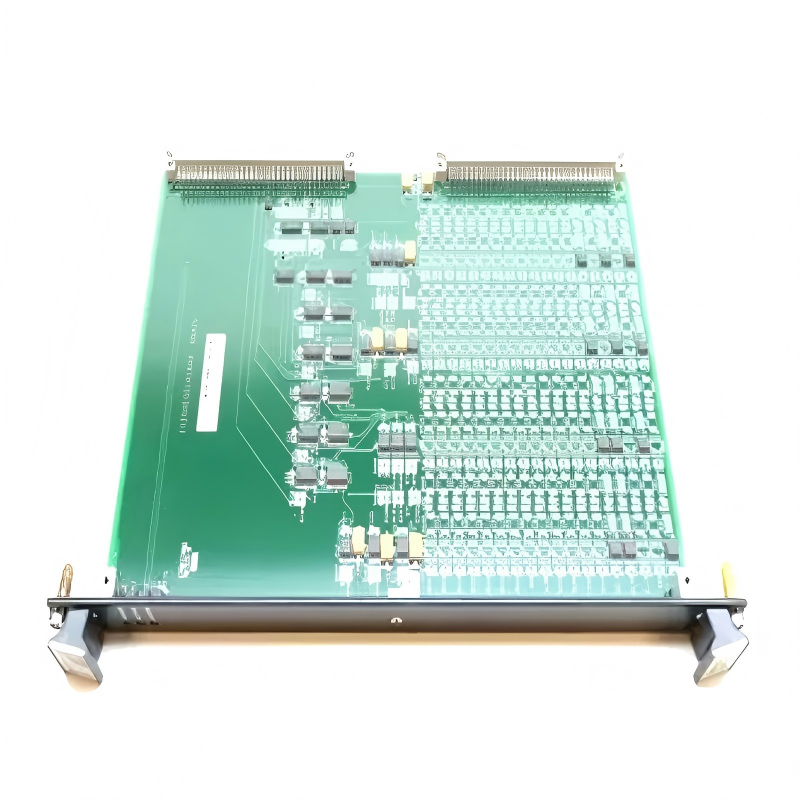

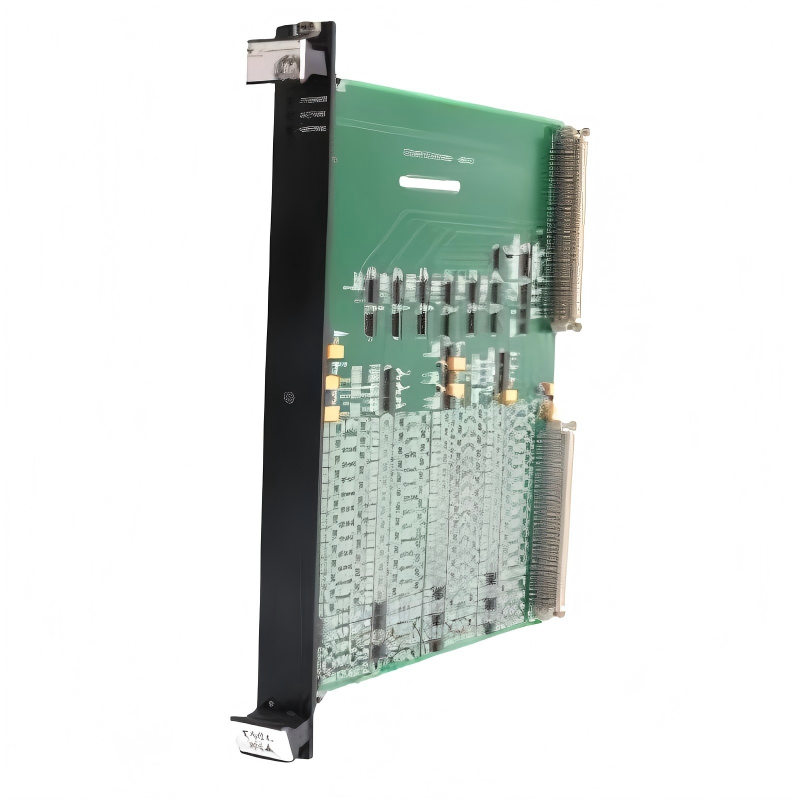

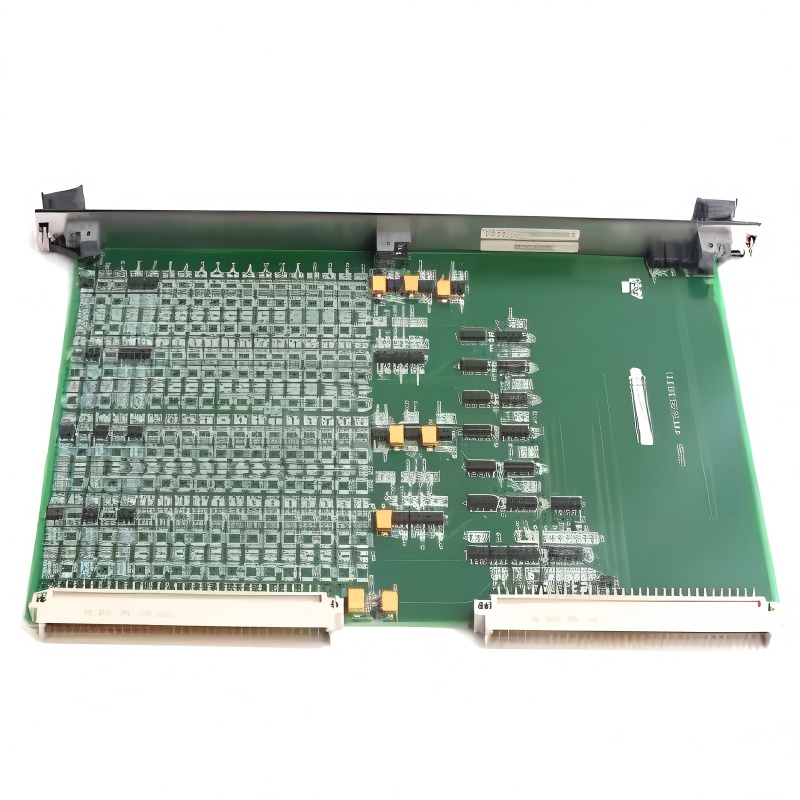

The GE IS200ESELH1A Exciter Selection Board provides precise and reliable routing of excitation signals to multiple exciter modules. Its industrial-grade construction ensures durable performance under demanding conditions, while the compact design facilitates easy integration. Ideal for power plants and industrial generator systems, this board enhances operational flexibility, stability, and control.

Technical Specifications

Feature	Specification
Model Number	IS200ESELH1A
Module Type	Exciter Selection Board
Dimensions (L x W x H)	165 × 139 × 50 mm
Weight	1.5 kg (3.31 lb)
Operating Temperature	0°C to 60°C
Function	Excitation signal routing and selection
Mounting	Panel or modular assembly
Protection Features	Short-circuit and electrical noise protection

Applications

The GE IS200ESELH1A Exciter Selection Board is designed to provide precise selection and routing of excitation signals in industrial generator systems. Its key applications include:

Routing excitation signals to appropriate exciter modules
Supporting generator and turbine excitation selection in power plants
Integration with GE exciter control systems for optimized performance
Enhancing operational reliability through accurate signal distribution

This board ensures flexible control and efficient operation of multiple excitation modules in industrial environments.

Advantages

Precise Signal Routing: Accurately directs excitation signals to the required modules.
High Reliability: Industrial-grade design tolerates vibration, electrical noise, and thermal stress.
Compact Design: Fits easily in panel-mounted or modular systems.
Quick Installation: Reduces downtime with plug-and-play compatibility.
Enhanced System Flexibility: Supports multiple exciter modules and configurations for dynamic operation.

Technical FAQs

Which systems is this board compatible with?
It is designed for GE exciter systems requiring dynamic excitation signal selection.
Does it support multiple excitation modules?
Yes, it can route signals to multiple modules simultaneously.
Is external software required for operation?
No software is required; it integrates directly with exciter control modules.
Can it operate in high-noise environments?
Yes, it includes protections to maintain signal integrity under industrial conditions.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it provide feedback to the control system?
Yes, operational status is communicated to the connected regulator system.
Is it compatible with older GE exciter modules?
Yes, it interfaces with both current and legacy modules.
Does it have built-in protection features?
Yes, it includes short-circuit and electrical noise protection.
Is installation straightforward?
Yes, the compact design supports easy panel mounting.
Can it be used in redundant excitation configurations?
Yes, it supports redundant setups to enhance system reliability.
