Introduction

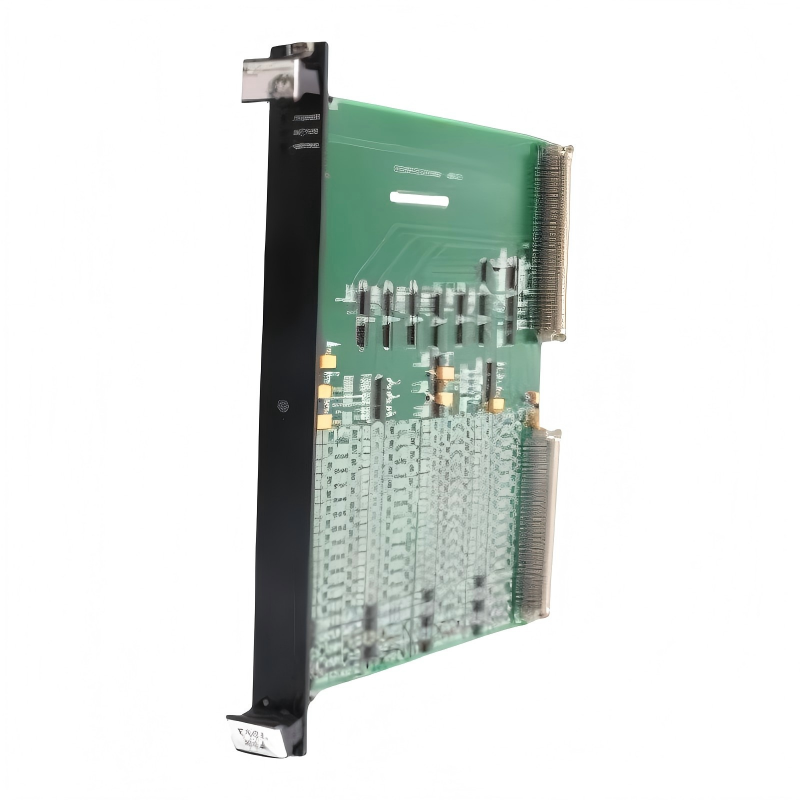

The GE IS200ESELH2RRR Exciter Selection Board provides reliable and precise routing of excitation signals for advanced, redundant exciter systems. Designed for industrial and power generation applications, this board enables flexible, high-availability operations while ensuring continuous, accurate excitation delivery. Its compact, robust design allows for easy installation and long-term performance in demanding environments.

Technical Specifications

Feature	Specification
Model Number	IS200ESELH2RRR
Module Type	Exciter Selection Board
Dimensions (L x W x H)	100 × 150 × 200 mm
Weight	1.2 kg (2.65 lb)
Operating Temperature	0°C to 60°C
Function	Redundant excitation signal routing and selection
Mounting	Panel or modular assembly
Protection Features	Short-circuit, overcurrent, and electrical noise protection

Applications

The GE IS200ESELH2RRR Exciter Selection Board is designed for advanced excitation management in industrial generator systems. Typical applications include:

Selecting and routing excitation signals to multiple exciter modules
Supporting redundant and fail-safe excitation configurations in power plants
Enhancing reliability and performance in automated generator control systems
Integration with GE exciter controllers for dynamic and high-precision operations

This board ensures precise signal management, enabling operators to maintain optimal generator performance even in complex, redundant setups.

Advantages

Advanced Signal Routing: Provides precise selection and distribution of excitation signals.
Redundant System Support: Optimized for high-availability excitation configurations.
Robust and Compact Design: Withstands vibration, electrical noise, and thermal stress while conserving panel space.
Easy Installation: Plug-and-play design minimizes downtime during upgrades or maintenance.
Operational Reliability: Ensures continuous and accurate excitation to connected modules.

Technical FAQs

Which systems is this board compatible with?
It is compatible with GE exciter systems requiring redundant or advanced signal selection.
Can it support multiple redundant modules?
Yes, it is designed for redundant configurations to ensure uninterrupted excitation.
Is additional software or firmware required?
No, it integrates directly with exciter control modules without additional firmware.
Does it maintain signal integrity in noisy environments?
Yes, it features protections against electrical interference and signal degradation.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it provide status feedback?
Yes, operational signals are communicated to the connected control system.
Is it compatible with older GE exciter modules?
Yes, it can interface with both current and legacy modules.
Does it have built-in protection features?
Yes, the board includes overcurrent, short-circuit, and electrical noise protection.
Is installation straightforward?
Yes, its compact form factor supports standard panel or modular mounting.
Can it be used in fully redundant excitation systems?
Yes, it is optimized for high-availability redundant configurations.
