Introduction

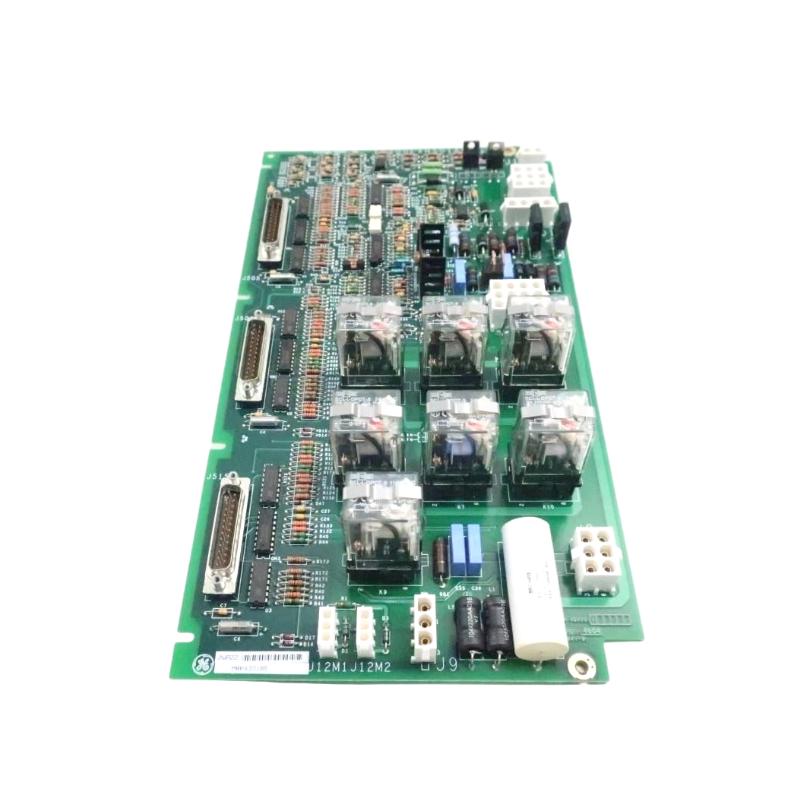

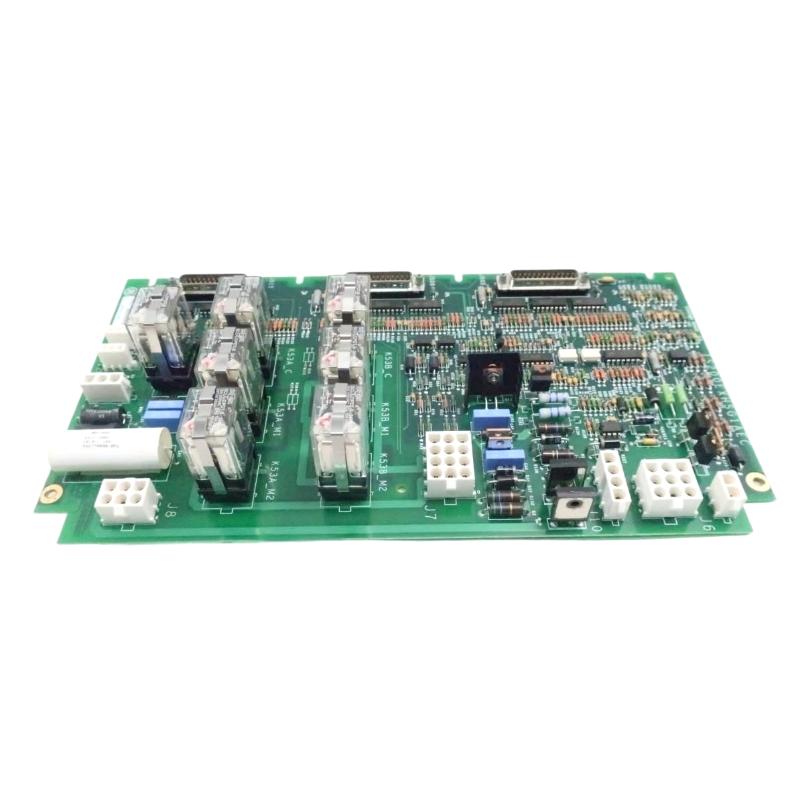

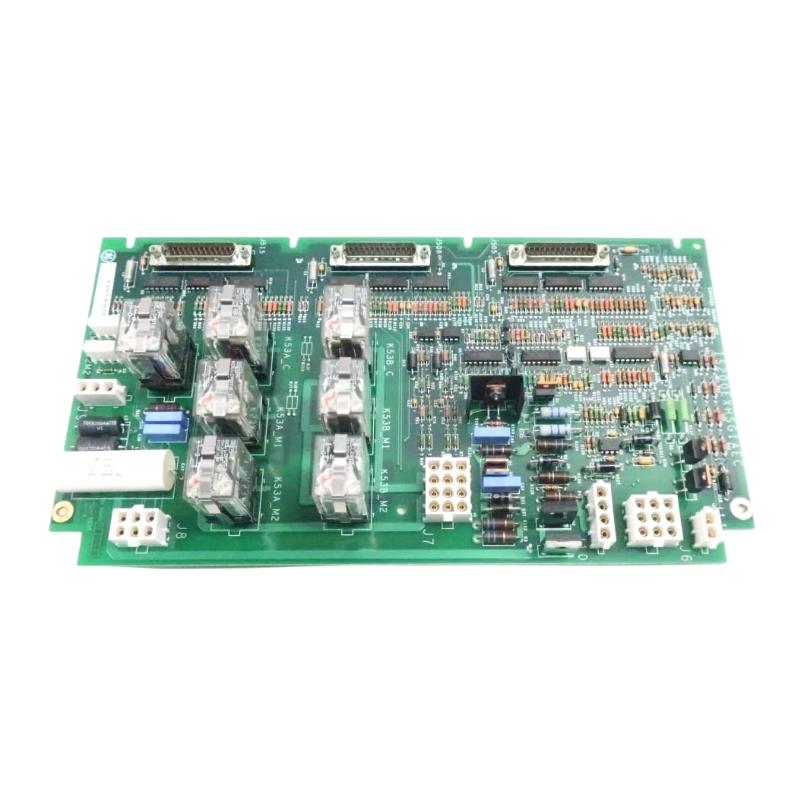

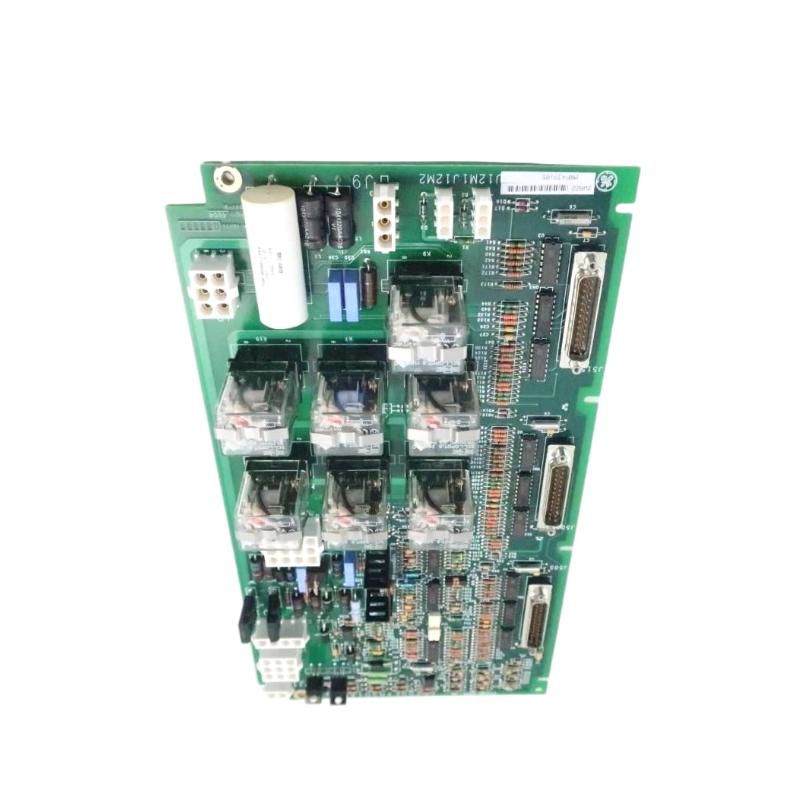

The GE IS200EXHSG4A Exciter High-Speed Relay Driver Board provides precise, rapid control of relays in industrial exciter systems. Compact, robust, and easy to install, it ensures reliable operation, rapid response times, and enhanced safety for generator and turbine applications. This module is essential for engineers seeking high-performance excitation control with minimal latency.

Technical Specifications

Feature	Specification
Model Number	IS200EXHSG4A
Module Type	Exciter High-Speed Relay Driver Board
Dimensions (L x W x H)	230 × 191 × 30 mm
Weight	0.4 kg (0.88 lb)
Operating Temperature	0°C to 60°C
Function	Drives high-speed relays for excitation circuits
Mounting	Panel or modular assembly
Protection Features	Short-circuit and overvoltage protection

Applications

The GE IS200EXHSG4A Exciter High-Speed Relay Driver Board is engineered to provide rapid and reliable control of relays in industrial excitation systems. Its key applications include:

Driving high-speed relays for generator excitation control
Integration into GE exciter systems for power plants and industrial turbines
Enhancing response time for excitation protection and regulation
Supporting automated control for high-performance generator operations

This board ensures precise and rapid relay actuation, critical for maintaining generator stability and operational efficiency.

Advantages

High-Speed Relay Control: Delivers fast, reliable switching to manage excitation circuits effectively.
Industrial-Grade Durability: Resistant to vibration, electrical noise, and temperature fluctuations.
Compact and Lightweight: Fits easily in panel-mounted or modular systems.
Plug-and-Play Installation: Simplifies integration and reduces system downtime.
Enhanced Operational Safety: Protects generator and exciter systems through precise relay control.

Technical FAQs

Which systems is this board compatible with?
It is compatible with GE exciter systems requiring high-speed relay actuation.
Does it support multiple relay types?
Yes, it is designed to drive standard industrial relays in excitation systems.
Is additional software required for operation?
No, the board integrates directly with exciter control modules.
Can multiple boards be deployed in parallel?
Yes, for systems requiring multiple high-speed relay operations.
What is the operating temperature range?
0°C to 60°C (32°F to 140°F).
Does it provide status feedback?
Yes, it communicates relay operational status to the connected control system.
Is it compatible with legacy GE exciter modules?
Yes, it can interface with both current and older exciter modules.
Does it include electrical protection?
Yes, short-circuit and overvoltage protection are built into the board.
Is installation straightforward?
Yes, the compact design allows for easy panel or modular mounting.
Can it be used in redundant or high-availability setups?
Yes, multiple boards can be deployed for redundant high-speed relay operations.
