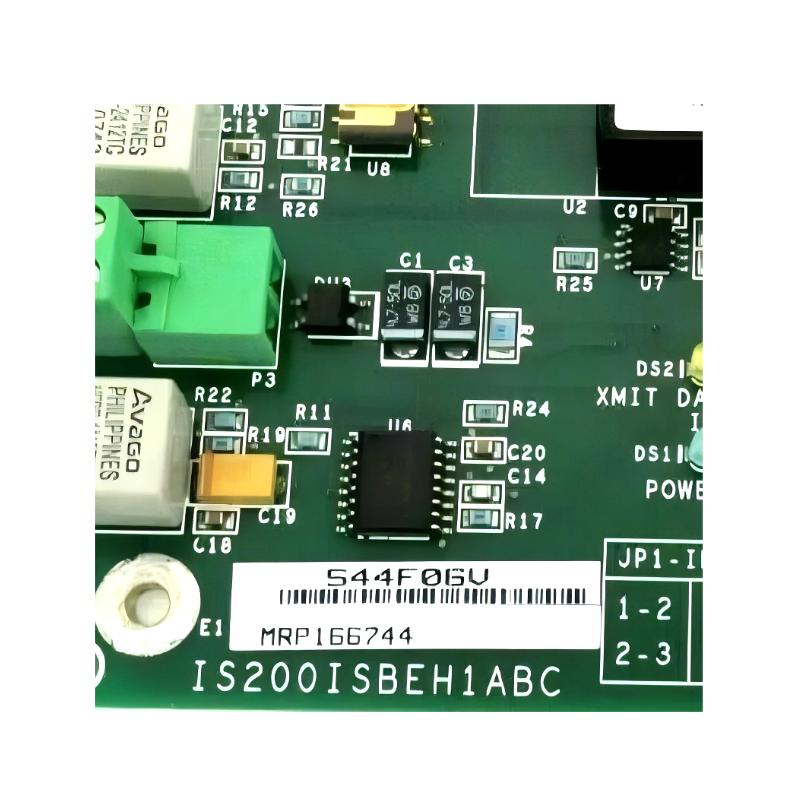

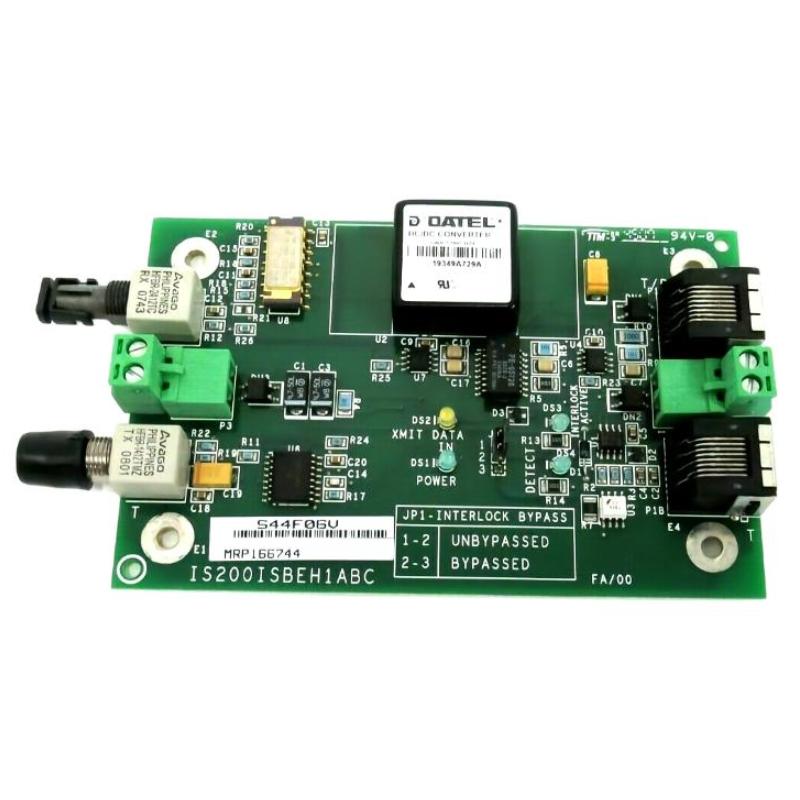

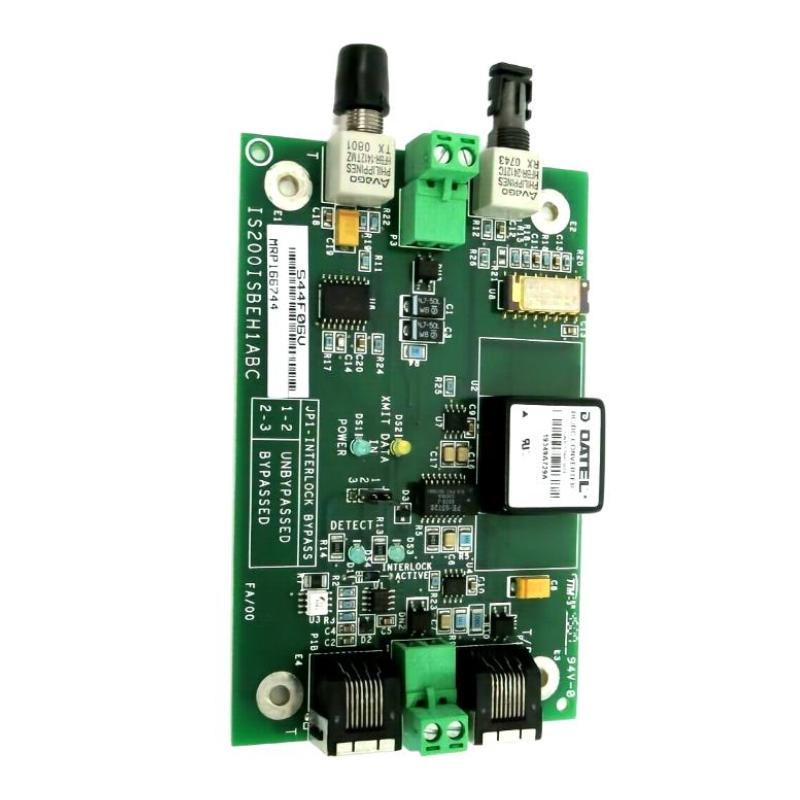

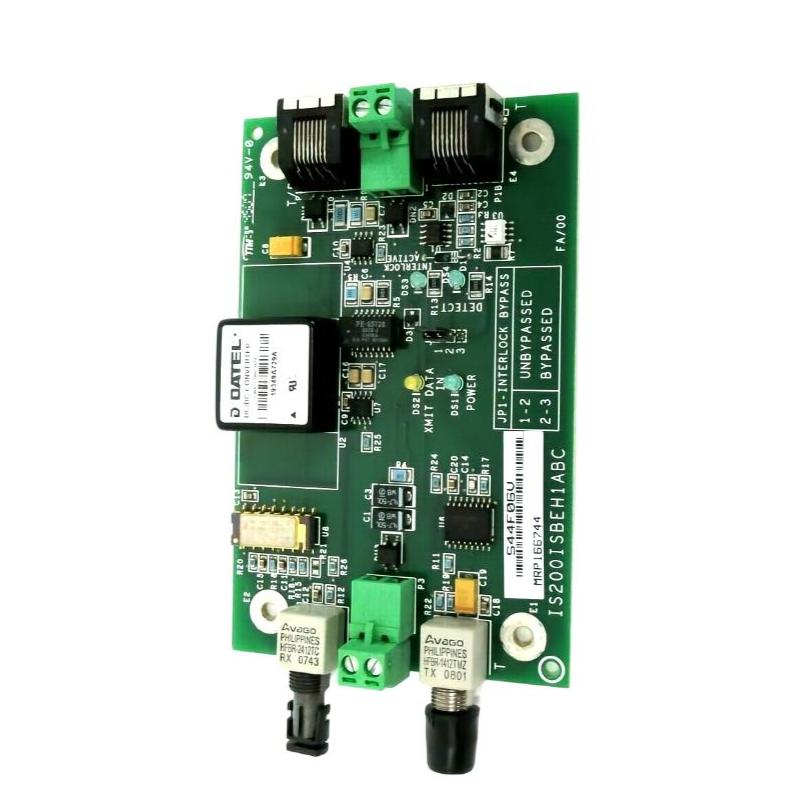

GE IS200ISBEH1A Synchronous Bus Expansion Board

Applications

The GE IS200ISBEH1A Synchronous Bus Expansion Board is designed to extend high-speed communication and synchronization capabilities in turbine and generator control systems. Typical applications include:

• Synchronous data communication between GE Mark VI and related control modules
• Expansion of bus connections in distributed industrial control systems
• Integration in industrial turbine control panels for improved communication bandwidth
• Environments requiring reliable, low-latency signal transfer across modules

This board enhances the flexibility and scalability of turbine control systems by enabling synchronized module communication.

Advantages

• Enhanced Communication: Supports high-speed synchronous bus connections between modules
• Industrial Reliability: Robust construction ensures performance under vibration and standard operating conditions
• Compact Design: 200 × 120 × 35 mm profile allows efficient installation in control panels
• Seamless Integration: Fully compatible with GE Mark VI and related industrial control systems
• Continuous Operation: Engineered for 24/7 industrial use without performance loss

Technical FAQs

1. What is the main function of this board?
   It expands and manages synchronous bus connections for high-speed module communication.
2. Which systems is it compatible with?
   GE Mark VI and other compatible turbine control modules requiring bus expansion.
3. Can it operate in harsh industrial environments?
   Yes, designed to withstand typical industrial conditions including vibration and moderate temperature variations.
4. Does it include connectors?
   No, connectors are installed as part of the control system or panel.
5. How is it mounted?
   Directly installed into compatible control panels using standard fixtures.
6. Is it suitable for continuous operation?
   Yes, built for reliable 24/7 operation in industrial environments.
7. Does it require software or firmware updates?
   No, it operates seamlessly with existing Mark VI system firmware.
8. Can it be used in retrofit installations?
   Yes, compatible with both retrofit and new turbine control panel installations.
9. What maintenance is needed?
   Minimal; visual inspections and cleaning are recommended periodically.
10. Does it support multiple synchronous channels?
    Yes, it manages standard synchronous bus channels to ensure precise communication.
