Introduction

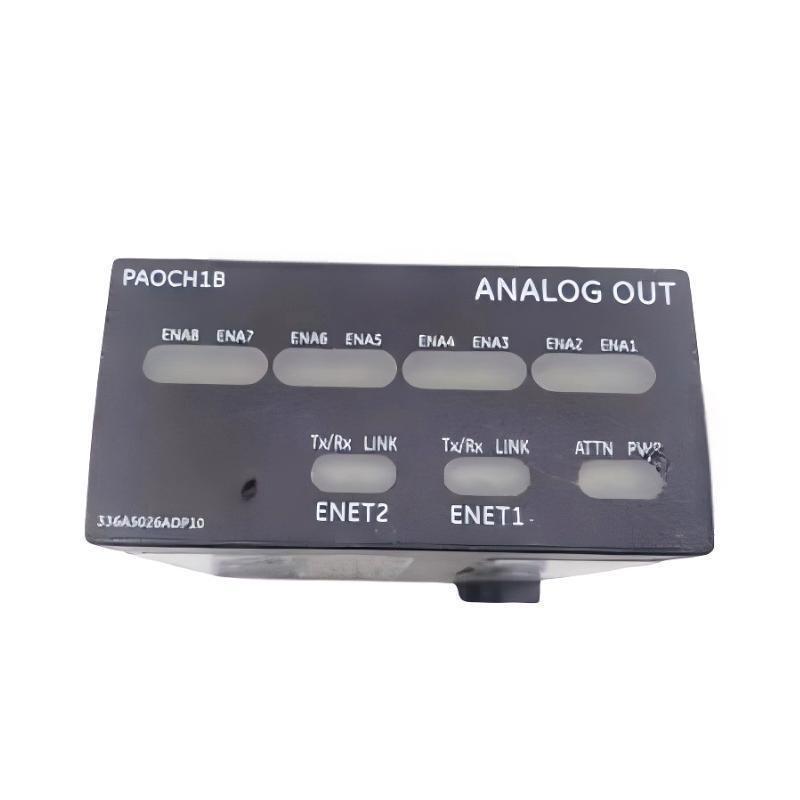

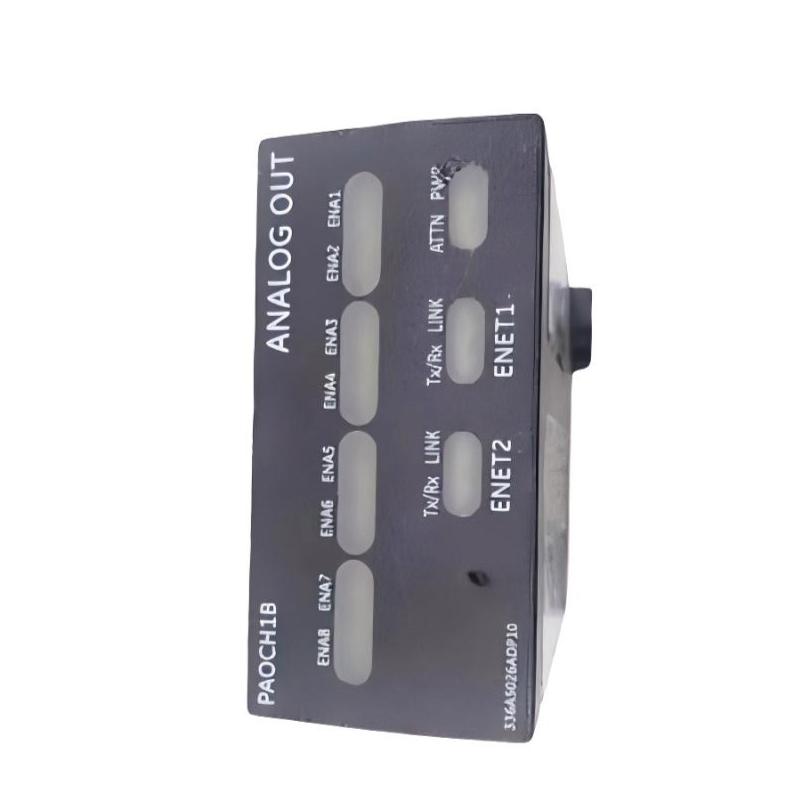

The GE IS200PAOCH1B Turbine Protection Board delivers cutting-edge protection for industrial turbines, combining rapid response, high reliability, and effortless integration. Its compact footprint and durable construction make it an ideal solution for plants seeking dependable turbine safety and operational efficiency. This board is designed to protect your turbine assets while minimizing downtime and maintenance requirements.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	150 x 50 x 100 mm
Weight	0.4 kg (0.88 lb)
Power Supply	24V DC ±10%
Input Channels	8 digital / 4 analog
Output Channels	4 relay / 2 analog
Operating Temperature	-20°C to 70°C
Humidity	5% – 95% non-condensing
Response Time	< 10 ms
Mounting	DIN rail or panel mount
Compliance	IEC 61508, ISO 9001

Applications

The GE IS200PAOCH1B Turbine Protection Board is designed to safeguard turbines with precision and reliability in demanding industrial environments. Its typical applications include:

Steam, gas, and combined-cycle turbine systems
Industrial generators and turbine-driven compressors
Integration into plant automation and real-time monitoring systems
Emergency shutdown and fault isolation mechanisms
Critical environments where uptime and operational safety are essential

Its compact 150 x 50 x 100 mm design allows for straightforward installation in existing control panels without compromising performance.

Advantages

Fast Response Protection: Detects faults within milliseconds to prevent mechanical or electrical damage.
Durable and Reliable: Engineered for high vibration, temperature extremes, and harsh industrial conditions.
Compact Form Factor: Ideal for control cabinets with limited space.
Seamless System Integration: Compatible with GE and selected third-party turbine control systems.
Redundant Safeguards: Maintains protection continuity even if one channel fails.
Long Service Life: Low-maintenance design ensures years of dependable operation.

Technical FAQs

Q: Which turbine faults does this board detect?
A: Overspeed, overtemperature, vibration anomalies, electrical imbalances, and sensor malfunctions.
Q: Can the board operate in extreme industrial temperatures?
A: Yes, rated for -20°C to 70°C continuous operation.
Q: How does it interface with modern SCADA systems?
A: Provides both analog and digital outputs compatible with standard communication protocols.
Q: What is the typical fault detection response time?
A: Less than 10 milliseconds for rapid isolation and turbine protection.
Q: Is it compatible with older turbine models?
A: Yes, backward compatibility is maintained through standard I/O configurations.
Q: Does it include redundancy features?
A: Yes, dual-channel inputs for critical sensors ensure protection even if one channel fails.
Q: Are diagnostic features available?
A: Yes, onboard diagnostics allow for status monitoring, alarm reporting, and fault logging.
Q: Can it operate alongside other protective modules?
A: Yes, it integrates seamlessly into multi-layered turbine protection architectures.
Q: What kind of power supply does it require?
A: Standard 24V DC industrial power input with surge protection.
Q: How is firmware updated?
A: Secure, field-accessible programming ports allow controlled firmware updates.
