Introduction

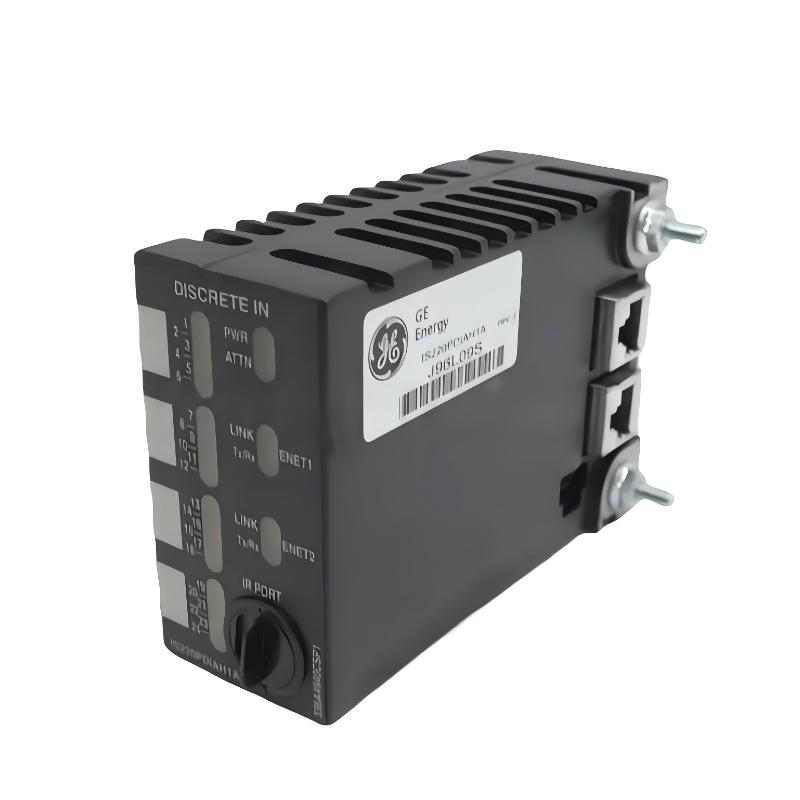

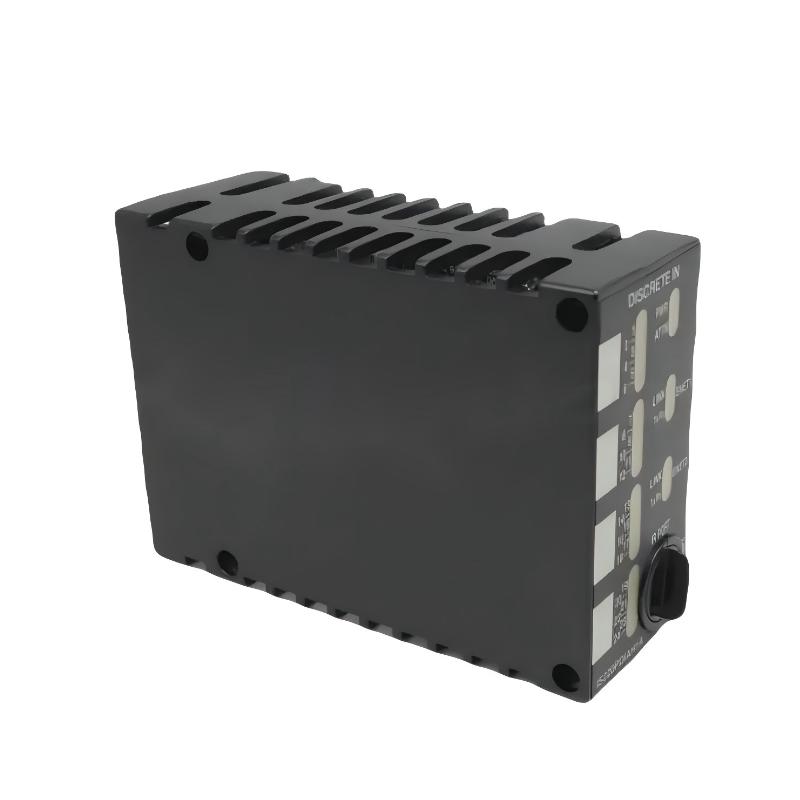

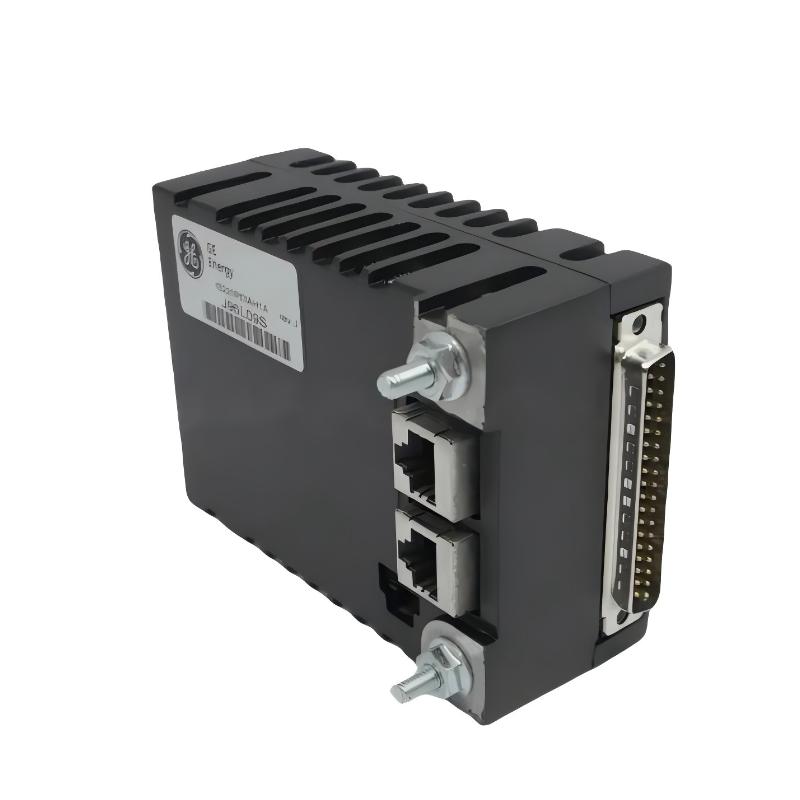

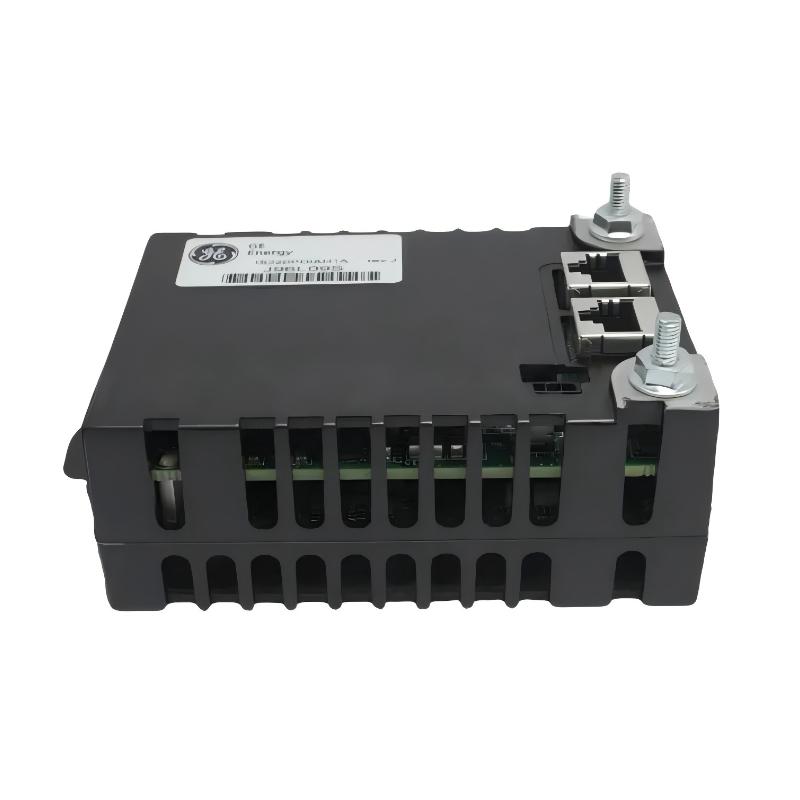

The GE IS200PDIOH1A Turbine Protection Board delivers state-of-the-art protection for turbines in industrial applications. Its rapid response, high durability, and seamless integration make it an ideal solution for operators seeking reliable performance and reduced operational risks. Compact and robust, this board is tailored for plants that demand precision and uninterrupted turbine protection.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	150 x 50 x 100 mm
Weight	0.4 kg (0.88 lb)
Power Supply	24V DC ±10%
Input Channels	8 digital / 4 analog
Output Channels	4 relay / 2 analog
Operating Temperature	-20°C to 70°C
Humidity	5% – 95% non-condensing
Response Time	< 10 ms
Mounting	DIN rail or panel mount
Compliance	IEC 61508, ISO 9001

Applications

The GE IS200PDIOH1A Turbine Protection Board is engineered for high-precision protection of industrial turbines, ensuring optimal performance and minimizing downtime. Its primary applications include:

Steam, gas, and combined-cycle turbines in power plants
Industrial generators and turbine-driven compressors
Integration with SCADA and real-time monitoring systems
Emergency shutdown and fault isolation applications
High-reliability environments requiring robust turbine protection

With a compact 150 x 50 x 100 mm footprint, it provides advanced protection without occupying excessive panel space.

Advantages

Millisecond-Level Response: Instantly detects faults and isolates critical systems.
Industrial-Grade Durability: Designed to withstand vibration, high temperatures, and humidity extremes.
Compact Installation: Space-saving design fits into standard control cabinets.
Full System Compatibility: Works seamlessly with GE and selected third-party turbine systems.
Redundant Safety Channels: Maintains protection even in case of single-point sensor failure.
Extended Operational Life: Reliable performance with minimal maintenance.

Technical FAQs

Q: What fault types does this board monitor?
A: Overspeed, overtemperature, vibration anomalies, electrical imbalances, and sensor failures.
Q: Can it operate in extreme industrial conditions?
A: Yes, rated for -20°C to 70°C and 5%–95% non-condensing humidity.
Q: How does it communicate with plant automation systems?
A: Provides both digital and analog outputs compatible with standard SCADA protocols.
Q: What is the typical response time for fault detection?
A: Less than 10 milliseconds for rapid turbine protection.
Q: Is it compatible with legacy turbines?
A: Yes, it supports standard I/O configurations to ensure backward compatibility.
Q: How is redundancy implemented?
A: Dual-channel inputs for critical sensors maintain protection if one channel fails.
Q: Does it support real-time diagnostics?
A: Yes, it logs faults, alarms, and operational status for predictive maintenance.
Q: Can multiple boards operate in parallel?
A: Absolutely, it integrates into multi-layered turbine protection architectures.
Q: What is the required power supply?
A: Standard 24V DC industrial power input with built-in surge protection.
Q: How is firmware updated?
A: Via secure field-accessible programming ports with version control and rollback options.
