Introduction

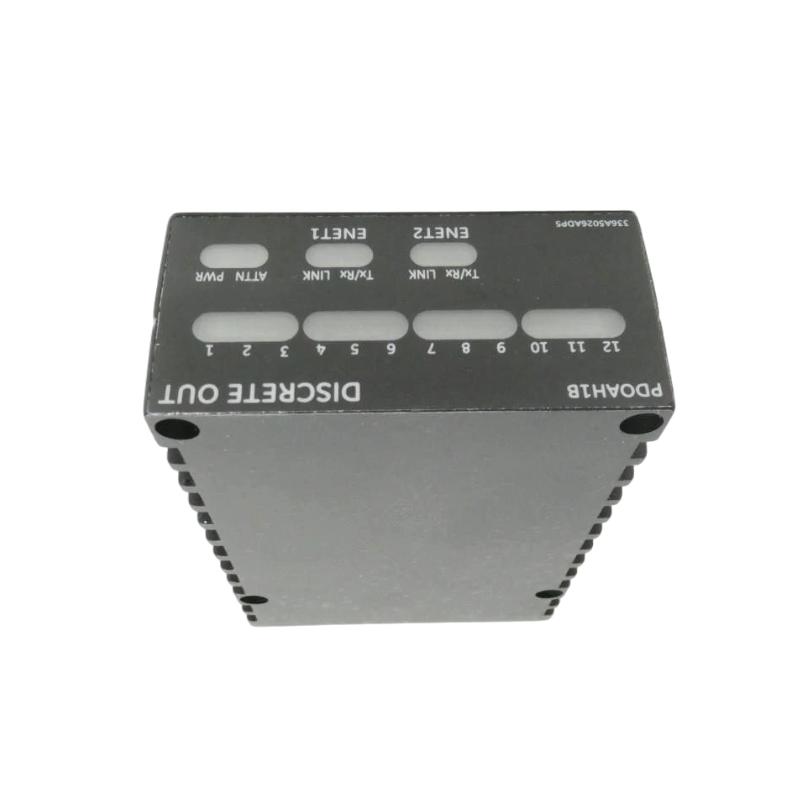

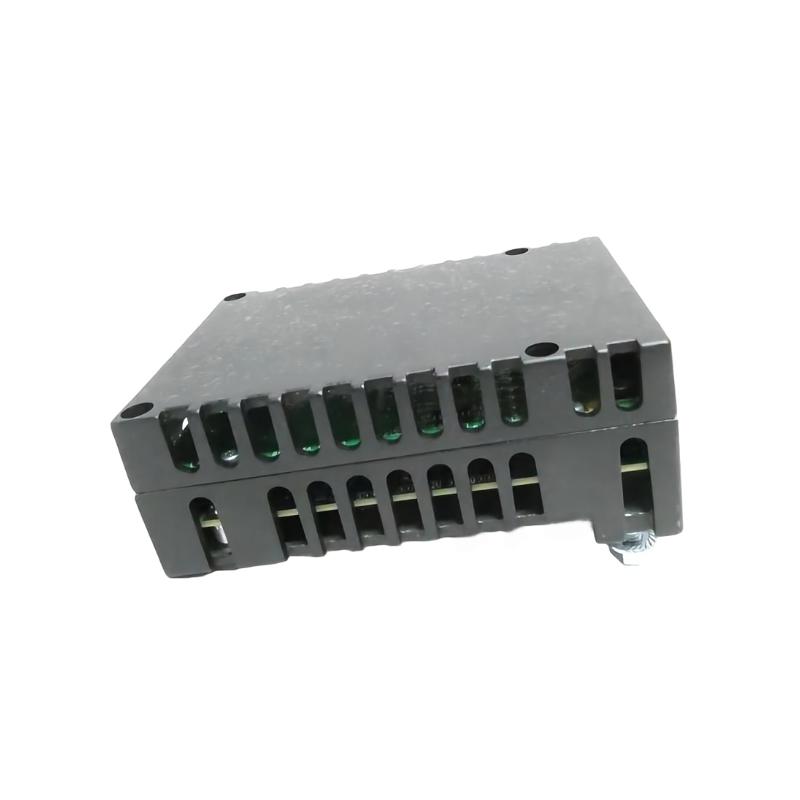

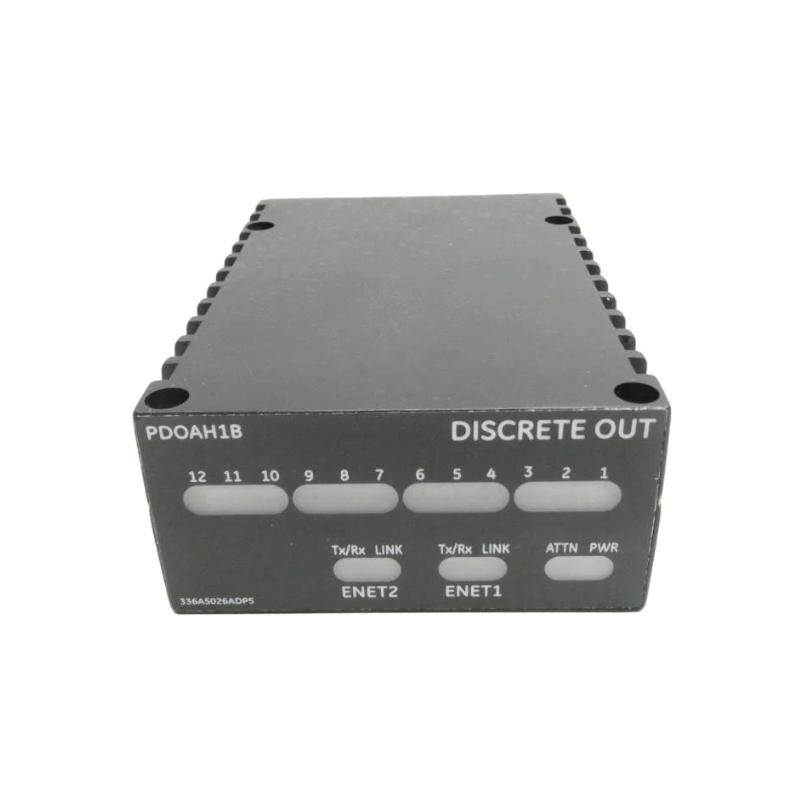

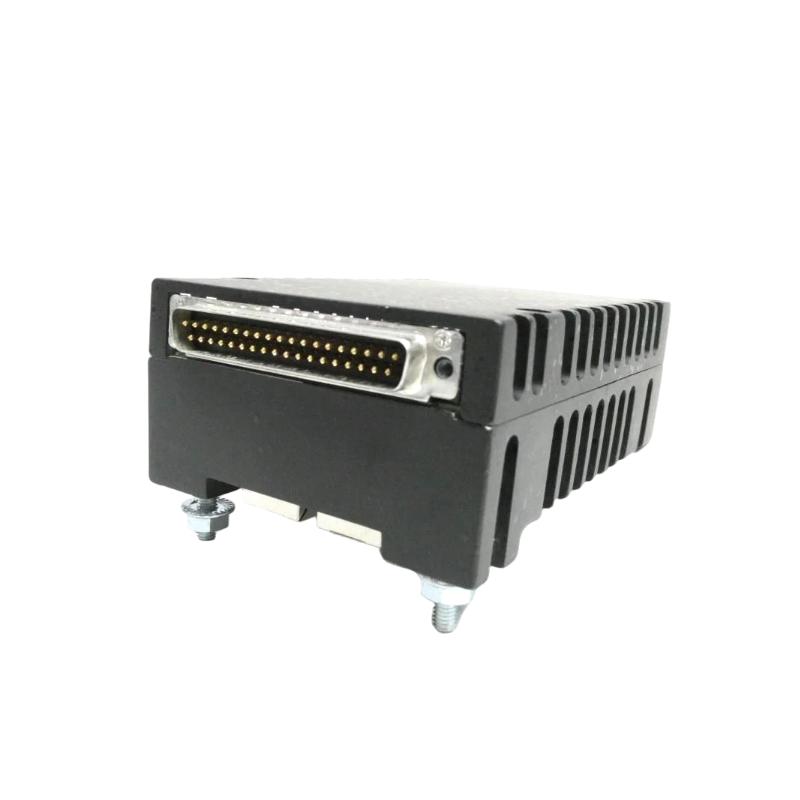

The GE IS200PDOAH1B Turbine Protection Board combines high-speed protection, reliability, and ease of integration to ensure your turbines operate safely and efficiently. Its compact design and robust construction make it a perfect solution for industrial operators looking to protect critical turbine assets while minimizing maintenance and downtime.

Technical Specifications

Parameter	Specification
Dimensions (L x W x H)	150 x 50 x 100 mm
Weight	0.4 kg (0.88 lb)
Power Supply	24V DC ±10%
Input Channels	8 digital / 4 analog
Output Channels	4 relay / 2 analog
Operating Temperature	-20°C to 70°C
Humidity	5% – 95% non-condensing
Response Time	< 10 ms
Mounting	DIN rail or panel mount
Compliance	IEC 61508, ISO 9001

Applications

The GE IS200PDOAH1B Turbine Protection Board is crafted to provide reliable, real-time protection for industrial turbines, ensuring operational safety and efficiency. Its applications include:

Steam, gas, and combined-cycle turbine systems
Industrial generators and turbine-driven compressors
Integration with SCADA and plant automation systems
Emergency shutdown and fault isolation mechanisms
High-reliability environments requiring robust turbine protection

Its compact 150 x 50 x 100 mm form factor allows seamless integration into existing control panels, maximizing space efficiency without sacrificing performance.

Advantages

Fast and Accurate Fault Detection: Protects turbines from overspeed, overtemperature, and electrical imbalances in milliseconds.
Compact and Space-Saving: Ideal for crowded control cabinets.
Industrial-Grade Reliability: Withstands high temperatures, vibration, and humidity.
Seamless System Compatibility: Integrates easily with GE and third-party turbine control solutions.
Redundant Protection Channels: Ensures continuous protection even during sensor failure.
Low Maintenance Design: Engineered for long service life and minimal downtime.

Technical FAQs

Q: What types of turbine faults are monitored?
A: Overspeed, overtemperature, vibration irregularities, electrical imbalances, and sensor faults.
Q: Is it compatible with older turbine models?
A: Yes, it supports standard I/O configurations for backward compatibility.
Q: Can it operate in harsh industrial environments?
A: Yes, designed for -20°C to 70°C and 5%–95% non-condensing humidity.
Q: What is the response time for fault detection?
A: Typically less than 10 milliseconds for rapid isolation.
Q: How does it integrate with SCADA systems?
A: Offers both digital and analog outputs compatible with standard communication protocols.
Q: Are diagnostic features included?
A: Yes, onboard diagnostics provide fault logging, alarm reporting, and operational monitoring.
Q: Does it support redundant channels?
A: Yes, dual-channel inputs maintain protection if one sensor input fails.
Q: Can multiple boards work together in a system?
A: Yes, it integrates into multi-layered turbine protection architectures.
Q: What power supply does it require?
A: Standard 24V DC industrial power input with surge protection.
Q: How is firmware updated?
A: Via secure field-accessible programming ports, with controlled version updates.
