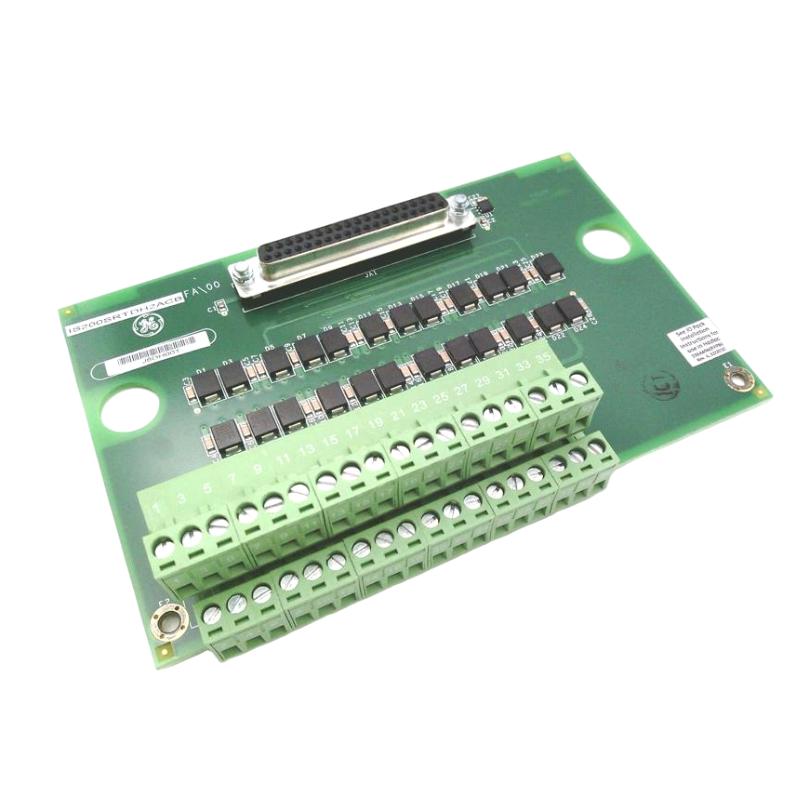

GE IS200SRTDH2A Compact RTD Terminal Block

Applications

The GE IS200SRTDH2A Compact RTD Terminal Block is engineered for precise temperature measurement and reliable sensor connectivity in industrial control systems. Its typical applications include:

• Turbine and generator temperature monitoring
• Compact industrial control panels requiring efficient RTD wiring
• Integration with SCADA, DCS, and turbine protection modules
• High-precision sensor networks for industrial automation
• Environments demanding reliable RTD connections under vibration and temperature stress

Its compact 220 × 130 × 35 mm form factor ensures efficient use of panel space without compromising accessibility.

Advantages

• High-Precision Signal Transmission: Maintains accurate temperature readings from RTD sensors.
• Compact and Space-Saving: Designed for panels with limited space while supporting multiple sensors.
• Durable Construction: Withstands industrial temperature ranges, vibration, and humidity.
• Seamless System Integration: Fully compatible with GE turbine protection and control systems.
• Easy Maintenance: Clearly labeled terminals simplify wiring, troubleshooting, and replacement.
• Reliable Long-Term Performance: Minimal maintenance required with extended operational life.

Technical FAQs

1. Q: Which RTD types does this terminal block support?
   A: Supports 2-wire, 3-wire, and 4-wire RTD configurations.
2. Q: What wire gauge can be connected?
   A: Supports wires up to 2.5 mm² for secure and reliable connections.
3. Q: Can it operate under high vibration conditions?
   A: Yes, industrial-grade design ensures stable operation in vibration-prone environments.
4. Q: What is the operating temperature range?
   A: Continuous operation from -20°C to 70°C.
5. Q: Does it provide electrical isolation?
   A: Yes, each terminal is electrically isolated to prevent cross-talk and signal interference.
6. Q: Is it compatible with GE turbine protection modules?
   A: Yes, designed for seamless integration with GE IS200 series modules.
7. Q: Can multiple blocks be connected in series?
   A: Yes, modular design allows linking to expand sensor capacity.
8. Q: Does it support diagnostic verification?
   A: Yes, it allows RTD signal checks during maintenance or system diagnostics.
9. Q: How is it mounted?
   A: Supports panel or DIN rail mounting for flexible installation.
10. Q: Is replacement straightforward?
    A: Yes, modular design allows quick removal and replacement without disrupting connected sensors.
