GE IS230SNTCH4A Simplex Thermocouple Input Assembly
GE IS230SNTCH4A Simplex Thermocouple Input Assembly
0.0
Points
Brand:GE Fanuc PLC Item No.:IS230SNTCH4A Product Origin:USA Product Dimensions:187 x 153 x 38 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

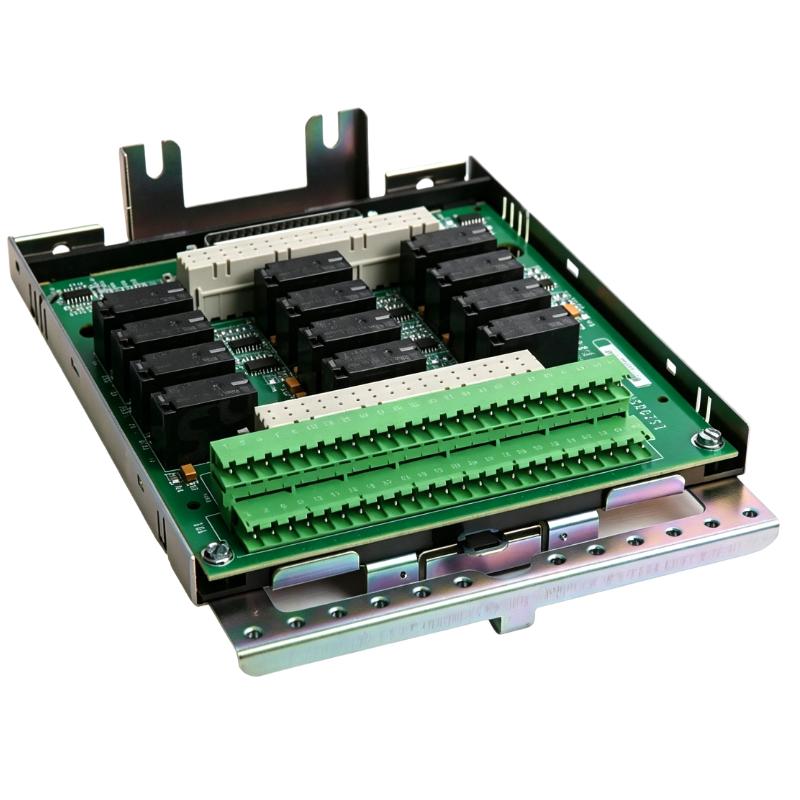

The GE IS230SNTCH4A Simplex Thermocouple Input Assembly is an industrial temperature acquisition module used within GE Mark VIe control systems. It is responsible for receiving thermocouple signals from field devices and supporting accurate temperature monitoring across turbine and process applications.
Technical Specifications
Parameter
Specification
Product Type
Simplex Thermocouple Input Assembly
Manufacturer
General Electric (GE)
Series
Mark VIe
Model
IS230SNTCH4A
Function
Thermocouple signal acquisition
Input Channels
Typically 12 channels
Supported Thermocouple Types
E, J, K, S, T (system dependent)
System Compatibility
GE Mark VI / Mark VIe
Installation
Control cabinet / rack-mounted system integration
Operating Temperature
-40°C to 70°C (typical industrial range)
Dimensions
187 × 153 × 38 mm
Weight
0.4 kg
Recommended Related Models
Model
Product Name
IS200STTCH2ABA
GE Simplex Thermocouple Terminal Board
IS220PTCCH2BB
GE Mark VIe Thermocouple Input Pack
IS220PAICH1A
GE Analog Input Module
IS200TBAIH1C
GE Turbine Control Input Board
Popular Related Models
Model
Product Name
IS220PPRFH1B
GE Power Supply Module
IS200EGDMG1A
GE Excitation Control Module
IS210DTAIH1A
GE Analog Input Terminal Board
IS200TRLYH1B
GE Relay Output Module
Applications
• Temperature acquisition for GE Mark VIe turbine control systems
• Multi-channel thermocouple signal collection in power generation plants
• Gas and steam turbine exhaust and bearing temperature monitoring
• Industrial process temperature measurement in high-reliability control cabinets
• OEM turbine package integration for engine and energy systems
• Redundant or simplex I/O architecture support in GE Mark VIe platforms
Advantages
• High-precision thermocouple signal acquisition with stable industrial-grade performance
• Designed for harsh turbine environments with strong resistance to electrical noise
• Seamless integration with Mark VIe control architecture for fast deployment
• Supports multiple thermocouple types for flexible temperature monitoring configurations
• Modular design improves maintenance efficiency and reduces downtime during replacement
• Reliable long-life operation in continuous-duty industrial power applications
Technical FAQs
Q1: What is the main function of the IS230SNTCH4A?
It is used to collect and condition thermocouple temperature signals for GE Mark VIe control systems.
Q2: How many thermocouple inputs does it support?
It is typically associated with 12-channel thermocouple input configurations.
Q3: What system is it designed for?
It is designed for GE Mark VI and Mark VIe turbine control platforms.
Q4: Does it perform signal conversion?
Yes, it works with the system I/O pack to convert analog thermocouple signals into digital data.
Q5: What types of thermocouples are supported?
Common support includes E, J, K, S, T, and other industrial thermocouple types depending on configuration.
Q6: Is it suitable for harsh environments?
Yes, it is engineered for high-temperature, high-vibration turbine environments.
Q7: Is this module redundant or simplex?
It is a simplex thermocouple input assembly used in non-redundant configurations.
Q8: Does it require configuration software?
Configuration is handled through the Mark VIe system controller, not directly on the module.
Q9: Can it be used outside turbine systems?
It is primarily designed for turbine and GE industrial control applications, not general-purpose PLC use.
Q10: What ensures its measurement accuracy?
Accuracy is achieved through system-level signal conditioning and cold junction compensation within the Mark VIe architecture.
