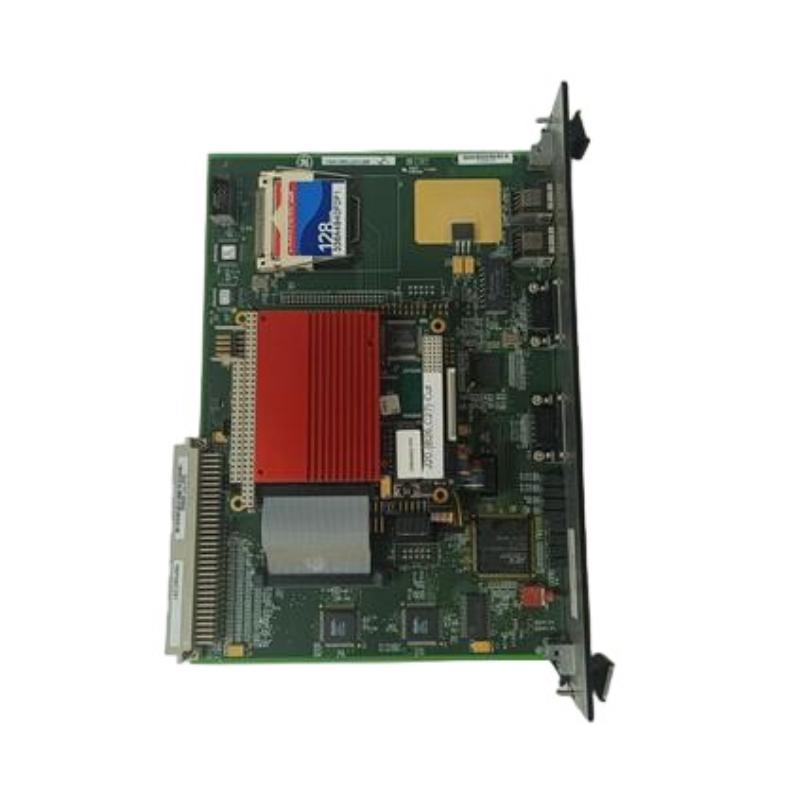

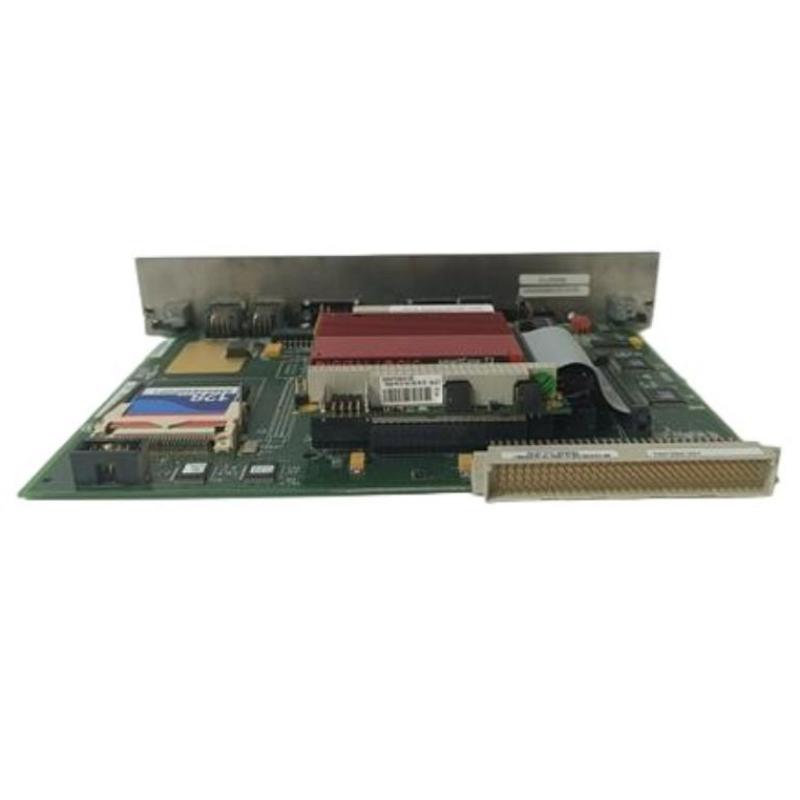

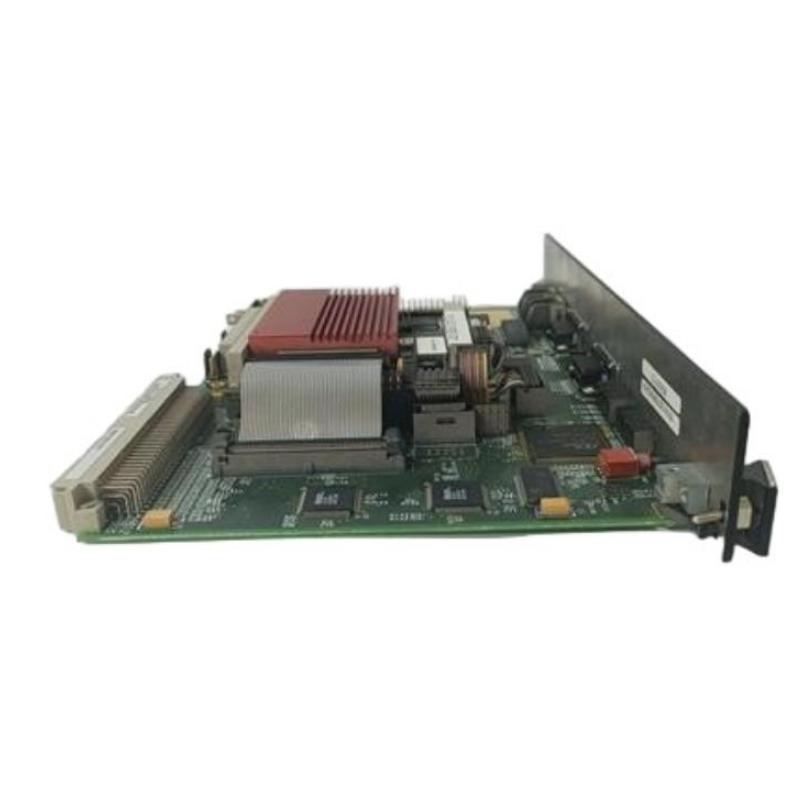

The GE IS215AEPAH1C is an AEPA (Enhanced Protection Architecture) Analog Input Module used in GE Mark VIe turbine control systems. It is designed to handle high-precision analog signal acquisition, conditioning, and protection-level data processing for critical turbine monitoring applications.
In modern power generation systems, this module plays a key role in ensuring that sensor data (such as temperature, pressure, vibration, and flow signals) is accurately captured and transmitted to the control system without distortion or signal loss.
Technical Specifications — Industrial Control & Signal Processing Profile
| Category | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | Mark VIe / Speedtronic Control System |
| Product Type | AEPA Analog Input / Control Module |
| Functional Family | Enhanced Protection Architecture (EPA/AEPA) |
| Main Function | Analog signal acquisition & conditioning |
| Input Type | 4–20 mA, ±10 V (system dependent) |
| Channel Capacity | Multi-channel analog input (configuration dependent) |
| Redundancy | TMR-compatible architecture support |
| Communication | IONet / Mark VIe backplane Ethernet |
| Signal Isolation | Channel-to-channel and system isolation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Installation Type | I/O pack rack mounted module |
| Dimensions (H × W × D) | Approx. 10 × 20 × 5 cm |
| Weight | ~0.4–1.2 kg |
The module integrates signal conditioning circuitry, analog-to-digital conversion stages, and diagnostic monitoring logic to ensure high signal integrity in harsh turbine environments.
Recommended Related Models — System Integration Ecosystem
For full Mark VIe system functionality, IS215AEPAH1C is commonly paired with:
- IS215ACLEH1C — Application control layer module
- IS210BPPCH1AD — I/O pack processor board
- IS210AEDBH3ADC — DB bridge interface module
- IS210AEBIH3B — Alternative energy bridge interface module
- IS210AEPSG1B — Power supply module
These components collectively form a layered architecture covering signal acquisition, processing, control execution, and power distribution.
Popular GE Mark VIe Modules — Widely Deployed Field Systems
Within GE turbine control ecosystems, the following modules are commonly used:
- IS210AEBIH2BE — Wind turbine interface module
- IS200VVIBH1C — Vibration monitoring module
- IS200EGDMH1A — Ethernet diagnostic gateway module
- IS200TRLYH1B — Relay output module
- IS200TBAIH1C — Terminal board assembly module
These modules are widely deployed in global energy infrastructure due to long lifecycle stability and strong industrial reliability.
