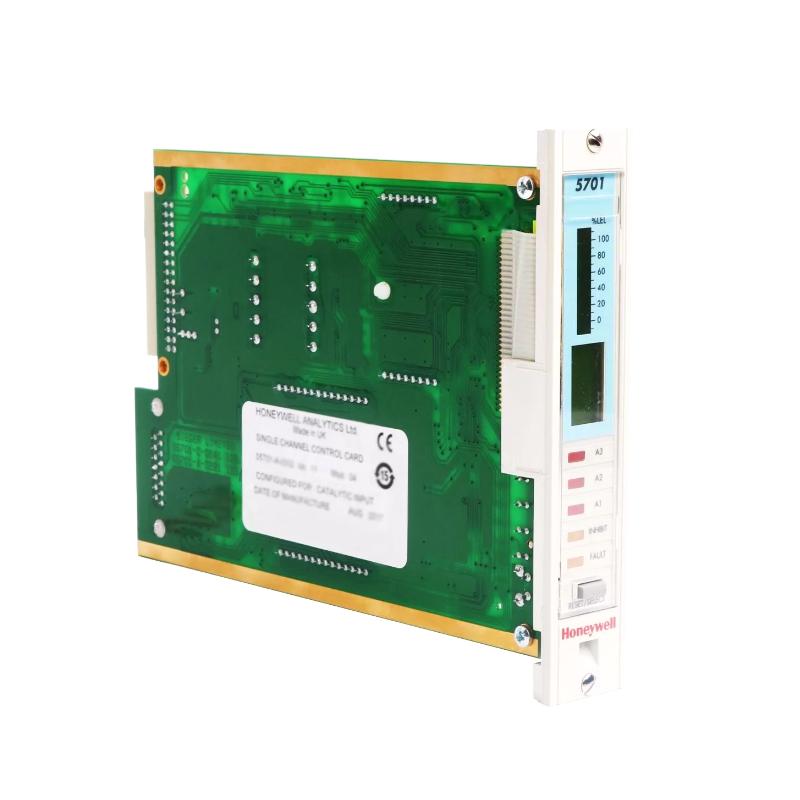

Honeywell 05701-A-0302 faults are often mistaken for sensor or controller failure. Field experience shows most issues stem from backplane contact instability, power ripple, or EMI interference.

Honeywell 05701-A-0302 Fault Symptoms

• Intermittent PID loop oscillation
• False alarms (A1/A2/A3)
• LED Fault or Inhibit status without sensor change
• Delayed analog output response
• Communication errors with redundant controllers

In one chemical plant, repeated false alarms occurred during peak compressor operation. Initial assessment blamed the sensor, but manual measurement confirmed stable process readings.

Field Diagnostic Logic

1. Analog Signal Verification

• Stable 4–20 mA: sensor is healthy
• Fluctuating signal: check wiring and grounding
• Sudden drop to 0 mA: open loop or connector issue

2. Mechanical and Backplane Inspection

• Inspect edge connector seating
• Check for tilt or incomplete insertion
• Verify latch and retention screws

A refinery case found a 0.25 mm misalignment of the card causing voltage spikes and intermittent alarms.

3. Power Rail and EMI Analysis

• Nominal 24 V DC; ripple <100 mV acceptable
• Ripple >300 mV indicates EMI or load issue
• Reroute analog cables away from high-power lines if necessary

Common Field Failure Patterns

• Loose Card Seating: intermittent alarms, loop instability
• EMI Interference: signal spikes when high-current devices operate
• Aged Backplane Contacts: gradual drift over months, cleaned or replaced

Field Recovery Case Study

Scenario: False A2 alarm on a single channel.

Symptoms: Random alarms every 25–30 minutes.

Diagnosis:

• Loop current stable at sensor
• Voltage fluctuation detected at card backplane
• Card slightly loose due to rack vibration

Action:

• Re-seated card and tightened screws
• Cleaned connector contacts
• Added vibration damping

Result: Signal stabilized, false alarms eliminated, ±2% variation maintained.
