Schneider ATS130N2D45LT soft starter installation issues are most commonly caused by incorrect phase connection, improper bypass/contactor coordination, or unstable 24V DC control supply, rather than internal thyristor failure. In the Altivar ATS130 series, this device is a compact 45A motor soft starter designed to reduce inrush current and mechanical stress during motor startup, especially in pumps, fans, compressors, and conveyor systems.

Schneider ATS130N2D45LT Role in Motor Control Architecture

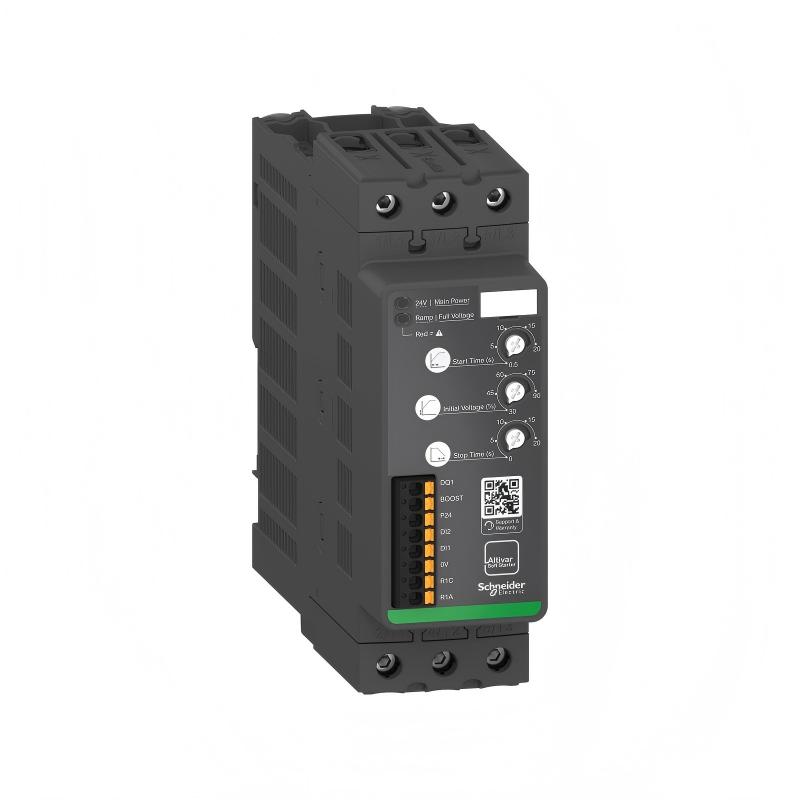

The Schneider ATS130N2D45LT is part of the Altivar ATS130 soft starter family, designed for asynchronous 3-phase motors.

Core functions:

• Soft start / soft stop voltage ramp control
• Inrush current limitation during motor startup
• Mechanical stress reduction on pumps and conveyors
• Internal bypass after acceleration
• Basic motor protection (phase loss, thermal, bypass fault)

Rated parameters confirmed in field documentation:

• 45A rated operational current
• 200–480V AC power supply
• 24V DC control supply ()

In one wastewater treatment plant upgrade, replacing DOL starting with ATS130 reduced pump mechanical shock significantly, eliminating repeated coupling failures.

Installation Conditions (Critical Engineering Requirements)

1. Power Circuit Integrity (Most Critical Step)

• Ensure correct 3-phase sequence (L1/L2/L3)
• Tight terminal torque to avoid overheating
• Verify upstream protection coordination (MCCB + contactor)
• Confirm motor insulation is suitable for reduced voltage starting

Field case: A compressor tripped repeatedly due to reversed phase sequence, causing torque imbalance during ramp-up.

2. Control Supply Stability (24V DC)

• Control voltage must remain stable during start sequence
• Avoid shared supply with solenoids or relay-heavy circuits
• Ensure control wiring is properly fused

A common field issue is control voltage dip during multiple simultaneous motor starts, causing soft starter reset or failed start sequence.

3. Bypass and Contactor Coordination

• External line contactor must match ATS logic
• Ensure correct interlocking between start/stop commands
• Do not bypass soft starter without proper bypass contactor logic

Field observation: improper bypass wiring caused motor to restart in DOL mode, eliminating soft-start protection entirely.

Installation Procedure (Field Engineering Practice)

Step 1: Mechanical Mounting

• Install on DIN rail or backplate
• Maintain vertical orientation for heat dissipation
• Ensure clearance for airflow around unit

Step 2: Power Wiring

• Connect L1/L2/L3 input from supply
• Connect output T1/T2/T3 to motor
• Verify tightness and phase continuity
• Ensure proper earthing connection

Step 3: Control Wiring

• Connect 24V DC control supply
• Wire start/stop inputs according to control logic
• Verify digital input thresholds (PLC compatible level)

Step 4: Initial Configuration

• Set motor rated current (match nameplate 45A range)
• Configure start ramp time (typical 5–20s depending on load)
• Set stop ramp if soft stop required (pumps critical)

Commissioning Strategy (Engineering Logic)

Step 1: No-Load Functional Test

• Start motor without mechanical load
• Observe smooth acceleration curve
• Confirm no abnormal current spikes

Step 2: Loaded Start Test

• Apply real mechanical load
• Monitor inrush current reduction effect
• Check for mechanical vibration reduction

In one pump station, starting current dropped from ~6.5× In to ~3× In after ATS130 commissioning.

Step 3: Thermal and Duty Cycle Validation

• Monitor heatsink temperature
• Verify starts/hour within limit (~35 cycles/hour typical)
• Ensure no overheating under repeated starts
