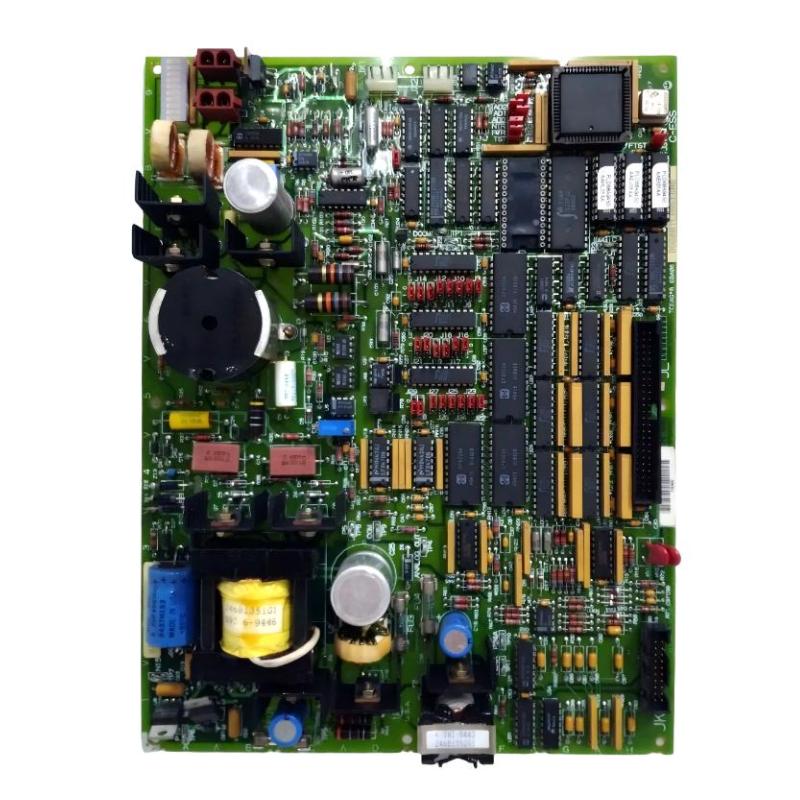

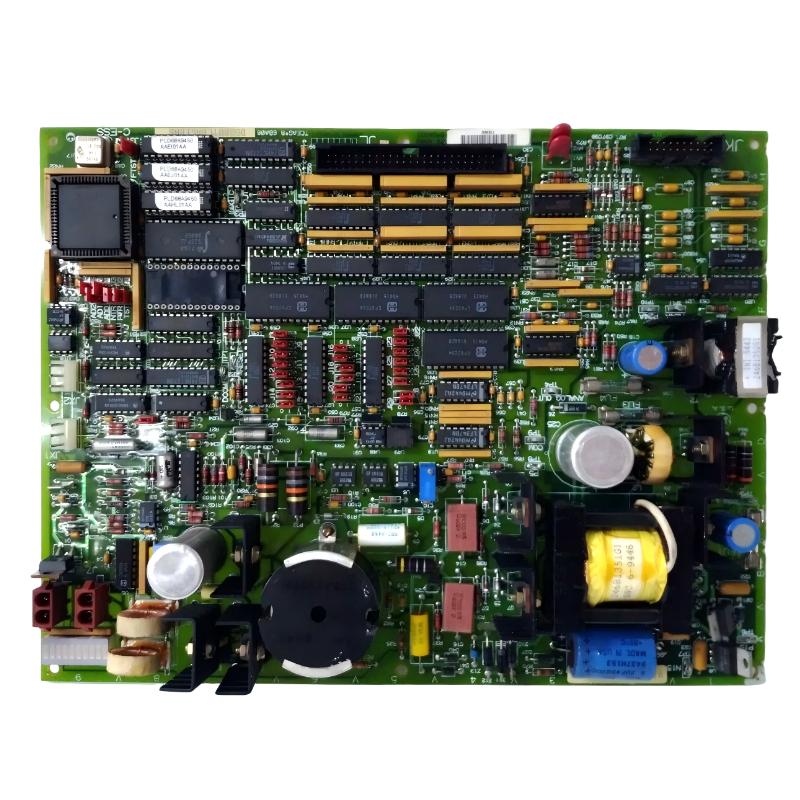

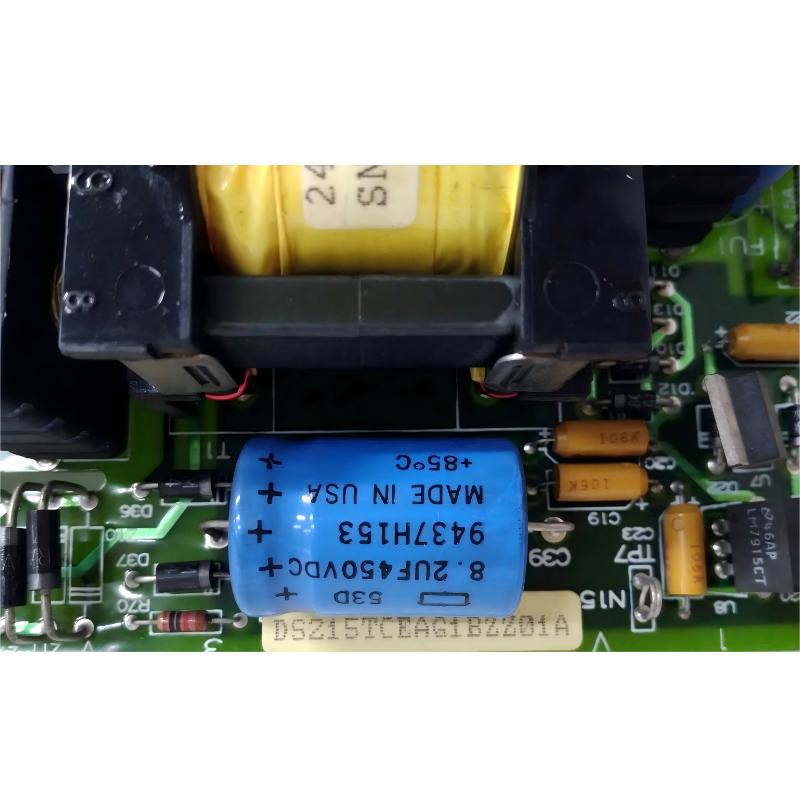

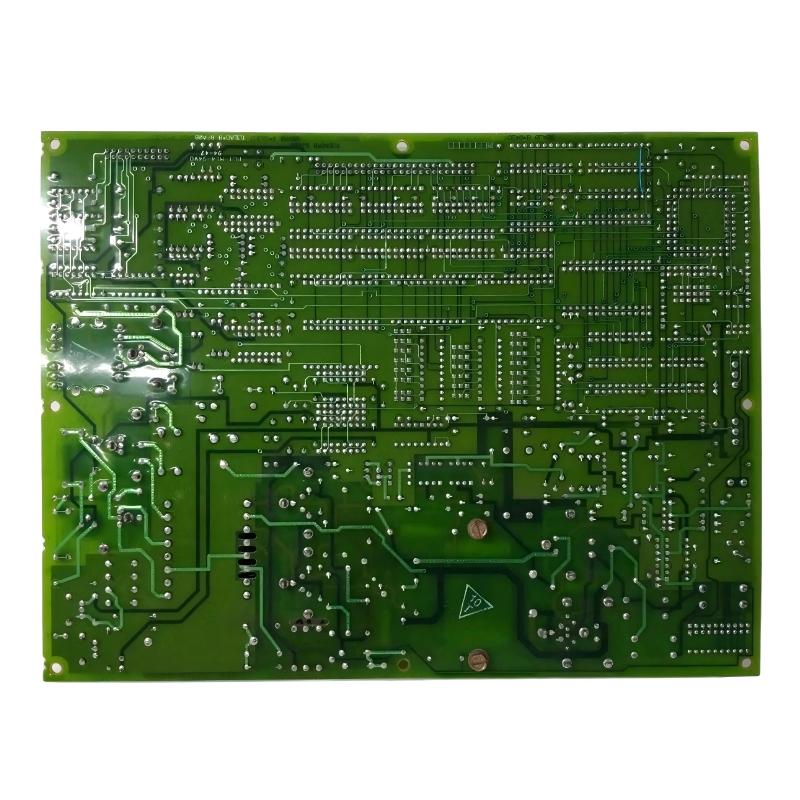

GE DS215TCEAG1BZZ01A DS200TCEAG1BRE Emergency Overspeed Board
GE DS215TCEAG1BZZ01A DS200TCEAG1BRE Emergency Overspeed Board
0.0
Points
Brand:GE Fanuc PLC Item No.:DS215TCEAG1BZZ01A DS200TCEAG1BRE Product Origin:USA Product Dimensions:220 × 160 × 25 mm Product Weight:0.65 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The GE DS215TCEAG1BZZ01A / DS200TCEAG1BRE Emergency Overspeed Board is a critical protection component engineered for the Speedtronic Mark V control platform. Designed to continuously monitor turbine operating conditions, it provides rapid response to overspeed events and other critical protection signals that could threaten equipment integrity.
Technical Specifications
Parameter
Specification
Product Model
DS215TCEAG1BZZ01A / DS200TCEAG1BRE
Manufacturer
GE
Series
Speedtronic Mark V
Product Type
Emergency Overspeed Board
Function
Turbine Overspeed Protection and Monitoring
Processor
Integrated Microprocessor
Memory Type
PROM / EPROM Modules
Dimensions
220 × 160 × 25 mm
Weight
0.65 kg
Recommended Related Models
Model
Product Name
DS200TCTGG1A
Turbine Trip Board
DS200TBCAG1A
Analog I/O Termination Board
DS200RTBAG3A
Relay Terminal Board
DS200TCQCG1A
RST Overflow Board
Popular Related Models
Model
Product Name
DS200SDCCG1AGD
Drive Control Board
DS200DTBBG1ABB
Digital Contact Terminal Board
DS200TCPSG1ARE
Power Supply Board
DS200PCCAG5ACB
Power Connect Card
Applications
• Used in GE Speedtronic Mark V turbine control systems for emergency overspeed protection and monitoring.
• Applied in gas and steam turbine installations requiring rapid shutdown during overspeed conditions.
• Suitable for power generation facilities where equipment protection and operational safety are critical.
• Integrated into turbine protection cores to process overspeed and flame detection signals.
• Provides fast and dependable overspeed detection to help prevent turbine damage.
• Processes critical turbine protection signals for enhanced operational safety.
• Features onboard microprocessor-based control for accurate monitoring functions.
• Designed for seamless integration within GE Mark V control architectures.
• Supports stable and reliable operation in demanding power generation environments.
Technical FAQs
1. What is the primary function of the DS215TCEAG1BZZ01A?
It monitors turbine overspeed conditions and initiates protective shutdown actions when required.
2. Which control system uses this board?
It is designed for GE Speedtronic Mark V turbine control systems.
3. Does the board support flame detection processing?
Yes, it processes flame detection trip signals as part of the turbine protection system.
4. What type of processor is included on the board?
The board utilizes a dedicated microprocessor for protection and monitoring functions.
5. What happens when an overspeed condition is detected?
The board generates a trip command to help safely shut down the turbine system.
6. Is the board used in critical protection applications?
Yes, it is a key component within the turbine protection architecture.
7. Does the board contain configurable hardware settings?
Yes, configuration is supported through onboard jumper arrangements.
8. Can the board communicate with other control modules?
Yes, it interfaces with other Mark V control and protection boards.
9. What industries commonly use this module?
Power generation, energy production, and heavy industrial turbine applications.
10. Why is overspeed protection important?
It helps prevent catastrophic mechanical damage caused by excessive turbine rotational speed.
