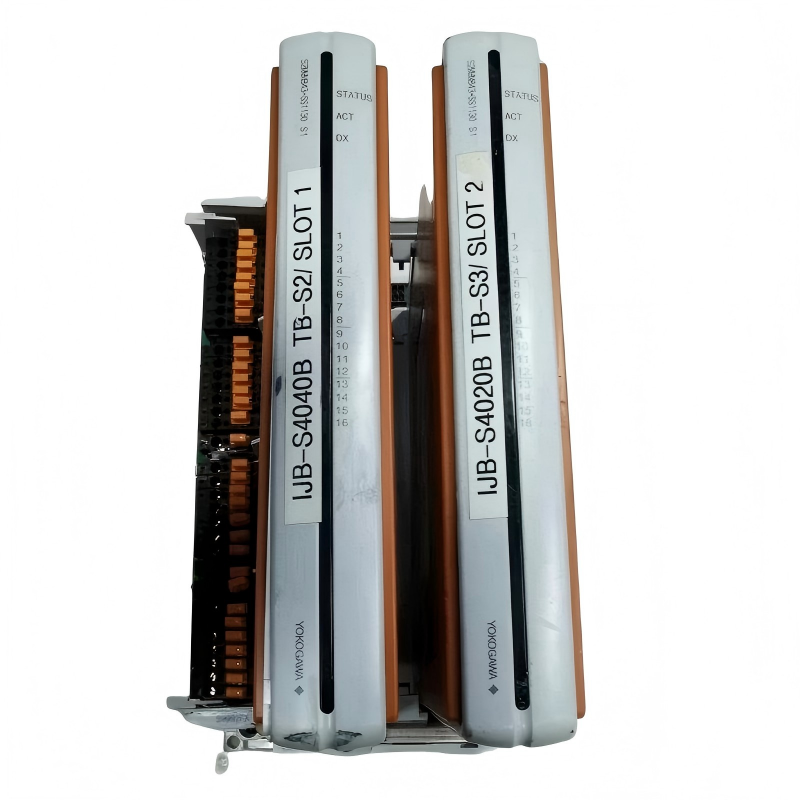

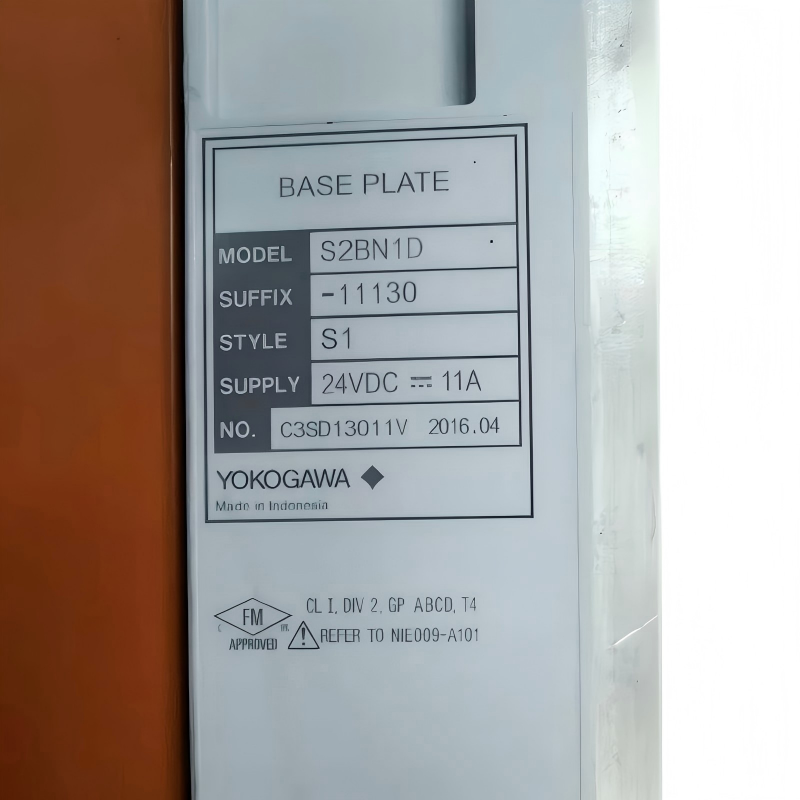

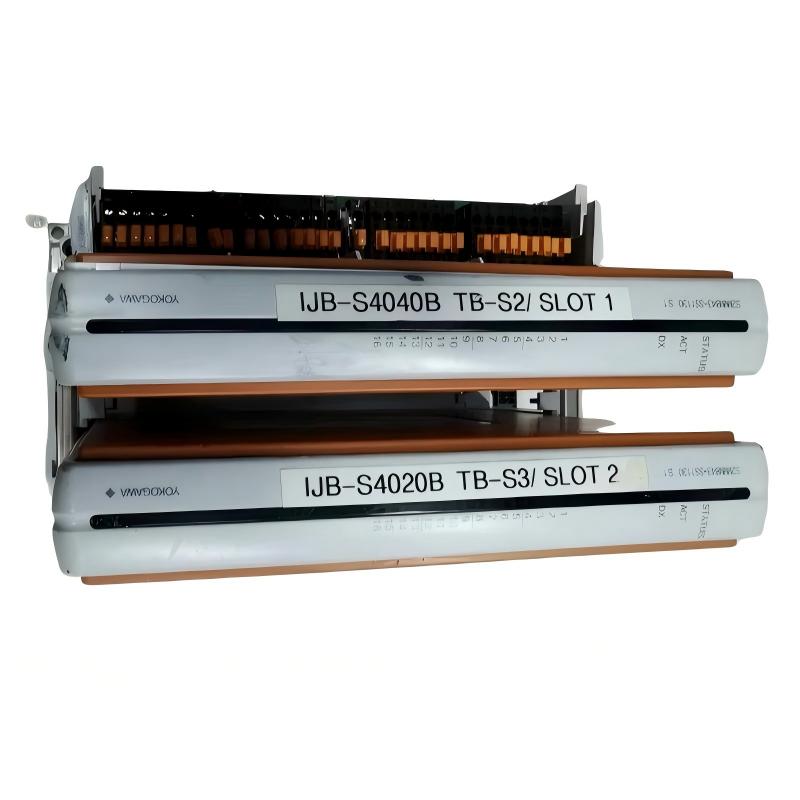

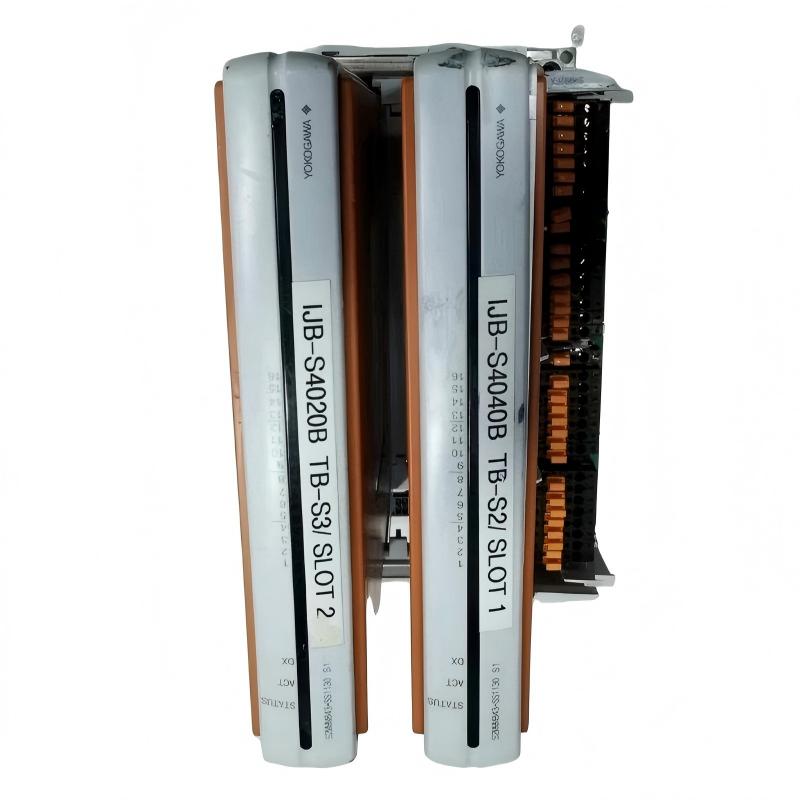

Yokogawa S2BN1D-11130 Base Plate With Disconnect Terminal

Applications

The Yokogawa S2BN1D-11130 Base Plate with Disconnect Terminal is engineered for industrial automation and distributed control systems. It provides a secure and organized mounting platform for power and CPU modules, enabling rapid installation, maintenance, and module replacement. Ideal for chemical plants, refineries, and process industries where safety and operational reliability are paramount.

Advantages

• Integrated Disconnect Terminals: Simplifies wiring and enhances operational safety.
• Rugged Construction: Built to endure harsh industrial environments including vibration and temperature variation.
• Optimized Layout: Space-efficient design allows multiple modules to be installed neatly.
• Quick Maintenance: Facilitates fast module replacement without system shutdown.
• Enhanced Safety: Electrically isolated terminals reduce risk of accidental shorts or faults.

Technical FAQs

1. What type of modules are compatible with this base plate?
   Compatible with Yokogawa CPU, power, and communication modules in the S2 series.
2. Does it support high-current applications?
   Yes, the disconnect terminals are rated for up to 10 A continuous current.
3. Is it suitable for vibration-prone environments?
   Yes, the base plate is engineered to withstand industrial vibrations without loosening or damage.
4. How does it improve maintenance efficiency?
   Modules can be safely disconnected and replaced without affecting other connected units.
5. Are there grounding provisions?
   Yes, built-in grounding points ensure safe installation and operation.
6. What environmental conditions can it handle?
   Operational temperature range: -20°C to 60°C, resistant to humidity up to 95% non-condensing.
7. Is the material corrosion-resistant?
   Yes, the plate is made of coated metal to resist corrosion in industrial environments.
8. Can multiple base plates be linked together?
   Yes, designed for modular installation to expand system capacity.
9. Does it include mounting hardware?
   Yes, all standard mounting screws and supports are included for easy installation.
10. Is it compatible with safety interlocks?
    Yes, disconnect terminals can be integrated with system safety interlocks to ensure compliance with industrial standards.
