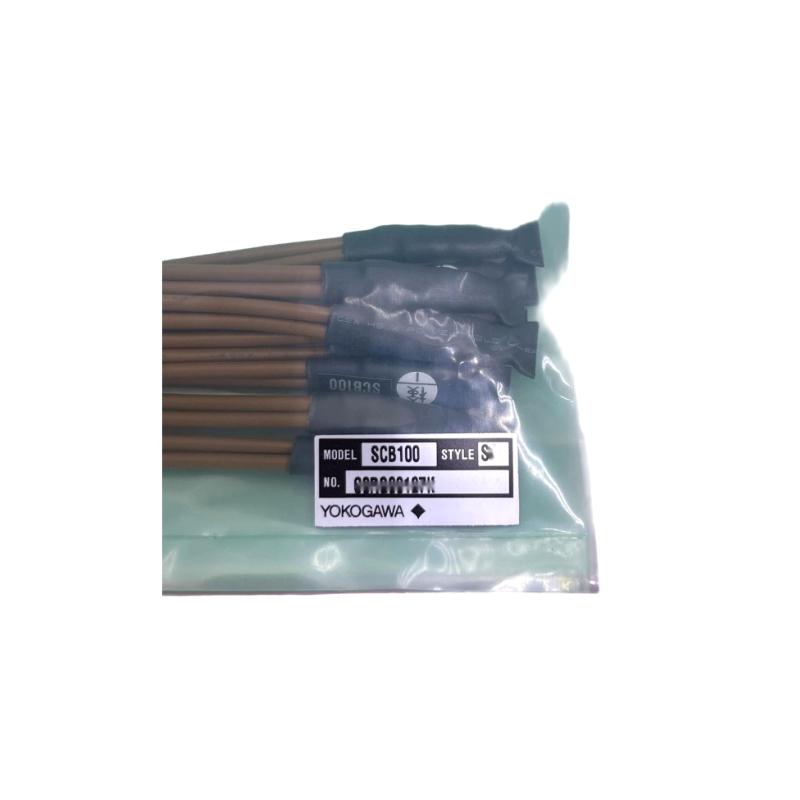

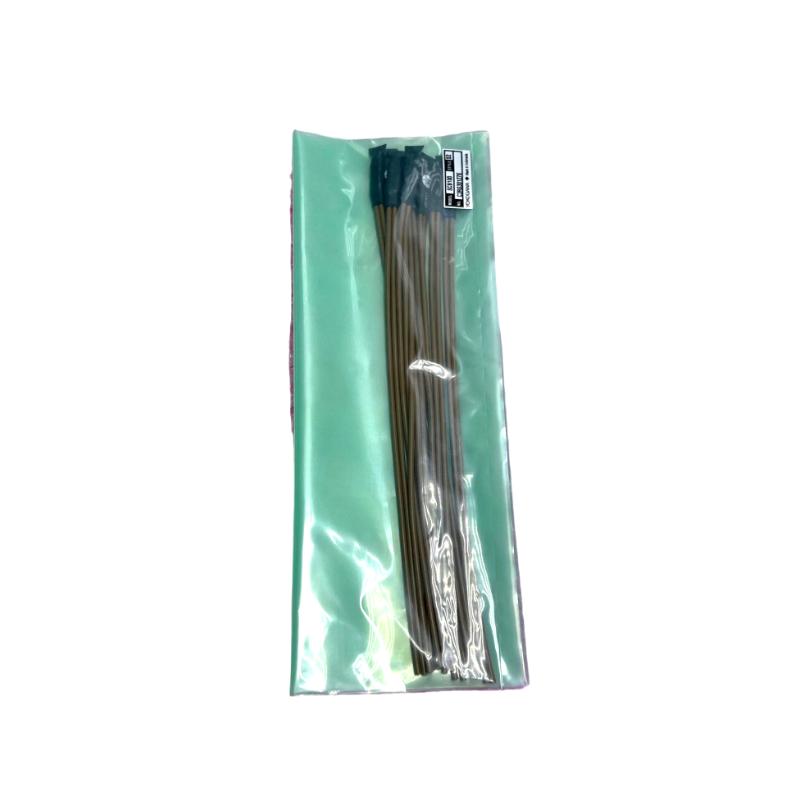

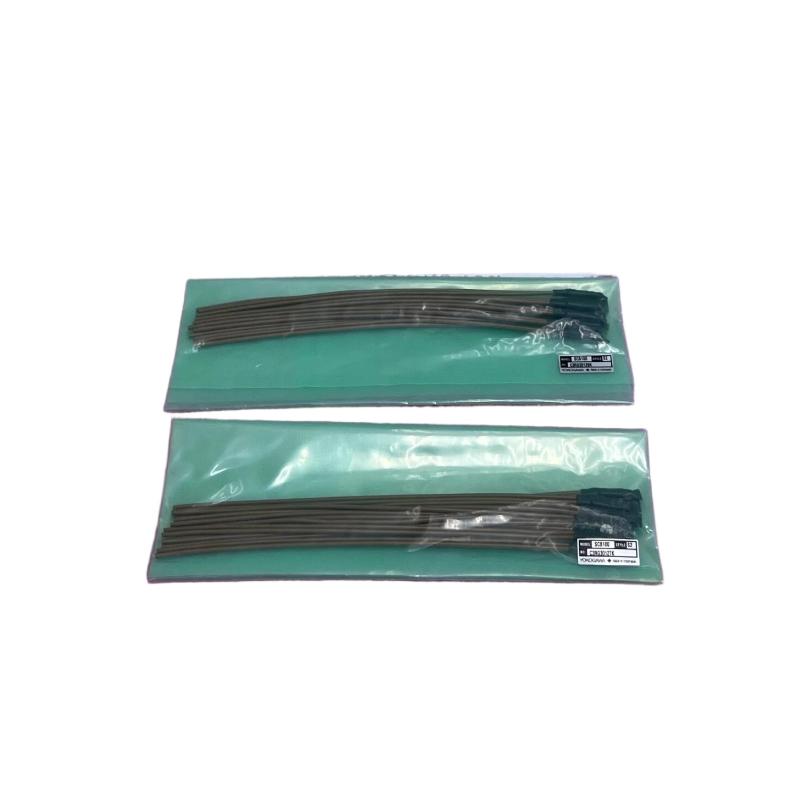

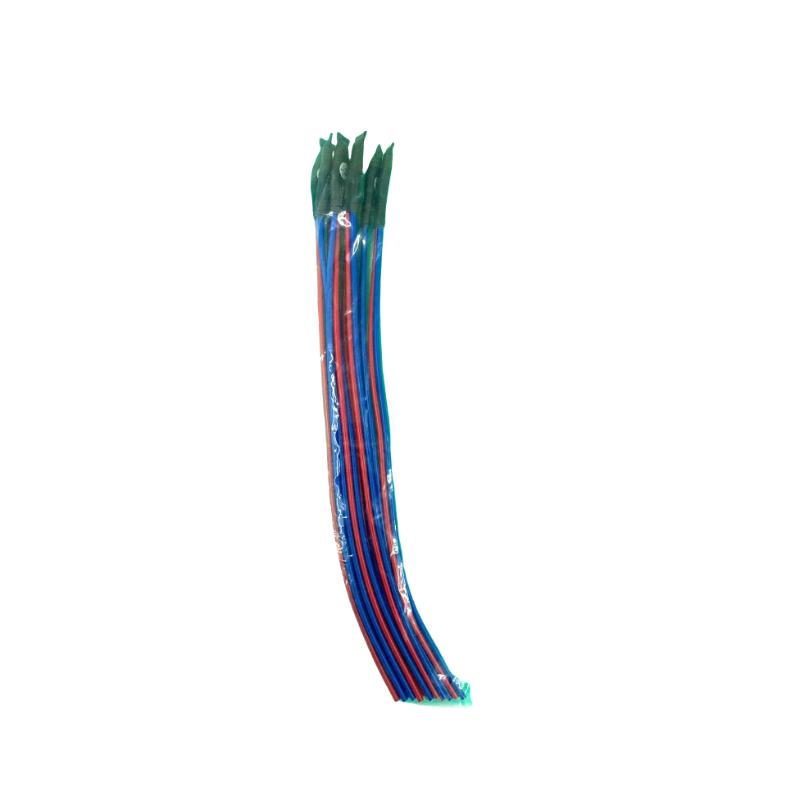

Yokogawa SCB100-S0 Digital Input Wiring Check Adapter

Applications

The Yokogawa SCB100-S0 Digital Input Wiring Check Adapter is designed for rapid testing and verification of digital input circuits in industrial automation systems. Ideal for commissioning, maintenance, and troubleshooting of distributed control systems (DCS), it ensures that wiring integrity is verified without affecting live operations.

Advantages

• Fast and Accurate Testing: Quickly identifies wiring issues in digital input circuits.
• Compact and Lightweight: Easily handled in tight panel spaces.
• Durable Construction: Engineered to withstand frequent use in industrial environments.
• Safe Operation: Reduces risk of incorrect wiring during maintenance.
• Plug-and-Play: No additional setup required, ready for immediate use.

Technical FAQs

1. Which digital input modules are compatible?
   Compatible with Yokogawa S-series digital input modules and SCB expansion units.
2. Does it require an external power source?
   No, the adapter draws minimal power directly from the module being tested.
3. Can it detect open or shorted circuits?
   Yes, the adapter identifies both open and short circuits in digital input wiring.
4. Is it suitable for high-voltage digital inputs?
   Rated for standard industrial digital input voltage ranges, typically 24 V DC.
5. How is the adapter connected?
   Connects directly to the digital input terminals via plug-in interface.
6. Does it provide a visual indication of wiring status?
   Yes, LED indicators show correct wiring and fault conditions.
7. Can it be used during live operations?
   Yes, designed for safe testing without interrupting system operation.
8. What environmental conditions are supported?
   Fully operational between 0°C and 50°C, resistant to humidity up to 95% non-condensing.
9. Is it reusable?
   Yes, designed for repeated testing cycles with long operational life.
10. Does it require calibration?
    No, the adapter is factory-calibrated and maintenance-free.
