Introduction

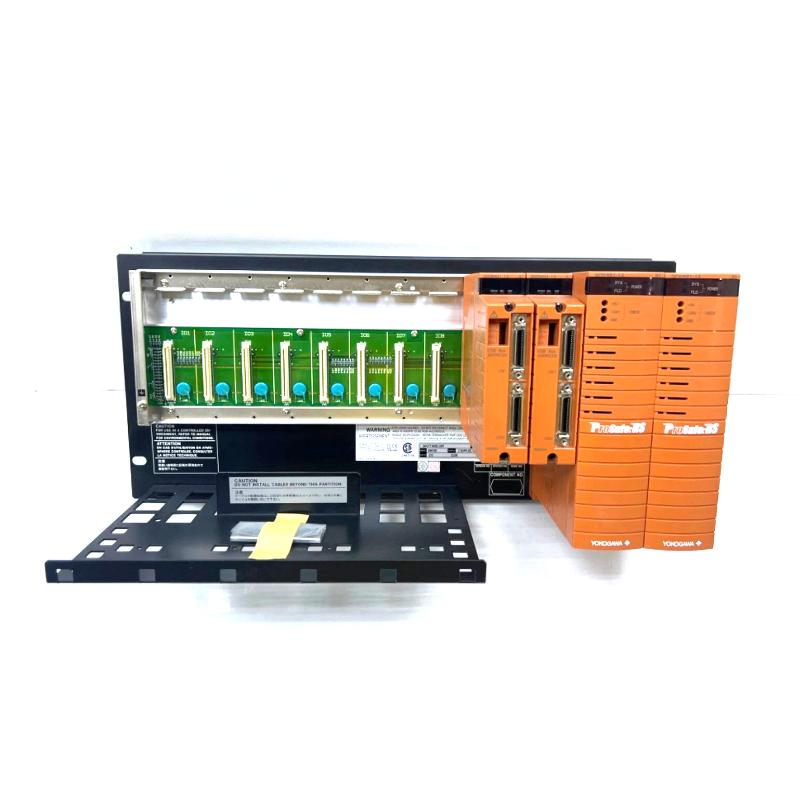

The Yokogawa SNB10D-243/C2UN Safety Node Unit delivers reliable, high-performance safety control for industrial automation systems. With dual-node redundancy, real-time diagnostics, and compliance with SIL standards, it ensures system continuity, process protection, and operational safety even under critical conditions. This module is a vital component for modern safety instrumented systems (SIS).

Technical Specifications

Specification	Details
Safety Compliance	IEC 61508, SIL 2/3
Communication Protocols	FOUNDATION Fieldbus, HART, Yokogawa proprietary
Dimensions	482.6 mm × 221.5 mm × 205 mm
Weight	5.9 kg / 13.01 lb
Operating Temperature	0°C to 55°C
Cooling Method	Passive
Construction	Industrial-grade metal enclosure
Diagnostics	Built-in fault and status monitoring

Applications

The Yokogawa SNB10D-243/C2UN Safety Node Unit is engineered for mission-critical industrial automation applications, including chemical, petrochemical, and oil & gas facilities. It provides high-reliability safety monitoring, emergency shutdown capabilities, and seamless integration with distributed control systems (DCS), ensuring operational safety under all conditions.

Advantages

Enhanced Redundancy: Supports dual-node configurations for uninterrupted safety operation.
High Reliability: Designed for continuous operation in harsh industrial environments.
Advanced Safety Functions: Monitors emergency shutdown circuits, interlocks, and alarms.
Modular & Expandable: Easily integrates into existing safety control networks.
Robust Diagnostics: Real-time monitoring of system faults and operational status.

Technical FAQs

Which safety standards does this unit meet?
Compliant with IEC 61508 and SIL 2/3 standards for functional safety.
Can it operate independently of the DCS?
Yes, it provides autonomous safety monitoring and control when needed.
Is redundant configuration supported?
Yes, dual-unit setups are supported for fail-safe operation.
How does the unit detect faults?
Integrated diagnostics detect wiring faults, module failures, and communication issues.
Which communication protocols are compatible?
Supports FOUNDATION Fieldbus, HART, and Yokogawa proprietary protocols.
Can it handle high-vibration environments?
Yes, designed to withstand vibrations up to 5G in industrial settings.
What is the operating temperature range?
Fully operational between 0°C and 55°C.
Does it provide real-time status updates?
Yes, continuous monitoring and reporting of safety loops and system health.
How is thermal management achieved?
Passive heat dissipation with optimized internal airflow ensures stable performance.
What maintenance is required?
Minimal maintenance required; routine inspection recommended every 12 months.
