Introduction

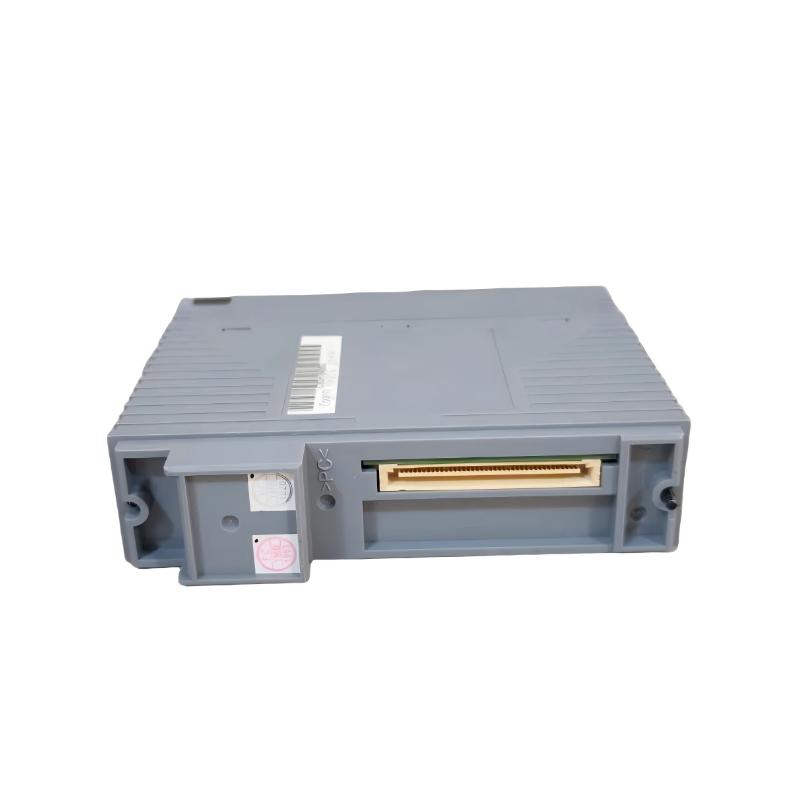

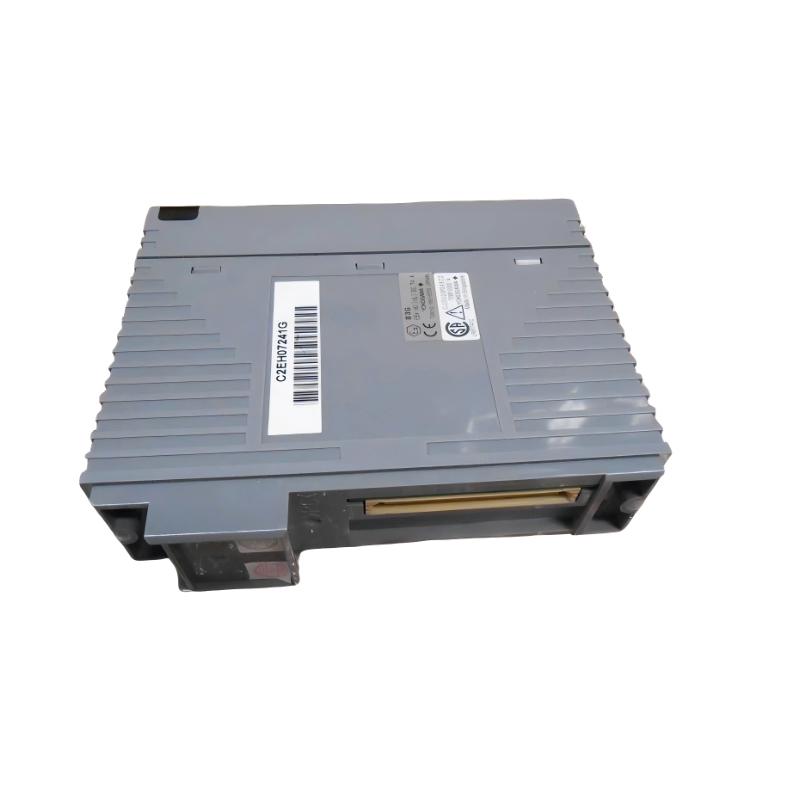

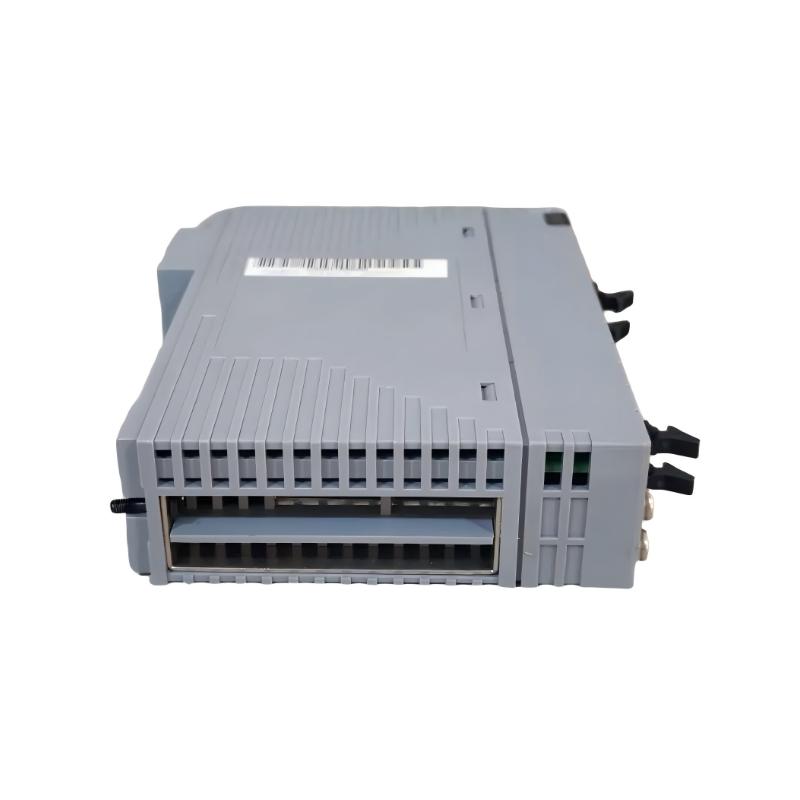

The Yokogawa SR1220E2 Input Module is a reliable, compact, and precise solution for industrial signal acquisition. It ensures accurate data collection from field instruments, enabling operators to maintain efficient process control. Its integration capabilities and diagnostic features make it a valuable component for any DCS or automation system where signal fidelity and operational reliability are critical.

Technical Specifications

Specification	Details
Input Type	Analog (4–20 mA, 0–10 V), Digital
Compatible Systems	Yokogawa SR Series DCS
Dimensions	120 mm × 90 mm × 35 mm
Weight	0.45 kg / 0.99 lb
Operating Temperature	0°C to 55°C
Mounting Type	DIN-rail or Rack Mount
Diagnostics	Signal integrity, open/short detection
Power Supply	Supplied via SR series bus
Cooling Method	Passive

Applications

The Yokogawa SR1220E2 Input Module is designed to collect and process analog and digital signals in industrial automation and process control systems. It is ideal for data acquisition, monitoring of field instruments, and integration into distributed control systems (DCS) for applications such as chemical plants, water treatment, power generation, and manufacturing.

Advantages

High Accuracy: Captures analog and digital signals with precise resolution.
Compact Design: Saves space within control cabinets, simplifying installation.
Reliable Operation: Industrial-grade components ensure continuous, stable performance.
Seamless Integration: Works with Yokogawa SR series modules and other compatible DCS components.
Quick Installation: Standardized connectors and mounting allow fast deployment.
Diagnostics Support: Provides error detection and status monitoring for easier troubleshooting.

Technical FAQs

What signal types does this module support?
Supports standard analog inputs (4–20 mA, 0–10 V) and digital input signals.
Is the module hot-swappable?
No, the module requires power-down for safe installation or removal.
How is signal integrity maintained?
Designed with shielding and noise rejection features to ensure accurate readings.
Does it support fault detection?
Yes, includes diagnostic functions to detect open circuits, shorts, and signal anomalies.
Can it operate in high-temperature environments?
Rated for operation between 0°C and 55°C.
What is the module’s communication interface?
Communicates via Yokogawa SR series bus for seamless integration with DCS.
Is it compatible with legacy SR modules?
Yes, backward-compatible with SR1000 and SR1200 series modules.
Does it require external power?
No, power is supplied through the SR series bus system.
How is the module mounted?
Din-rail or standard rack mounting, depending on cabinet configuration.
Can it provide real-time monitoring?
Yes, continuous signal updates ensure accurate process control and monitoring.
