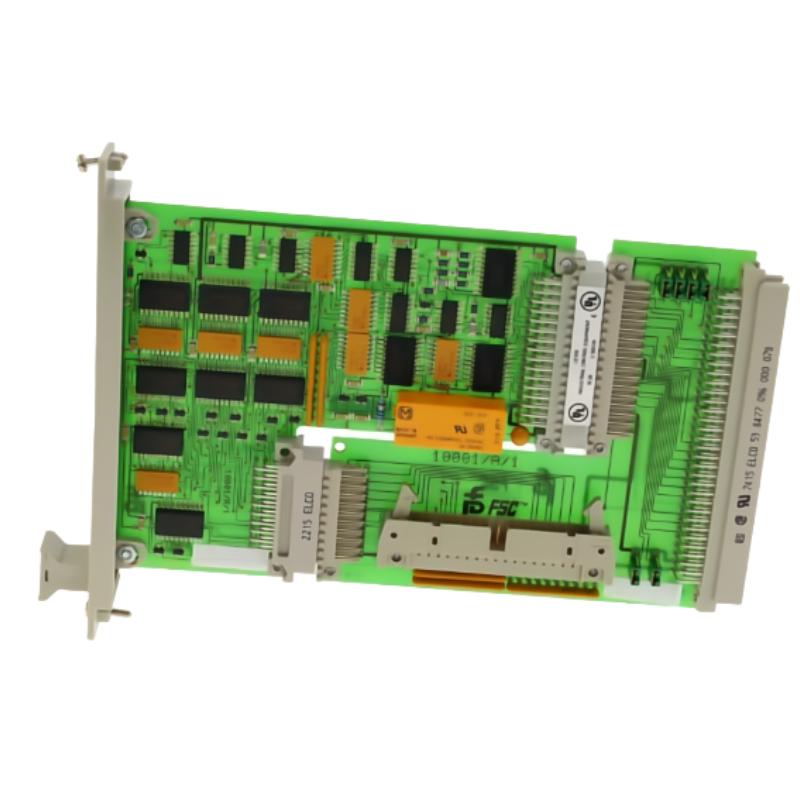

Honeywell 10001/R/1 faults are often misdiagnosed as CPU or I/O module failures. Field evidence shows most issues originate from mechanical loosening, jumper misconfiguration, or vertical bus signal degradation.

Fault Symptoms in FSC Systems

• Random I/O rack disappearance
• Intermittent channel flickering
• CP fails to detect HBD racks
• System-wide communication alarms
• Synchronization loss during load changes

In one refinery, multiple racks dropped simultaneously during startup, initially suspected as processor failure.

Field Diagnostic Method

1. Mechanical Integrity Check

• Verify 96-pin connector torque
• Inspect flat cable routing
• Check vibration impact on rack mounting

A 0.2 mm shift in connector alignment was enough to cause periodic bus dropout.

2. Jumper Verification

• Confirm unique VBD addressing
• Check CP assignment consistency
• Eliminate duplicate configuration

Duplicate addressing caused overlapping rack mapping in one multi-rack system.

3. Electrical & Bus Stability Check

• Verify 5 V DC stability
• Ensure ripple <50 mV p-p
• Inspect grounding integrity

Voltage ripple above threshold leads to synchronization jitter across racks.

Common Field Failure Modes

Loose Mechanical Connection (Most Critical)

• Symptoms: intermittent I/O loss
• Fix: re-torque 96-pin connector

Incorrect Addressing

• Symptoms: rack mapping conflict
• Fix: correct jumper configuration

Vertical Bus Signal Instability

• Symptoms: system-wide communication fault
• Fix: cable replacement or rerouting

Field Recovery Case Study

Scenario: Multiple I/O racks randomly disconnected.

Diagnosis:

• CPU stable
• Vertical bus errors during compressor startup
• One VBD connector found under-torqued

Corrective Actions:

• Re-tightened all VBD connectors
• Verified jumper configuration
• Improved grounding separation

Result:
Full system restored, stable operation achieved over long-term runtime.
