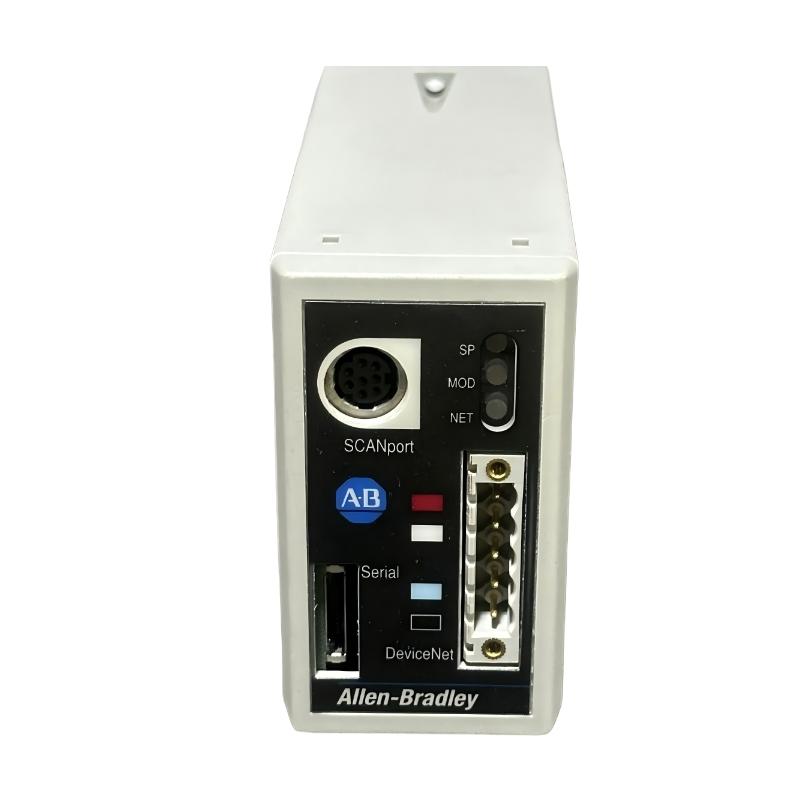

Allen-Bradley 1203-GU6 faults are often misdiagnosed as PLC or drive failures. Field evidence shows most issues originate from network configuration errors, SCANport cable degradation, or power instability, rather than module hardware failure.

Fault Symptoms in Field Operation

• DeviceNet node not visible in scanner
• Intermittent drive communication loss
• Parameter read/write failure
• SCANport device randomly disconnecting
• Full network timeout under load

In one retrofit plant, multiple drives dropped offline intermittently during production peaks.

Field Diagnostic Approach

1. DeviceNet Network Integrity

• Verify MAC ID uniqueness
• Check CAN wiring polarity
• Inspect termination resistor placement
• Confirm trunk cable continuity

Even a single incorrect termination can destabilize the entire network.

2. SCANport Cable Inspection

• Check mini-DIN connector seating
• Inspect shielding continuity
• Verify cable routing away from VFD output lines

Field case: replacing a damaged SCANport cable restored stable drive diagnostics immediately.

3. Power Supply Stability

• Check 24V DC under load conditions
• Verify voltage dip during motor startup
• Ensure isolated power from inductive loads

Voltage instability often appears as “random communication loss”.

Common Field Failure Modes

DeviceNet Address Conflict (Critical)

• Symptoms: node offline or duplicated identity
• Fix: assign unique MAC ID

SCANport Communication Noise

• Symptoms: intermittent parameter loss
• Fix: improve shielding and cable routing

Power Drop During Load Events

• Symptoms: module resets or disconnects
• Fix: stabilize DC supply or separate load groups

Field Recovery Case Study

Scenario: Drive parameters not accessible from PLC via DeviceNet.

Diagnosis:

• 1203-GU6 node intermittently dropped
• SCANport cable routed alongside inverter output cable
• Incorrect termination resistor installed

Corrective Actions:

• Rewired DeviceNet trunk with proper termination
• Rerouted SCANport cable away from power wiring
• Replaced damaged SCANport cable

Result:
Stable communication restored; full drive diagnostics available continuously.
