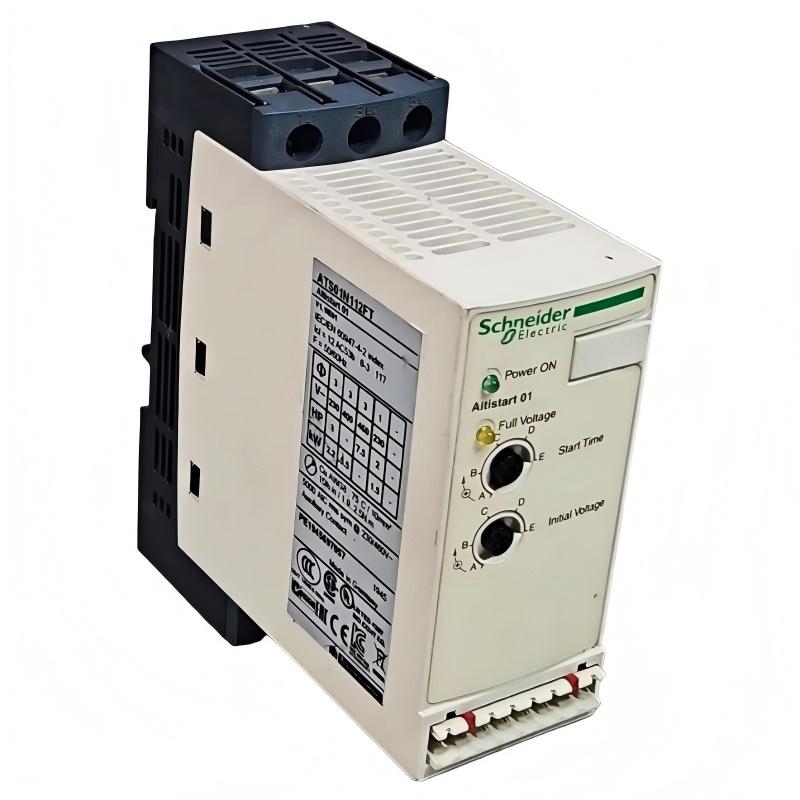

Schneider ATS01N112FT faults are frequently misdiagnosed as motor or PLC failures. Field experience shows most issues originate from wiring errors, incorrect load sizing, or control instability, rather than internal device failure.

Fault Symptoms in Field Operation

• Motor does not start after command
• Immediate overload or trip during start
• Excessive start time or stalled acceleration
• Random restart failure
• Thermal overload alarm under normal load

In one HVAC system, repeated overload trips were caused by mechanical blockage in the fan housing, not electrical failure.

Field Diagnostic Approach

1. Power Input Verification

• Check all three phases voltage stability
• Confirm correct phase sequence
• Inspect terminal tightness and discoloration

Phase imbalance is a frequent hidden cause of start failure.

2. Control Signal Check

• Verify PLC start command output
• Confirm control voltage reaches ATS terminals
• Inspect input wiring for loose connection

A loose control terminal caused intermittent “start accepted but no output” condition in a conveyor system.

3. Mechanical Load Inspection

• Check motor shaft free rotation
• Inspect pump blockage or valve restriction
• Verify coupling integrity

In many real cases, “electrical faults” are actually mechanical overload conditions.

Common Failure Modes

Phase Loss or Wiring Error (Most Critical)

• Symptoms: no start or immediate trip
• Fix: correct wiring and phase sequence

Control Voltage Instability

• Symptoms: random start failure
• Fix: stabilize 24V DC supply or isolate control circuit

Overload Due to Mechanical Resistance

• Symptoms: trip during ramp-up
• Fix: reduce load or extend ramp time

Field Recovery Case Study

Scenario: Pump motor repeatedly tripped during startup.

Diagnosis:

• Phase L3 loose terminal connection
• Control signal stable
• Motor mechanically healthy but partially loaded

Corrective Actions:

• Re-terminated power wiring
• Tightened all phase terminals
• Verified balanced voltage supply

Result:
Stable soft start restored with reduced inrush current and no further trips.
